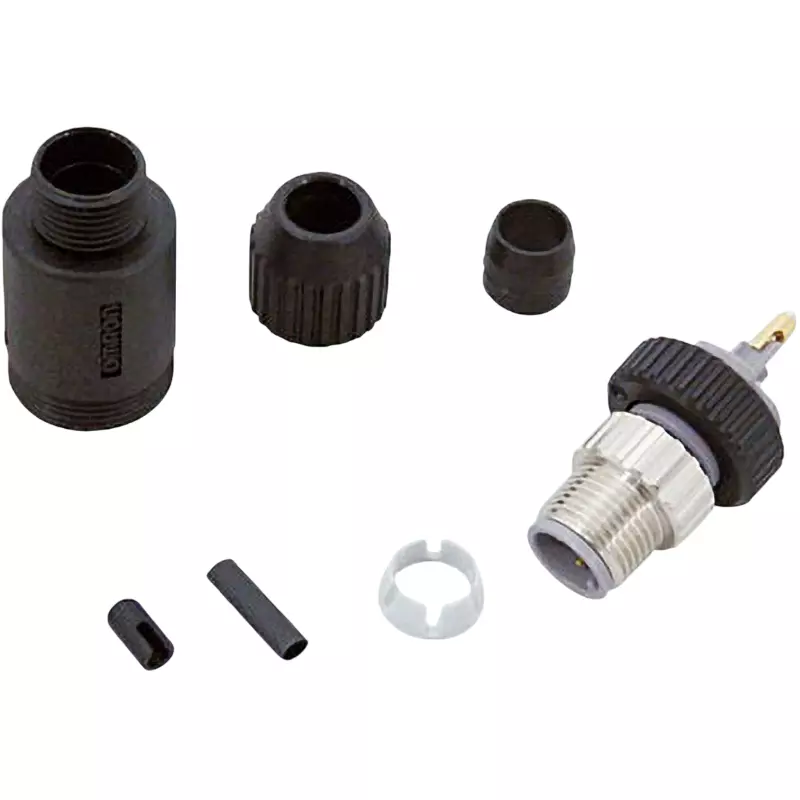

| Type of Product | Round Waterproof Connector Assembled Connector Plug |
| Model No | XS2G-D5S7 |
| Withstand Voltage | AC1500 (Leakage current at connector: 1mA or less) |
| Material | Contact/brass Fixtures/brass Contact block/PBT resin (UL94V-O) O-ring/rubber Cover/PBT resin (UL94V-O) Cap/PBT resin (UL94V-O) Cable clamp/PA resin (UL94V-O) Contact clamp/PBT resin (UL94V-O) Lock spring/LCP resin (UL94V-O) waterproof bushing/rubber ring/steel |
Type of Product |
Round Waterproof Connector Assembled Connector Plug |
Model No |
XS2G-D5S7 |
Withstand Voltage |
AC1500 (Leakage current at connector: 1mA or less) |
Material |
Contact/brass Fixtures/brass Contact block/PBT resin (UL94V-O) O-ring/rubber Cover/PBT resin (UL94V-O) Cap/PBT resin (UL94V-O) Cable clamp/PA resin (UL94V-O) Contact clamp/PBT resin (UL94V-O) Lock spring/LCP resin (UL94V-O) waterproof bushing/rubber ring/steel |
Type |
(Crimp Type/Solder Type) |
Rated Voltage (V) |
AC/DC 250 V |
Monotaro ID |
39107047 |
Rated Current (A) |
4 |
No. of Pole |
5 |
Surface Treatment |
Contact/Ni base gold plating 0.4m Fixture/Ni plating |
Color |
Contact block / light gray |
Protection Class |
IP67(IEC529) |
Series |
XS2 Series |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to 70 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply |
For DC |
Category |
Adaptors Plugs & socket |
