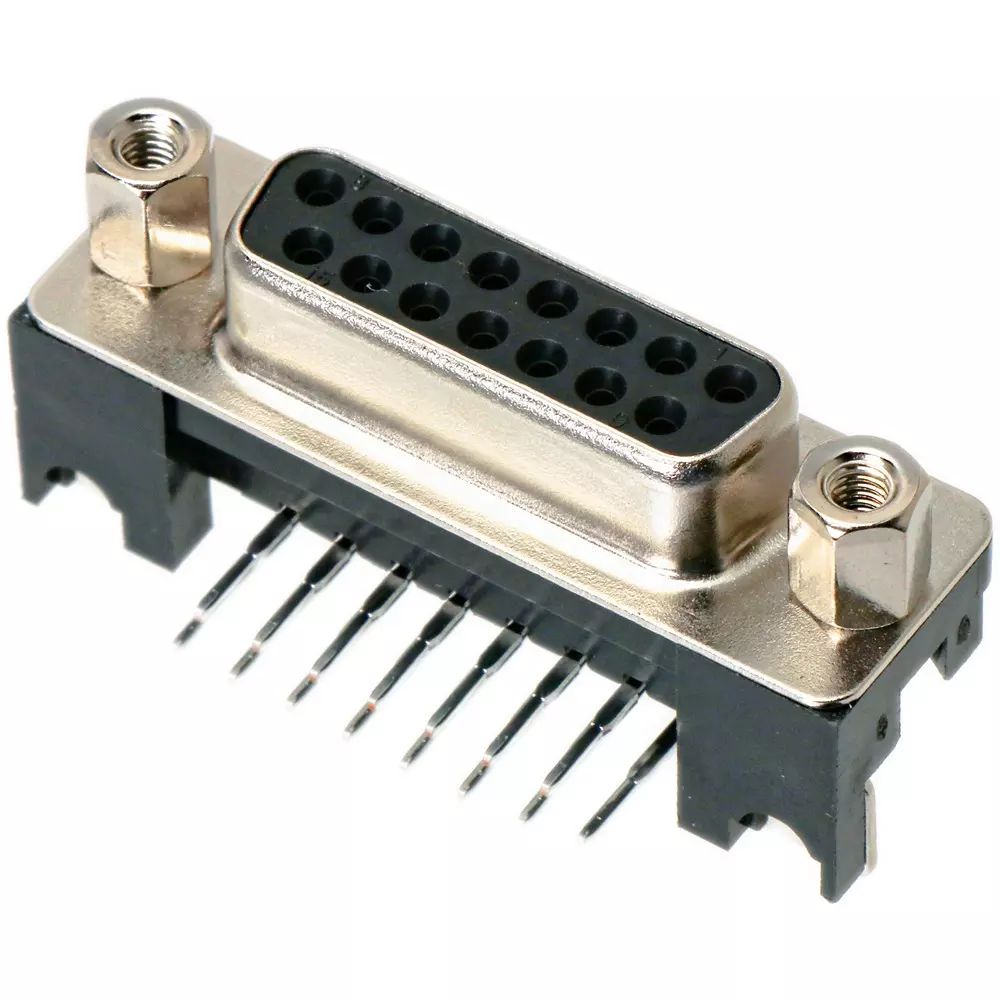

| Type of Product | D-Sub Connector Socket |
| Model No | XM3B-1522-111 |
| Total Insertion Force | 15x3.33N or less |
| Withstand Voltage | 1000 VAC, 1 min (leakage current 1 mA or less) |
Type of Product |
D-Sub Connector Socket |
Model No |
XM3B-1522-111 |
Total Insertion Force |
15x3.33N or less |
Withstand Voltage |
1000 VAC, 1 min (leakage current 1 mA or less) |
Rated Voltage (V) |
AC 300 |
Monotaro ID |
8594433 |
Rated Current (A) |
5 |
Standard |
RoHS directive |
No. of Pole |
15 |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Shape |
Socket Dip L-type terminal |
Shielding Effect (Electric Field Method) |
Panel mounting: 25 dB or more (30 to 900 MHz)<br> Board mounting: 20 dB or more (30 to 300 MHz) |
Series |
XM3B Series |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Fixing tool (XM2Z-0011 (mm screw M2.6x0.45)), tap hole grounding bracket |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Terminal Type |
L-Shaped Terminal |
Material (Contact Connection Part) |
Phosphor bronze |
Dimension A (Φmm) |
φ39.1 mm |
Manufacturer Part Number |
XM3B-1522-111 |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing in the bass) |
Contact Resistance (ohm) |
15 or less (20mV or less, 100mA or less) |
Dimension B (Φmm) |
φ33.32 mm |
Dimension C |
24.65 mm |
Dimension d |
19.18 mm |
Dimension F (Φmm) |
φ2.74 mm |
Dimension E (Φmm) |
φ16.44 mm |
