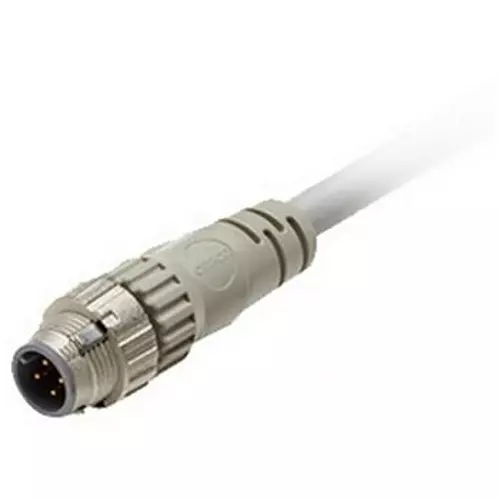

| Type of Product | Round Waterproof Connector |
| Model No | XS5H-D421-A80-F |
| Type | For DC |
| Rated Voltage (V) | DC250 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Round Waterproof Connector |
Model No |
XS5H-D421-A80-F |
Type |
For DC |
Rated Voltage (V) |
DC250 |
Monotaro ID |
39108167 |
Rated Current (A) |
4 |
No. of Pole |
4 poles |
Shape |
Mating part: For DC |
Lock Strength |
Tensile: 100N / 15s, rotation: 1N ・ m / 15s |
Cover Material |
Polyester elastomer |
Protection Class |
IP67(IEC60529) |
Cable Length (m) |
0.3 |
Connector |
One side connector |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to +70℃ |
Import Country |
Direct Import from Japan |
Cable Direction |
Straight |
Cable |
Flame-retardant, PVC robot cable |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Fixing Type |
M12 Smart Click |
Cable Holding Strength (N/15s) |
100 (Cable diameter Φ6 mm) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
1000 mohm or more (at 500 V DC) |
Contact Resistance (ohm) |
(Connector part) 40 or less (20mV or less, 100mA or less) |
Bracket Material |
(Nail) SUS |
O-Ring Material |
Rubber |
