| Type of Product | Half Pitch Connector |
| Model No | XH4A-6031-2A |
| Total Insertion Force | Number of polesx1.47N or less |
| Rated Voltage (V) | AC125 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Half Pitch Connector |
Model No |
XH4A-6031-2A |
Total Insertion Force |
Number of polesx1.47N or less |
Rated Voltage (V) |
AC125 |
Total Removal Force |
Number of polesx0.15 or more |
Monotaro ID |
39104581 |
Rated Current (A) |
0.5 |
Standard |
RoHS directive, UL standard (File No.E103202) |
No. of Pole |
60 |
Housing Material |
PPS resin with glass (UL94V-0) / Black |
Contact Material |
(Contact part) Phosphor bronze / nickel base Gold plating (0.15 μm), (Terminal part) Phosphor bronze / nickel base Gold flash plating |
Insertion / Removal Durability (Times) |
50 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
Dip straight terminal with locking pin (+ 2 mm type) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pin Material |
Phosphor bronze / tin plating |
Part No |
64-3399-50 |
Withstand voltage (V / min) |
AC650, 1 (leakage current 1mA or less) |

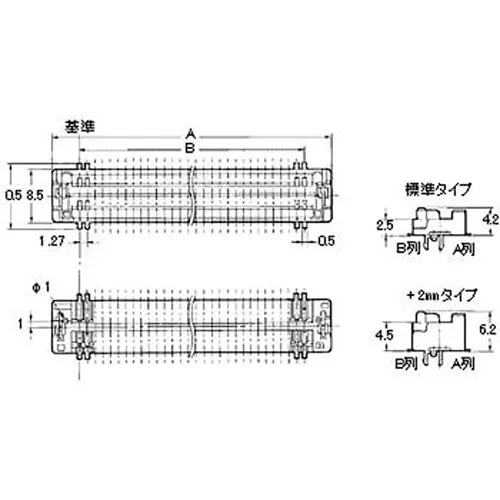

Dimension A (Φmm) |
45.43 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
10³ mohm or more (at 500 V DC) |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing at low temperatures) |
Contact Resistance (ohm) |
30 or less (at 20 mV or less, 100 mA or less) Depends on mating between XH4A-@@31 units |
Dimension B (Φmm) |
36.83 |
Dimension C |
41.33 mm |
Locator Material |
Glass-filled PBT resin (UL94V-0) / Black |
