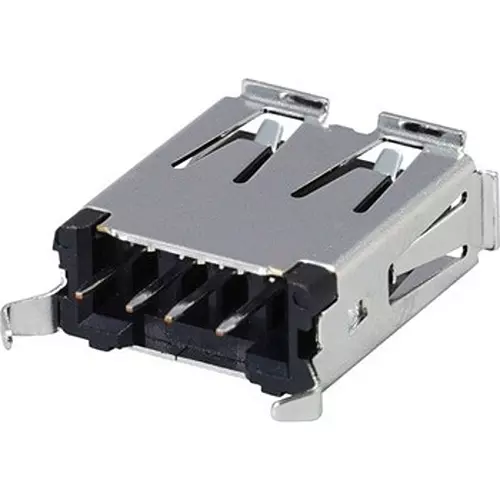

| Type of Product | USb Connector |
| Model No | XM7A-0441 |
| Total Insertion Force | 35.3N or less |
| Withstand Voltage | AC750V 1min (leakage current 0.5mA or less) |
Type of Product |
USb Connector |
Model No |
XM7A-0441 |
Total Insertion Force |
35.3N or less |
Withstand Voltage |
AC750V 1min (leakage current 0.5mA or less) |
Type |
A type 1 stage |
Rated Voltage (V) |
AC30 |
Total Removal Force |
More than 10 |
Monotaro ID |
39105376 |
Rated Current (A) |
1 |
Standard |
USB2.0 |
Housing Material |
PBT / black |
Contact Material |
(Contact part) Phosphor bronze / nickel base Gold plating (Terminal part) Phosphor bronze / nickel base Tin alloy plating |
Shape |
DIP straight terminal |
Shell Material |
Copper alloy |
Insertion / Removal Durability (Times) |
1500 |
Country of Origin |
Japan |
Operating Temperature Range |
-40 to +60℃ (no freezing at low temperatures) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
1000 mohm or more (at 500 V DC) |
Contact Resistance (ohm) |
30 or less (20mV or less, 100mA or less, except for the conductor resistance of the cable) |
Processing |
Tin plating |
