Ships within 19 days
Model No
No. of Pole
View
View
View
View
| Type of Product | Discrete Wire Pressure Welding Connector |
| Model No | XG5S-3422 |
| Material | Polyamide resin (UL94 V-0) / natural color |
| Monotaro ID | 8593925 |
Type of Product |
Discrete Wire Pressure Welding Connector |
Model No |
XG5S-3422 |
Material |
Polyamide resin (UL94 V-0) / natural color |
Monotaro ID |
8593925 |
Standard |
RoHS directive, UL standard (file No.E103202), CSA standard (file No.LR62678) |
No. of Pole |
34 |
Cover Material |
Glass-filled polyamide resin (UL94V-0) / Black |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Cable ties |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Part No |
64-3395-05 |

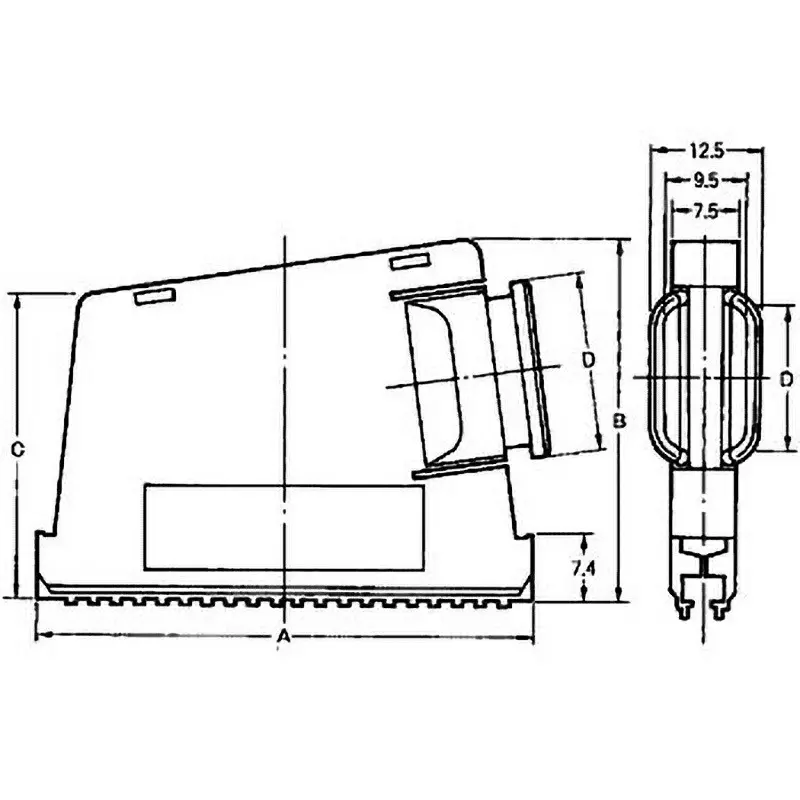

Dimension A (Φmm) |
φ47.7 mm |
Manufacturer Part Number |
XG5S-3422 |
Operation Ambient Temperature (°C) |
-55 to +85 (no freezing in the bass) |
Dimension B (Φmm) |
φ38.7 mm |
Dimension C |
32 mm |
Dimension d |
14.6 mm |
