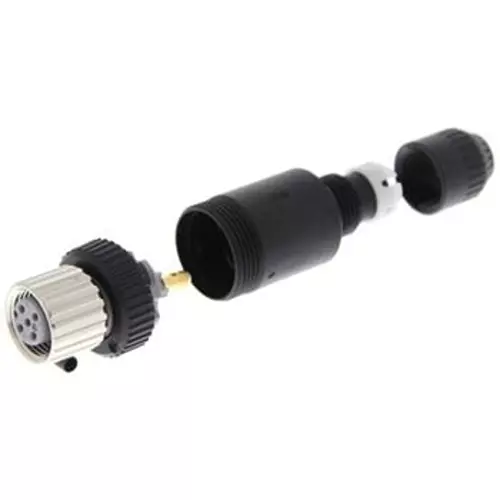

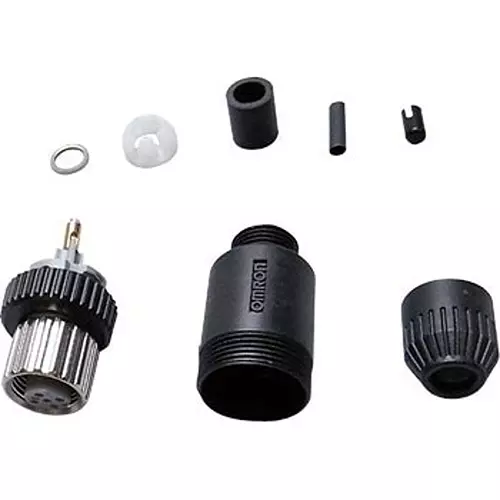

| Type of Product | Round Waterproof Connector |
| Model No | XS2C-D5S1 |
| Type | Waterproof connector |
| Rated Voltage (V) | AC/DC250V |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Round Waterproof Connector |
Model No |
XS2C-D5S1 |
Type |
Waterproof connector |
Rated Voltage (V) |
AC/DC250V |
Monotaro ID |
39106392 |
Rated Current (A) |
4 |
No. of Pole |
5 poles |
Surface Treatment |
Contact/Ni base gold plating 0.4μm Fixture/Ni plating |
Connection Type |
Screw connection |
Color |
Contact block / light gray |
Cover Material |
PBT resin (UL94V-O) |
Protection Class |
IP67(IEC529) |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to 70℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Cable Material |
(Cable clamp) PA resin (UL94V-O) |
Fixing Type |
M12 screw type |
Remark |
Select contact XS2U-2221 / XS2U-2222 depending on the core size. |
Power Supply |
For DC |
Cap Material |
PBT resin (UL94V-O) |
Ambient Humidity (% RH) |
20 to 85 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
1000 mohm or more (at 500 V DC) |
Contact Resistance (ohm) |
40 or less (Connector part: 20mV or less, 100mA or less) |
Suitable Cable Outer Dia. (Φmm) |
For Φ6 (Φ5 to Φ6) |
