Ships within 19 days
Model No
View
View
View
View

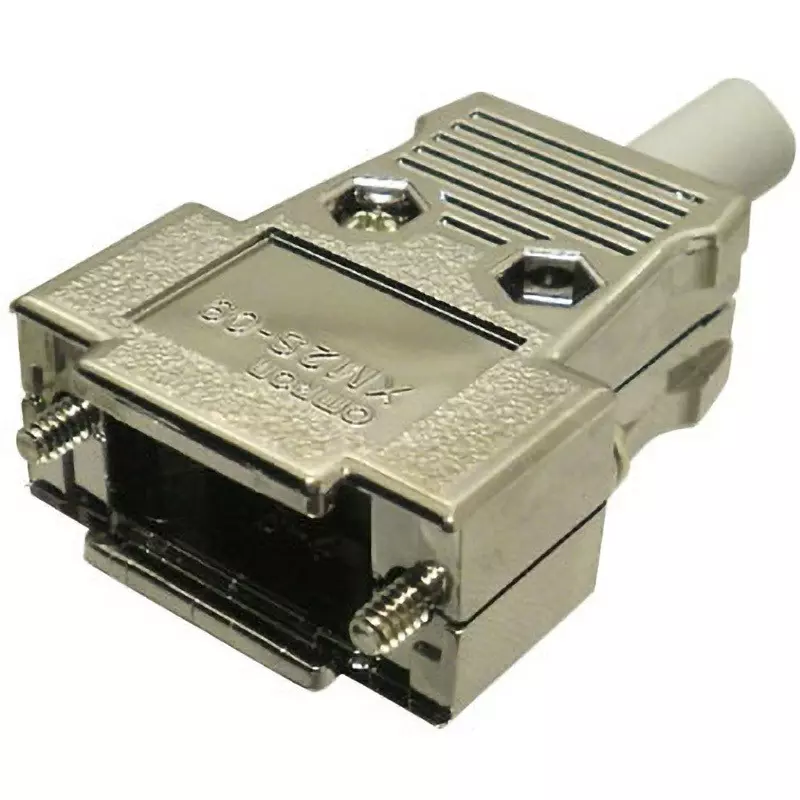

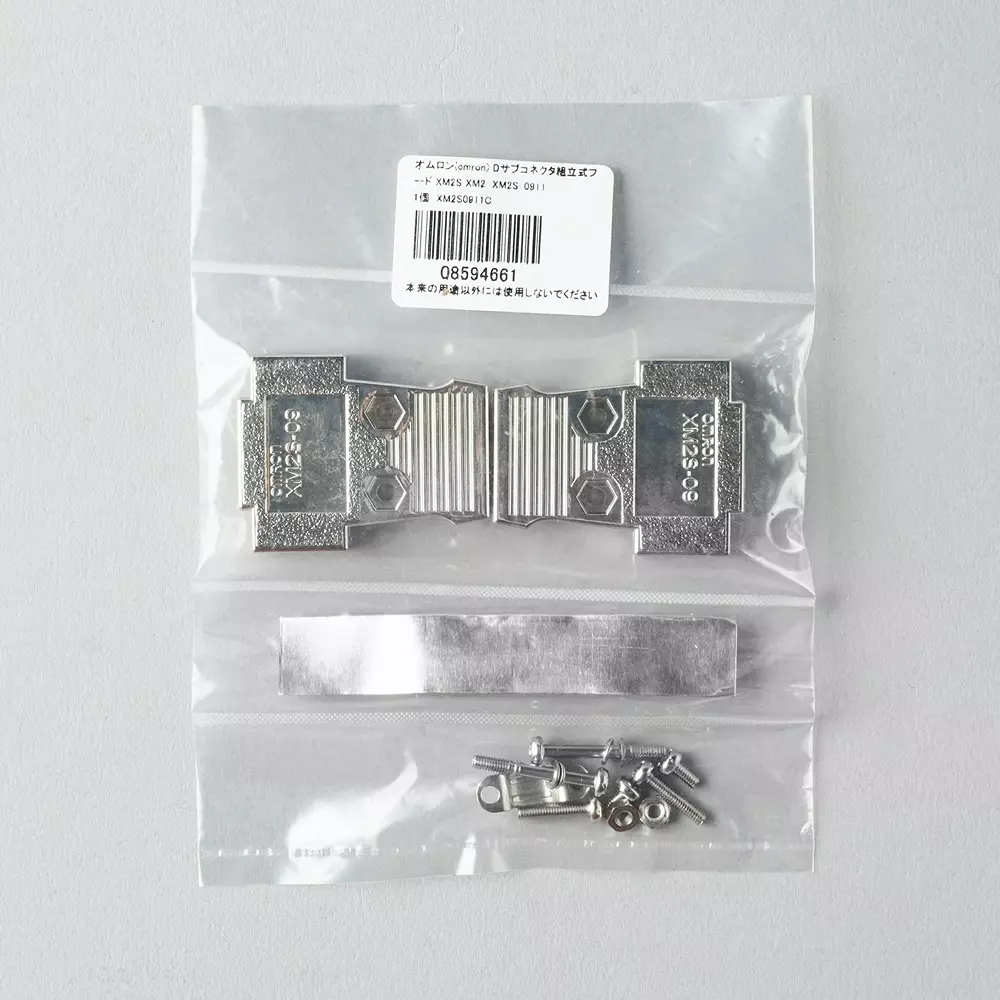

| Type of Product | D-Sub Connector Assembly Hood |
| Model No | XM2S-0911 |
| Monotaro ID | 8594661 |
| Standard | RoHS directive |
Type of Product |
D-Sub Connector Assembly Hood |
Model No |
XM2S-0911 |
Monotaro ID |
8594661 |
Standard |
RoHS directive |
Housing Material |
ABS resin |
Shape |
Hood |
Pin Number of Suitable Connector |
9 |
Shielding Effect (Electric Field Method) |
Panel mounting: 25 dB or more (30 to 900 MHz) ・ Board mounting: 20 dB or more (30 to 300 MHz) |
Lock Screw |
Metric screw (M2.6x0.45) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Dimension A (Φmm) |
φ32.2 mm |
Manufacturer Part Number |
XM2S-0911 |
Operation Ambient Temperature (°C) |
-25 to +85 |
Dimension B (Φmm) |
φ24.99 mm |
Dimension C |
18.2 mm |
Dimension d |
13 mm |
Processing (Housing) |
Nickel plating |
Dimension F (Φmm) |
φ9 mm |
Suitable Cable Outer Dia. (Φmm) |
9 mm Max. |
Dimension E (Φmm) |
φ24 mm |
