Ships within 25 days
View
View
View
View

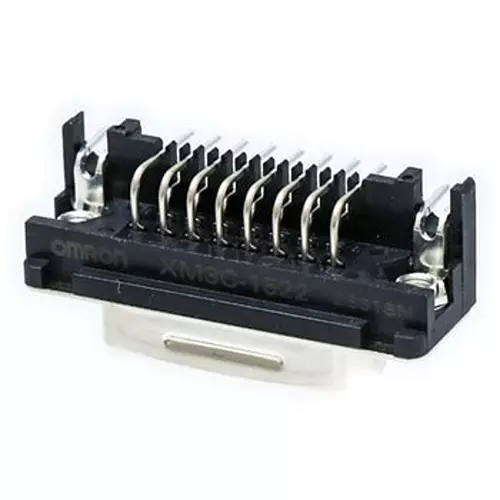

| Type of Product | D-Sub Connector |
| Model No | XM3C-1522-502 |
| Rated Voltage (V) | AC300 |
| Monotaro ID | 46590284 |
Type of Product |
D-Sub Connector |
Model No |
XM3C-1522-502 |
Rated Voltage (V) |
AC300 |
Monotaro ID |
46590284 |
Rated Current (A) |
5 |
No. of Pole |
15 |
Housing Material |
PBT resin (UL94V-0) / black |
Contact Material |
(Contact area) Phosphor bronze/nickel base, gold plating (Terminal area) Phosphor bronze/nickel base, tin plating |
Shape |
Plug |
Shell Material |
Steel |
Insertion / Removal Durability (Times) |
200 |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +105℃ (no freezing at low temperatures) |
Import Country |
Direct Import from Japan |
Terminal Shape |
DIP L-shaped terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Withstand voltage (V / min) |
AC1000 (leakage current 1mA or less) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
10³ mohm or more (at 500 V DC) |
Contact Resistance (ohm) |
15 or less (20mV or less, 100mA or less) |
Screw Type |
Without fixture |
Fixture Type |
Without fixture |
Ground Metal Bracket |
Lock pin ground metal fittings |
Processing |
Nickel plating |
