Ships within 19 days
Model No
View
View
View
View

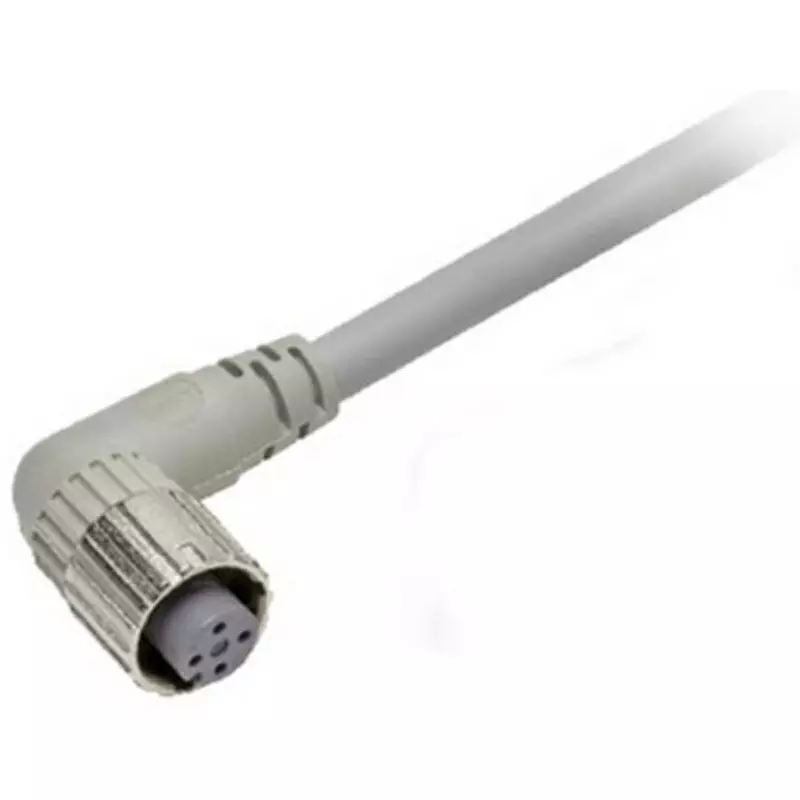

| Type of Product | Round Waterproof Connector |
| Model No | XS5F-D422-C80-F |
| Insulation Resistance | 1000 mΩ Or more (At 500 VDC) |
| Type | For Dc |
Type of Product |
Round Waterproof Connector |
Model No |
XS5F-D422-C80-F |
Insulation Resistance |
1000 mΩ Or more (At 500 VDC) |
Type |
For Dc |
Rated Voltage (V) |
DC 250 |
Monotaro ID |
46680304 |
Contact Resistance |
(Connector part) 40 or Less (20 mV or Less, 100 mA or Less) |
Rated Current (A) |
4 |
No. of Pole |
4 Pole |
Shape |
Mating Part: For Dc |
Lock Strength |
Tensile: 100N / 15s, Rotation: 1 nm / 15 s |
Cover Material |
Polyester Elastomer |
Protection Class |
IP67(IEC60529) |
Material (O-ring) |
Rubber |
Material (fixing bracket) |
Zinc Alloy / Ni Plating |
Cable Length (m) |
1 |
Connector |
One Side Connector |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to +70 |
Pole |
4 |
Import Country |
Direct Import from Japan |
Cable Direction |
L-Shaped |
Cable |
Flame Retardant, Robot Cable (Ul Awm2464 Cl3?6 4-Core X Awg20 (0.08 / 110)) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Material (Mounting Bracket) |
(Nail) SUS |
Cable Holding Strength (N/15s) |
100 (Cable Diameter Φ6 mm) |
