| Type of Product | Half-Pitch Connector |
| Model No | XH2B-5041 |
| Total Insertion Force | Number of polesx0.78 N or less |
| Type | Plug |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Half-Pitch Connector |
Model No |
XH2B-5041 |
Total Insertion Force |
Number of polesx0.78 N or less |
Type |
Plug |
Rated Voltage (V) |
AC125 |
Total Removal Force |
Number of polesx0.10 or more |
Monotaro ID |
39103802 |
Rated Current (A) |
0.5 |
Standard |
RoHS directive, UL standard (File No.E103202) |
No. of Pole |
50 |
Insertion / Removal Durability (Times) |
400 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
DIP straight terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Part No |
64-3397-71 |
Withstand voltage (V / min) |
AC650, 1 (leakage current 1mA or less) |

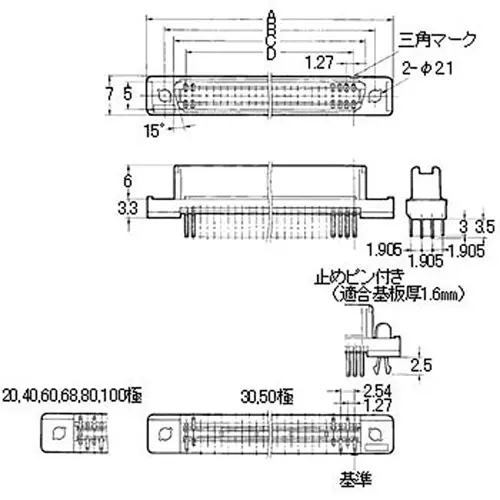

Dimension A (Φmm) |
44.5 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
10³ mohm or more (at 500 V DC) |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing at low temperatures) |
Contact Resistance (ohm) |
30 or less (20 mV or less, 100 mA or less) Combination of XH2A-@@42 and XH2B-@@41 |
Dimension B (Φmm) |
38.1 |
Dimension C |
34.9 mm |
Dimension d |
30.48 mm |
