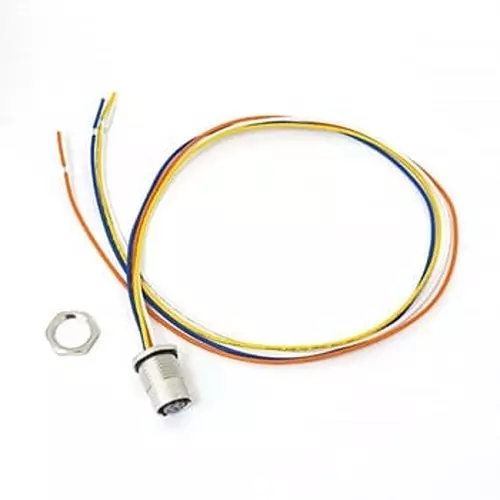

| Type of Product | Mounting Connector |
| Model No | XS5P-T427-5 |
| Type | for ethernet |
| Rated Voltage (V) | DC 125 |
Type of Product |
Mounting Connector |
Model No |
XS5P-T427-5 |
Type |
for ethernet |
Rated Voltage (V) |
DC 125 |
Monotaro ID |
66557042 |
Rated Current (A) |
4 |
No. of Pole |
4 |
Protection Class |
M12：IEC IP67, RJ45：IEC IP20 |
Cable Length (m) |
0.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Plating Type |
Gold plating |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Withstand voltage (V / min) |
AC1000 (leakage current 1mA or less) |
Terminal Fitting Type |
Rear lock (with connector rotation prevention mechanism) |
Storage Temperature Range |
-25 to 70℃ |
Insulation Resistance (MOhm) |
1000 or more |
Operation Ambient Temperature (°C) |
-25 to 70 |
Contact Resistance (ohm) |
40 or less |
Specifications |
M12 panel mounting |
Belt-End Finish |
Loose wire pull-out type (0.5m) |
