Ships within 19 days
Model No
View
View
View
View

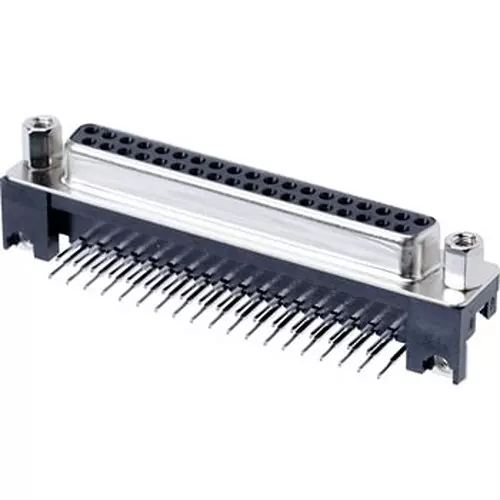

| Type of Product | D-Sub Connector Socket |
| Model No | XM3B-3722-111 |
| Withstand Voltage | 1000 VAC, 1 min (leakage current 1 mA or less) |
| Rated Voltage (V) | AC 300 |
Type of Product |
D-Sub Connector Socket |
Model No |
XM3B-3722-111 |
Withstand Voltage |
1000 VAC, 1 min (leakage current 1 mA or less) |
Rated Voltage (V) |
AC 300 |
Monotaro ID |
39105071 |
Rated Current (A) |
5 |
Standard |
RoHS directive |
No. of Pole |
37 |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Shape |
Socket Dip L-type terminal |
Series |
XM3B Series |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Fixing tool (XM2Z-0011 ( mm screw M2.6x0.45)), tap hole grounding bracket |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Terminal Type |
L-Shaped Terminal |
Dimension A (Φmm) |
69.3 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
10³ mohm or more (at 500 V DC) |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing in the bass) |
Contact Resistance (ohm) |
15 or less (20mV or less, 100mA or less) |
Dimension B (Φmm) |
63.5 |
Dimension C |
54.8 mm |
Dimension d |
49.68 mm |
Dimension F (Φmm) |
2.76 |
Dimension E (Φmm) |
46.92 |
Contact Connection Part Material |
Phosphor bronze |
