| Type of Product | Din Style Connector |
| Model No | XC5A-3282-1 |
| Total Insertion Force | Number of polesx0.59 N or less |
| Type | Plug |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Din Style Connector |
Model No |
XC5A-3282-1 |
Total Insertion Force |
Number of polesx0.59 N or less |
Type |
Plug |
Rated Voltage (V) |
AC300 |
Monotaro ID |
39102034 |
Rated Current (A) |
2 |
No. of Pole |
32 |
Housing Material |
PBT resin with glass (UL94 V-0) / gray |
Contact Material |
(Contact part) Brass / nickel base gold plating (0.15 μm), (Terminal part) Brass / nickel base tin plating (2 μm) |
Country of Origin |
Japan |
Operating Temperature Range |
-55~+125℃ (no freezing at low temperatures) |
Import Country |
Direct Import from Japan |
Terminal Shape |
DIP L-shaped terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Withstand voltage (V / min) |
AC 1000 (leakage current 1mA or less) |

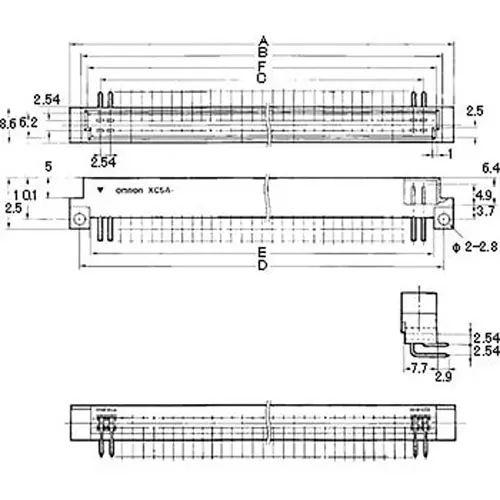

Dimension A (Φmm) |
53.2 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
10⁶ mohm or more (at 100 V DC) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |
Dimension B (Φmm) |
47.4 |
Dimension C |
38.1 mm |
Dimension d |
48.26 mm |
Dimension F (Φmm) |
44.6 |
Dimension E (Φmm) |
43.3 |
