Ships within 25 days
View
View
View
View
| Type of Product | Din Style Connector |

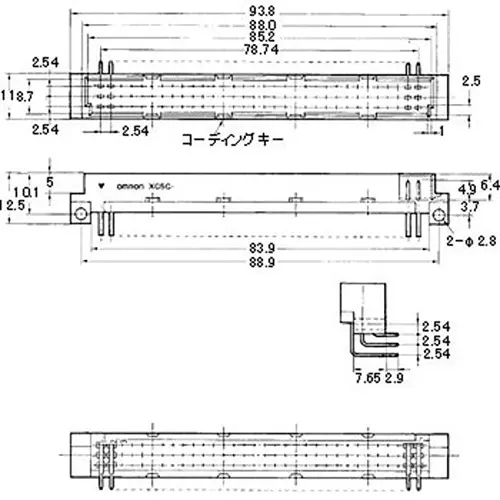

| Model No | XC5C-9682-1 |
| Total Insertion Force | Number of polesx0.59 N or less |
| Type | Plug |
Type of Product |
Din Style Connector |
Model No |
XC5C-9682-1 |
Total Insertion Force |
Number of polesx0.59 N or less |
Type |
Plug |
Rated Voltage (V) |
AC300 |
Monotaro ID |
39102314 |
Rated Current (A) |
2 |
No. of Pole |
96 |
Housing Material |
PBT resin with glass (UL94 V-0) / gray |
Contact Material |
(Contact part) Brass / nickel base gold plating (0.15 μm), (Terminal part) Brass / nickel base tin plating (2 μm) |
Country of Origin |
Japan |
Operating Temperature Range |
-55~+125℃ (no freezing at low temperatures) |
Import Country |
Direct Import from Japan |
Terminal Shape |
DIP L-shaped terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Withstand voltage (V / min) |
AC 1000 (leakage current 1mA or less) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
10⁶ mohm or more (at 100 V DC) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |
