Ships within 25 days
View
View
View
View

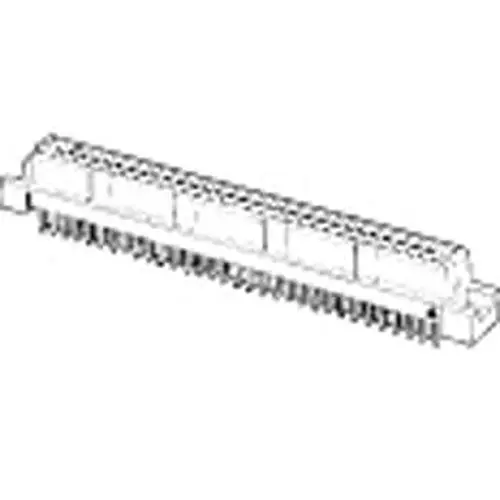

| Type of Product | Din Connector |
| Model No | XC5D-3221 |
| Total Insertion Force | Number of polesx0.59 N or less |
| Type | Socket |
Type of Product |
Din Connector |
Model No |
XC5D-3221 |
Total Insertion Force |
Number of polesx0.59 N or less |
Type |
Socket |
Rated Voltage (V) |
AC300 |
Monotaro ID |
46586224 |
Rated Current (A) |
2 |
No. of Pole |
32 (Nuki) |
Housing Material |
PBT resin with glass (UL94V-0)/gray |
Contact Material |
(Contact part) Phosphor bronze / nickel base gold plating (0.4 μm), (Terminal part) Phosphor bronze / nickel base tin plating (2 μm) |
Coding Key Position (Terminal No.) |
512 |
Country of Origin |
Japan |
Operating Temperature Range |
-55~+125℃ (no freezing at low temperatures) |
Import Country |
Direct Import from Japan |
Terminal Shape |
DIP straight terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Withstand voltage (V / min) |
AC 1000 (leakage current 1mA or less) |
Dimension A (Φmm) |
54.2 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
10⁶ mohm or more (at 100 V DC) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |
Dimension B (Φmm) |
44.4 |
Dimension C |
38.1 mm |
Dimension d |
49.36 mm |
Dimension E (Φmm) |
42.3 |
