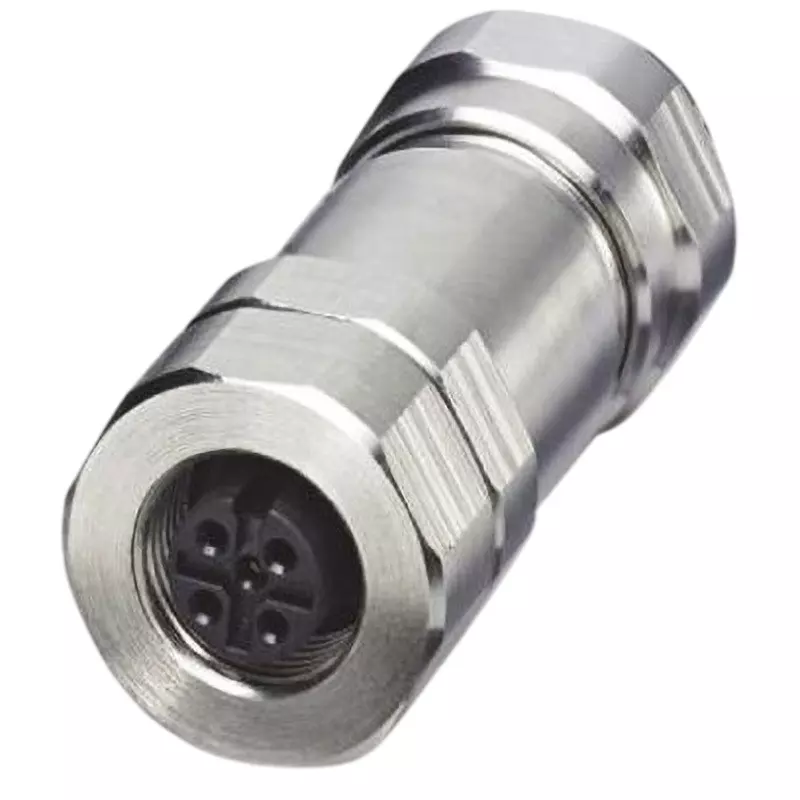

| Type of Product | Circular Connector |
| Model No | 1440041 |
| RoHS Directive | Correspondence |
| Rated Voltage (V) | 60 |
Type of Product |
Circular Connector |
Model No |
1440041 |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
60 |
Monotaro ID |
48155687 |
Rated Current (A) |
4 |
Housing Material |
polyamide |
Contact Material |
CuZn |
Connection Type |
Screw on |
Protection Class |
IP65, IP67, IP69K |
Series |
SACC-M12FS-5CON-DM5-8SHVA |
Connector Size |
M12 |
Country of Origin |
Japan |
No. of Contacts |
5 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Phoenix Contact Co., Ltd. |
Contact Gender |
Female |
Housing Type |
Straight |
Terminal Type |
Screw |
Specifications |
IEC61076-2-101.GOST.PhoenixContact A-coded M12 shielded connector, stainless steel.PhoenixContact five A-coded M12 shielded sensor / actuator plug / socket connectors are made of high-grade stainless steel with excellent corrosion resistance. It is designed to meet the requirements of harsh environments and environments where electromagnetic interference occurs that requires 360 degree shielding. These plug / socket connectors have an IP rating of IP69K, rated current and rated voltage of 4A @ 60V, and external cable capacity of 5.5 to 8.6mm. .IP69K rated operating temperature range -40 to 85 Insertion / removal cycle 100 times or more Screw terminal wire connection for built-in contact |
Socket or Plug |
Socket |
