| Type of Product | Outlet Connector |
| Model No | CN-70-A-2P |
| Type | Round |
| Rated Voltage (V) | AC125 |
Type of Product |
Outlet Connector |
Model No |
CN-70-A-2P |
Type |
Round |
Rated Voltage (V) |
AC125 |
Monotaro ID |
8626737 |
Contact Resistance |
20 mΩ or less (initial value) |
Rated Current (A) |
5 |
No. of Pole |
2 Pole |
Connection Type |
Screw |
Color |
Stopper ring: Blue |
Shape |
Straight |
Applicable Standard |
Plug only PSE mark product (Authorized institution name: JET) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Pack of |
1 Pcs |
Insulator Material |
Nylon 66 (UL94V-0) |
Body Color |
Gray |
Compatible Cable |
0.75 (Vinyl cabtire cord round cord) |
Insulation_Resistance (MΩ) |
1000 or More (DC500V) |
Contact Shape |
Male |
suitable crimping terminal |
Soldering terminal |
Nut Tightening Torque (Nm) |
0.8 or less |

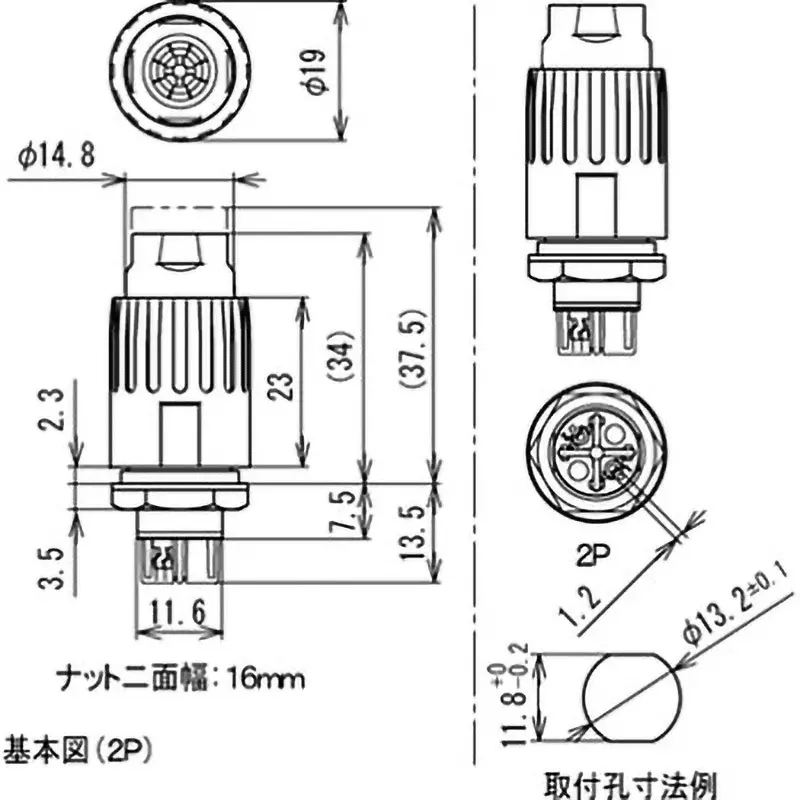

Nut Width Across Flats (mm) |
16 |
Clip Material |
Nylon 66 (UL94V-0) |
Panel Mounting Method |
Nut tightening |
Outer Diameter (Φmm) |
6.6 to 7.6 |
