| Type of Product | Lock Round Connector |
| Model No | PRC04-21A26S-21F |
| Type | Round type |
| Rated Voltage (V) | AC400 |
Type of Product |
Lock Round Connector |
Model No |
PRC04-21A26S-21F |
Type |
Round type |
Rated Voltage (V) |
AC400 |
Monotaro ID |
87878673 |
Rated Current (A) |
10 |
No. of Pole |
21 |
Connection Type |
One touch |
Shape |
Straight |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to +85℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Tajimi Wireless Electric Co., Ltd. |
Mass (g) |
53 |

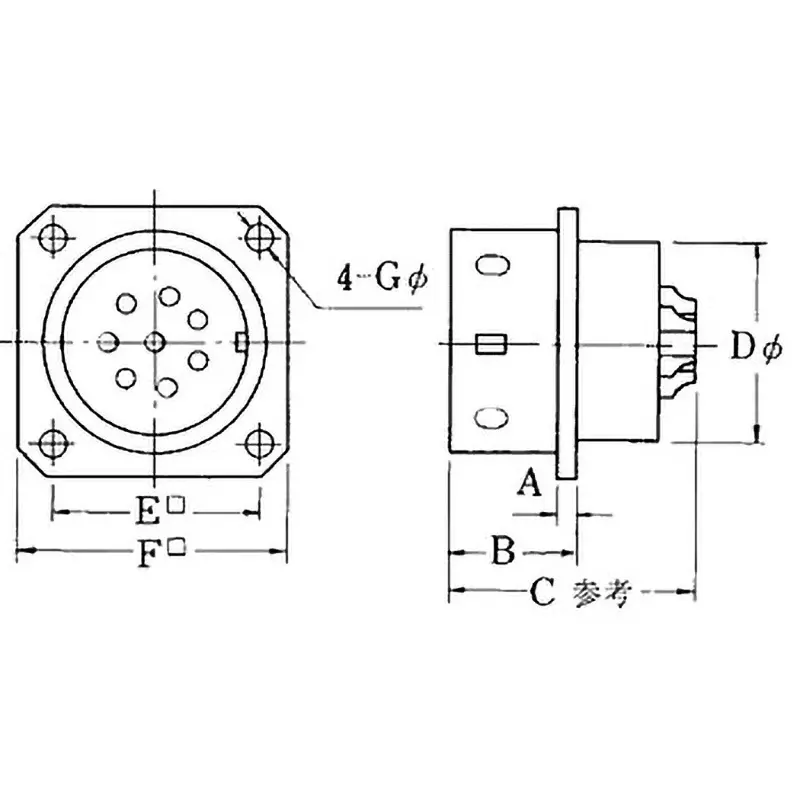

Dimension A (Φmm) |
2.5 |
Insulation Resistance (MOhm) |
2000 or more (DC500V) |
Contact Resistance (ohm) |
5 mΩ or less |
Dimension B (Φmm) |
14 |
Dimension C |
26 mm |
Dimension d |
32 mm |
Dimension F (Φmm) |
38 |
Dimension E (Φmm) |
31 mm |
Specifications |
Socket contact |
Dimension G |
3.9 mm |
Compatible Cable |
1.25 mm² or less |
Contact Shape |
Female |
