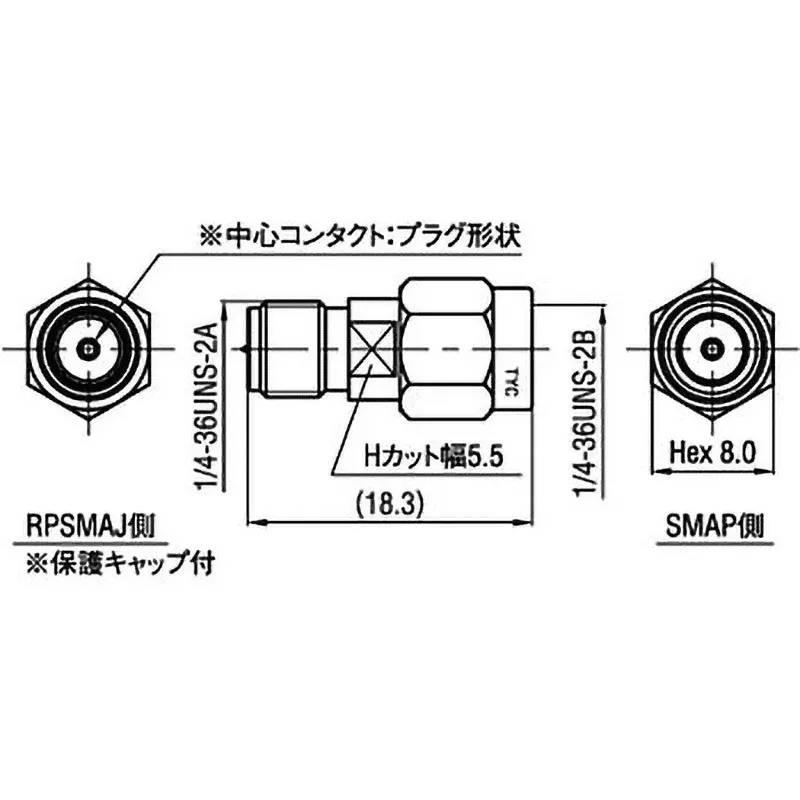

| Type of Product | Conversion Connector |
| Model No | RPSMAJ-SMAP |
| Type | Coaxial |
| Monotaro ID | 18263622 |
Type of Product |
Conversion Connector |
Model No |
RPSMAJ-SMAP |
Type |
Coaxial |
Monotaro ID |
18263622 |
Surface Treatment |
(Main unit) Au, (Center contact) Au |
Contact Material |
Brass |
Connection Type |
Screw |
Shape |
Straight |
Compatibility |
When combined with a connector conforming to the standard |
Country of Origin |
Japan |
Operating Temperature Range |
-45℃ to +85℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Tocone |
Withstand voltage (V / min) |
AC500 |
Adapter Type |
SMA-SMA |
Length (mm) |
18.3 |
Insulation Resistance (MOhm) |
5000 or more (DC 500 V) |
Contact Resistance (ohm) |
3 or less (voltage drop between contacts does not exceed 1mV at approximately 1kHz AC or DC) |
Specifications |
Conversion adapter |
Frequency (GHz) |
18 GHz |
Contact Shape |
Reverse SMA side: Male / SMA side: Male |
Characteristic impedance (Ω) |
50 |
Cutting Shape |
reverse jack plug |
Voltage standing wave ratio |
1.2 or less (0.5-8 GHz) |
