| Type of Product | Conversion Connector |
| Model No | 7/16P-NP |
| Type | Coaxial |
| Rated Voltage (V) | AC 1000(50Hz) |
Type of Product |
Conversion Connector |
Model No |
7/16P-NP |
Type |
Coaxial |
Rated Voltage (V) |
AC 1000(50Hz) |
Monotaro ID |
18263464 |
Standard |
IEC 60169-4(7/16)/IEC 60169-16(N) |

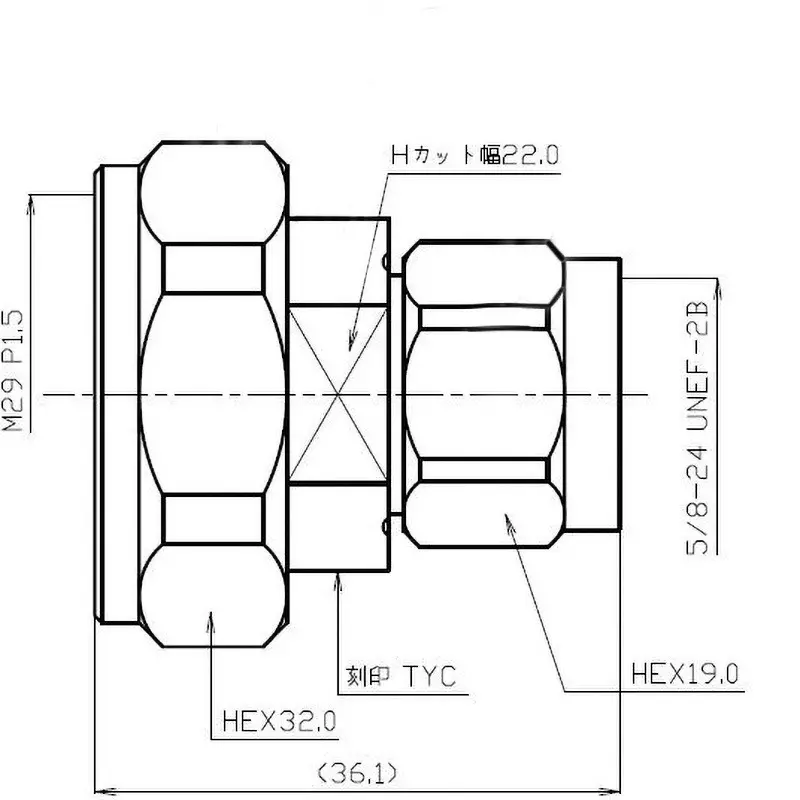

Screws |
M29 P1.5 |
Surface Treatment |
(Body) 3 element plating, (center contact) Ag |
Contact Material |
Brass |
Connection Type |
Screw |
Shape |
Straight |
Compatibility |
When combined with a connector conforming to the standard |
Country of Origin |
Japan |
Operating Temperature Range |
-45℃ to +85℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Tocone |
Length (mm) |
36.1 |
Insulation Resistance (MOhm) |
5000 or more (DC 500 V) |
Contact Resistance (ohm) |
1.5 or less (between center contacts), 0.5 or less (between external contacts) |
Specifications |
Conversion adapter |
Impedance (Ω) |
50 |
Contact Shape |
Male |
Nut Tightening Torque (Nm) |
25 to 35 (7/16 side), 4 to 6 (N side) |
Characteristic impedance (Ω) |
50 |
Voltage standing wave ratio |
1.2 or less (DC to 6 GHz) |
