| Type of Product | Conversion Connector |
| Model No | 7/16P-NJ |
| Type | Round type |
| RoHS Directive | Correspondence |
Type of Product |
Conversion Connector |
Model No |
7/16P-NJ |
Type |
Round type |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
AC 1000(50Hz) |
Monotaro ID |
18263473 |
Standard |
IEC 60169-4(7/16)/IEC 60169-16(N) |

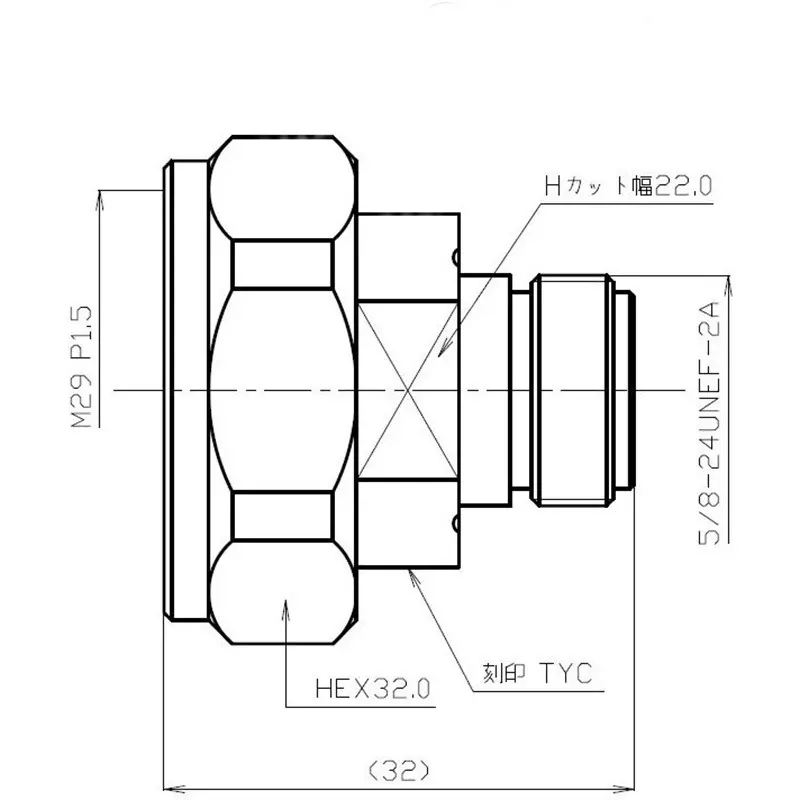

Screws |
M29 P1.5 |
Surface Treatment |
(Body) 3 element plating, (center contact) Ag |
Contact Material |
(Center) Phosphor bronze / (External) Brass |
Connection Type |
Screw |
Shape |
Straight |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Tocone |
Withstand voltage (V / min) |
AC2500(50Hz) |
Adapter Type |
7/16 type-N type |
Length (mm) |
32 |
Insulation Resistance (MOhm) |
5000 or more (DC 500 V) |
Contact Resistance (ohm) |
1.5 or less (between center contacts), 0.5 or less (between external contacts) |
Contact Shape |
For both female and male |
Nut Tightening Torque (Nm) |
25-35 (7/16 side) |
Characteristic impedance (Ω) |
50 |
Cutting Shape |
Plug jack |
Voltage standing wave ratio |
1.2 or less (DC to 6 GHz) |
