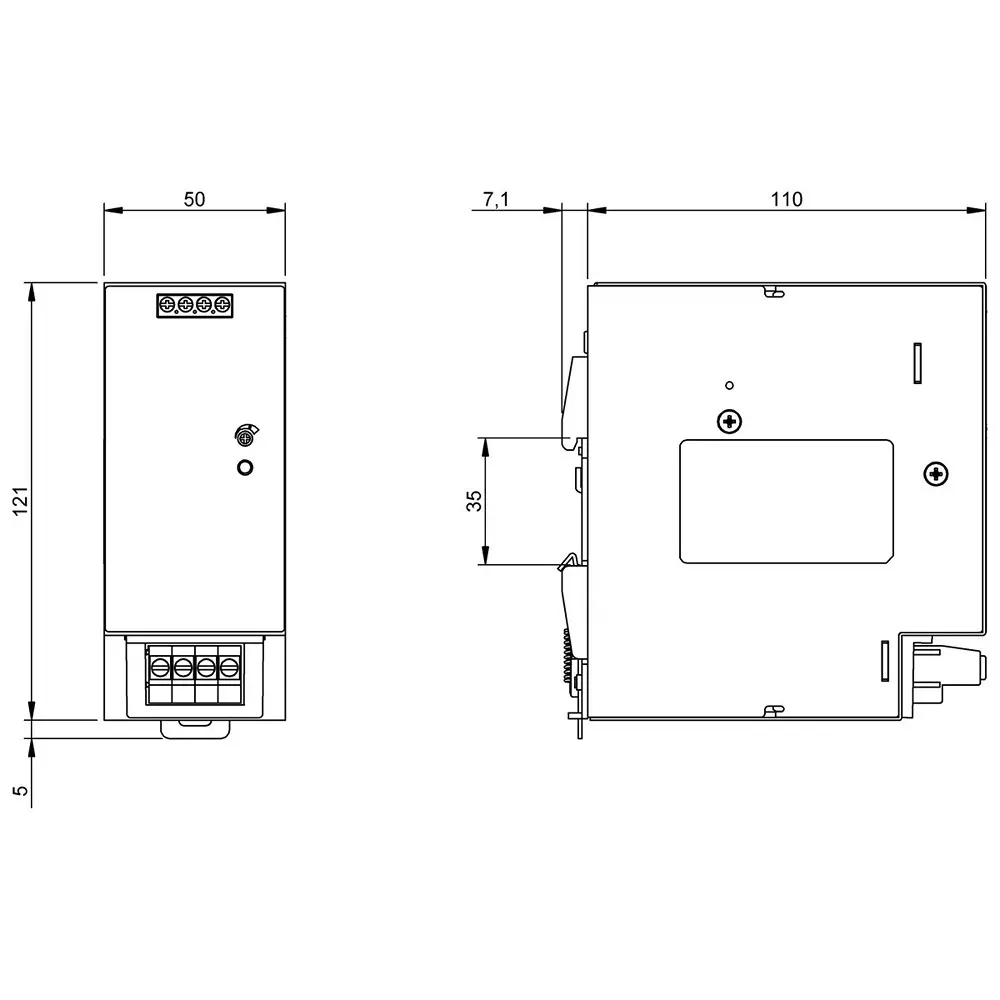

| Dimension | 50x121x117.3 mm |
| Model No | BAE0115 |
| Input Voltage | 400-500 V AC 3-Phase |
| Type of Product | Power Supply |
Dimension |
50x121x117.3 mm |
Model No |
BAE0115 |
Input Voltage |
400-500 V AC 3-Phase |
Type of Product |
Power Supply |
Mounting Type |
DIN Rail Mount |
Country of Origin |
Germany |
Name of Manufacturer/Packer/Importer |
TAC AUTOMATION PRIVATE LIMITED |
IP Rating |
IP20 |
Housing Material |
Metal |
Ambient Temperature |
-25 to 80°C |
Rated Output Voltage |
24 V (DC) |
Rated Output Current |
5 A |
Maximum Output Capacity |
120 W |
Connection Terminal |
Terminal: 0.25-4 mm², 0.5-10 mm² |
