Ships within 15 days
View
View
View
View

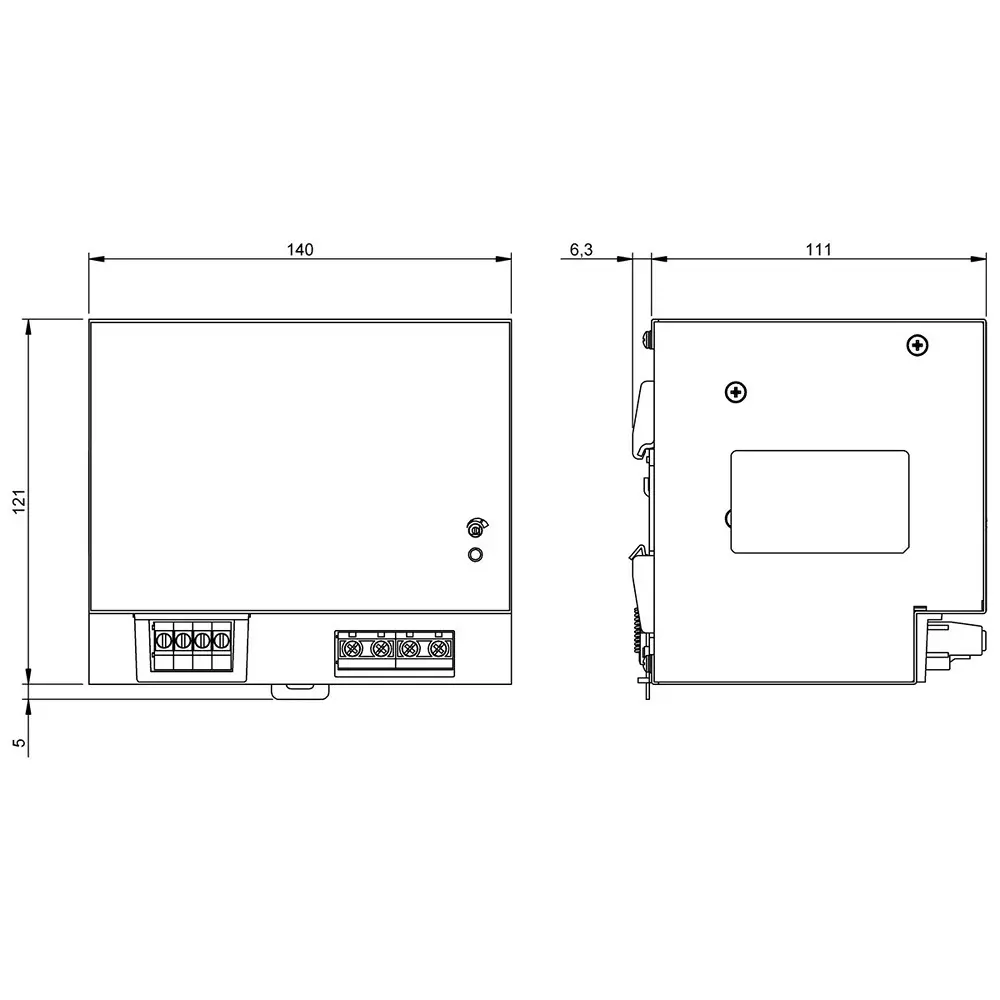

| Dimension | 140x121x117.3 mm |
| Model No | BAE0117 |
| Input Voltage | 400-500 V AC 3-Phase |
| Type of Product | Power Supply |
Dimension |
140x121x117.3 mm |
Model No |
BAE0117 |
Input Voltage |
400-500 V AC 3-Phase |
Type of Product |
Power Supply |
Mounting Type |
DIN Rail Mount |
Country of Origin |
Germany |
Name of Manufacturer/Packer/Importer |
TAC AUTOMATION PRIVATE LIMITED |
IP Rating |
IP20 |
Housing Material |
Metal |
Ambient Temperature |
-25 to 80°C |
Rated Output Voltage |
24 V (DC) |
Rated Output Current |
20 A |
Maximum Output Capacity |
480 W |
Connection Terminal |
Terminal: 0.25-4 mm² |
