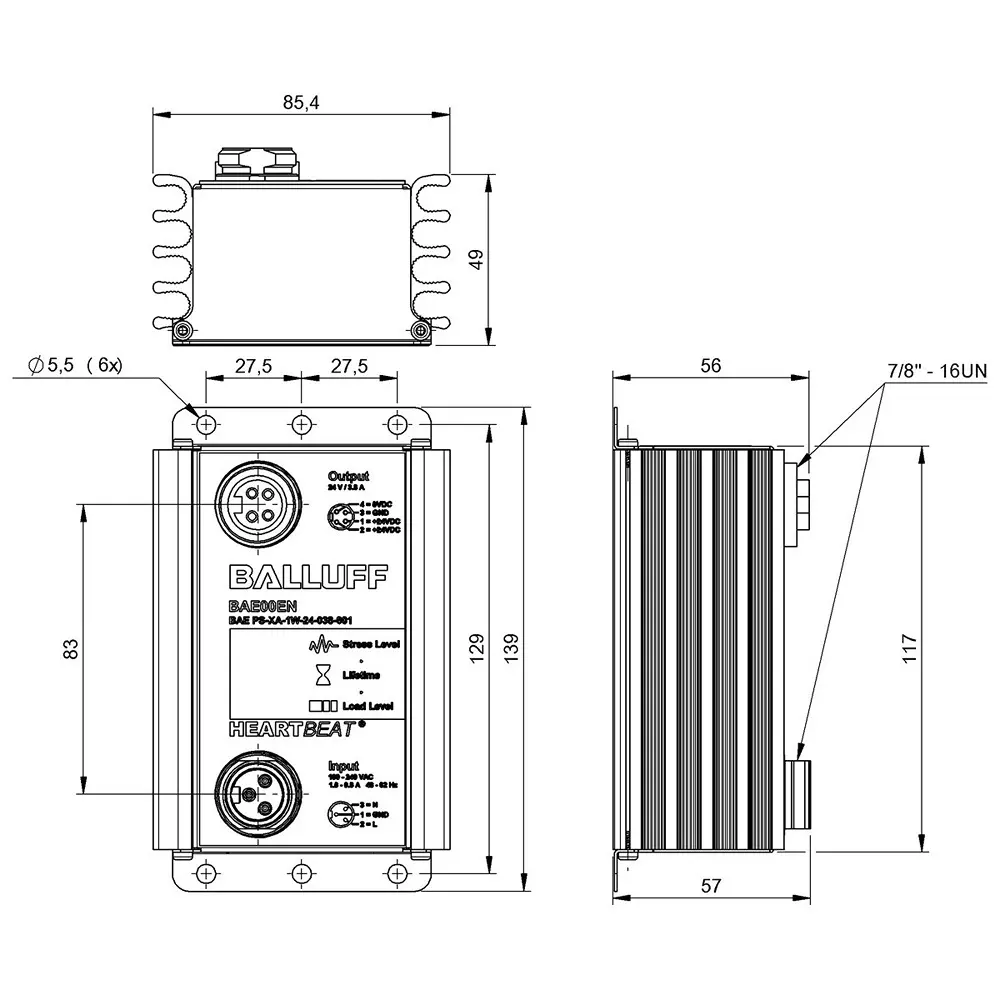

| Dimension | 85.4x57x139 mm |
| Model No | BAE00EN |
| Input Voltage | 100-240 V AC, 1-Phase |
| Type of Product | Heartbeat Power Supply Unit |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Dimension |
85.4x57x139 mm |
Model No |
BAE00EN |
Input Voltage |
100-240 V AC, 1-Phase |
Type of Product |
Heartbeat Power Supply Unit |
Mounting Type |
Flange Mount |
Country of Origin |
Germany |
Name of Manufacturer/Packer/Importer |
TAC AUTOMATION PRIVATE LIMITED |
Output Connections |
22.22 mm (7/8 inch) Female [Supply Voltage OUT] |
IP Rating |
IP67 with Connector |
Housing Material |
Aluminium |
Ambient Temperature |
-25 to 70°C |
Input Connection |
22.22 mm (7/8 inch) Male [Supply Voltage IN] |
Maximum Output Current |
6 A for max. 4s |
Rated Output Voltage |
24 V (DC) |
Rated Output Current |
3.8 A |
Maximum Output Capacity |
91.2 W |
