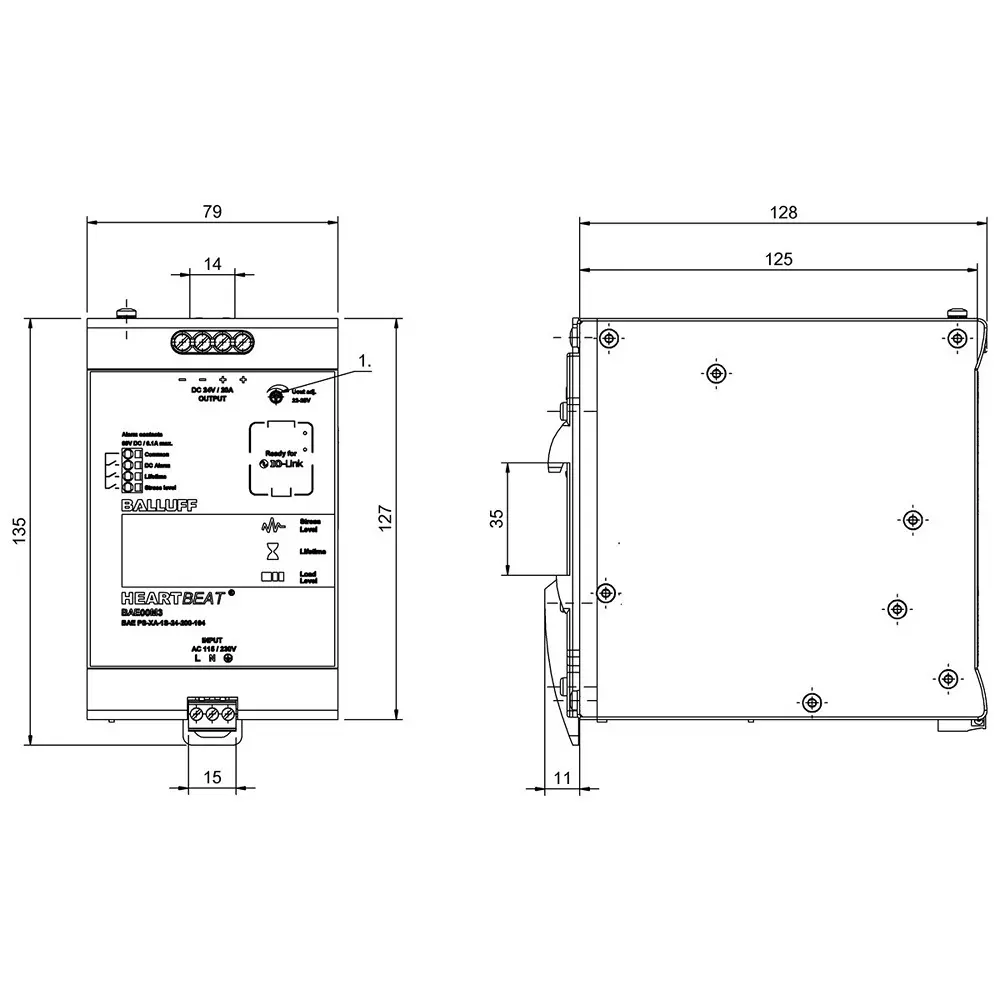

| Dimension | 79x127x139 mm |
| Model No | BAE00M3 |
| Input Voltage | 115/230 V AC (Automatic Selection) |
| Type of Product | Heartbeat Power Supply Unit with IO-Link Interface |
Dimension |
79x127x139 mm |
Model No |
BAE00M3 |
Input Voltage |
115/230 V AC (Automatic Selection) |
Type of Product |
Heartbeat Power Supply Unit with IO-Link Interface |
Mounting Type |
DIN Rail Mount |
Country of Origin |
Germany |
Name of Manufacturer/Packer/Importer |
TAC AUTOMATION PRIVATE LIMITED |
Output Connections |
Terminal Strip [Supply Voltage OUT] |
IP Rating |
IP20 |
Housing Material |
Aluminium |
Ambient Temperature |
-25 to 70°C |
Input Connection |
Terminal Strip [Supply Voltage IN] |
Maximum Output Current |
30 A for max. 4s 1x/min |
Rated Output Voltage |
24 V (DC) |
Rated Output Current |
20 A |
Maximum Output Capacity |
720 W |
