| Protection | Input Transient: 350VAC (MOV Based 275VAC), Output Short Circuit, Output Over Load Above 4 A (enters In CC mode) |
| Model No | KRP-120-42 |
| Type of Product | High Efficiency SMPS |
| Output Power | 120 W |
Protection |
Input Transient: 350VAC (MOV Based 275VAC), Output Short Circuit, Output Over Load Above 4 A (enters In CC mode) |
Model No |
KRP-120-42 |
Type of Product |
High Efficiency SMPS |
Output Power |
120 W |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
KRIPOWER PRIVATE LIMITED |
Output Current |
2.7 A at 44 V |
Ripple & Noise (max) |
300 mVpp |
Power Reserve |
20% Power Boost |
Input Voltage DC |
DC 220-400 V |
Typical Efficiency |
0.884 |
Input Voltage (AC) |
AC 160-280 V |
Power Loss |
13.9 W (Typ.) |

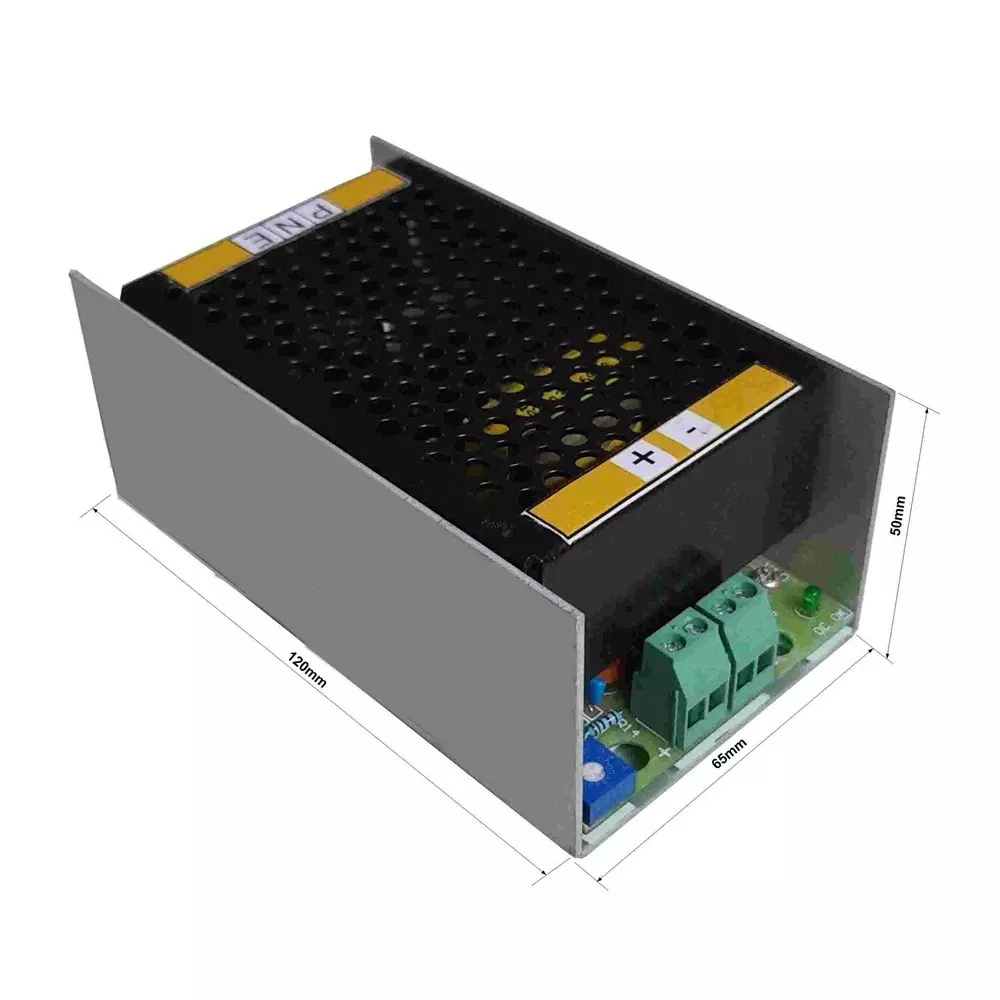

Dimension (lxwxh) |
120x65x50 mm |
Operating Temperature Range |
-25°C to +60°C |
External Input Fuse Recommendation |
4 A |
Power Factor |
0.55 |
Mounting |
Panel / DIN-Rail |
Nominal Voltage |
42 VDC |
Derating |
3W/° at >+60°C |
Output Current Range |
3-2.7 A |
