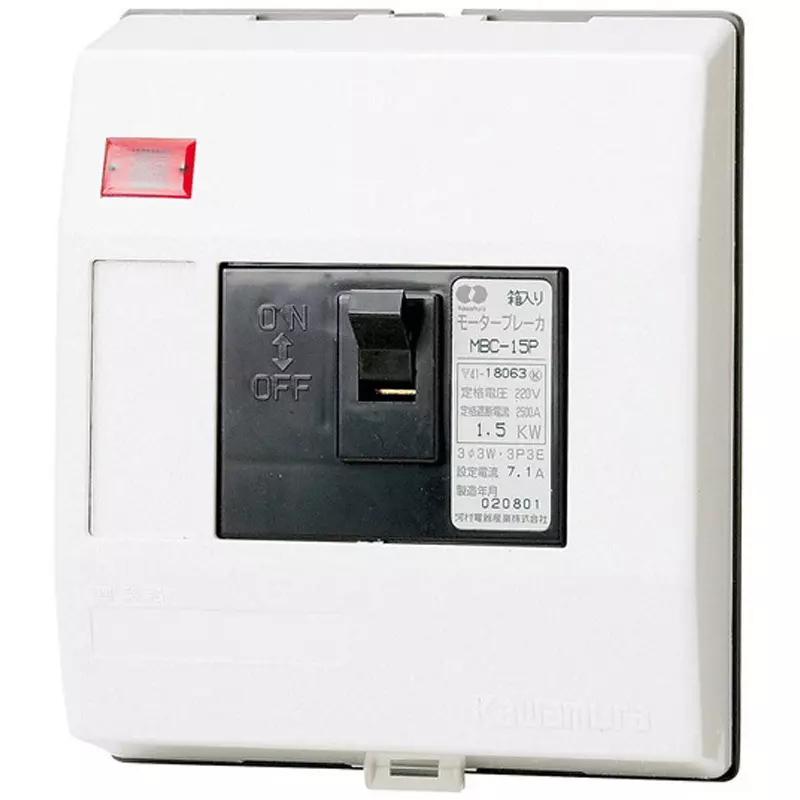

| Model No | MBC15P |
| Type of Product | Boxed Motor Breaker |
| Application | For motor protection (boxed) |
| Country of Origin | Japan |
Model No |
MBC15P |
Type of Product |
Boxed Motor Breaker |
Application |
For motor protection (boxed) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Kawamura Electric Industry Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
52735682 |
Specifications |
Boxed type / with power indicator pilot light |
Rated Current (A) |
7.1 |
Rated Breaking Capacity (kA) |
2.5(AC220V) |
No. of Poles / Elements |
3P3E |
Tripper Type |
Complete electromagnetic type |
Reverse Connection |
Impossible |
Frame (AF) |
30 |
Included Components |
4 mounting screws (for wood boards) |
Connection Type |
Wire clamp terminal (M5) |
Outer Dimensions (mm) |
129x153x60 |
Mass (Kg) |
0.51 |
Connectable Wire (mm2) |
14 |
Phase / Wire Type |
3Φ3W |
Rated Voltage (V) |
AC220 |
