| Series | MS116 |

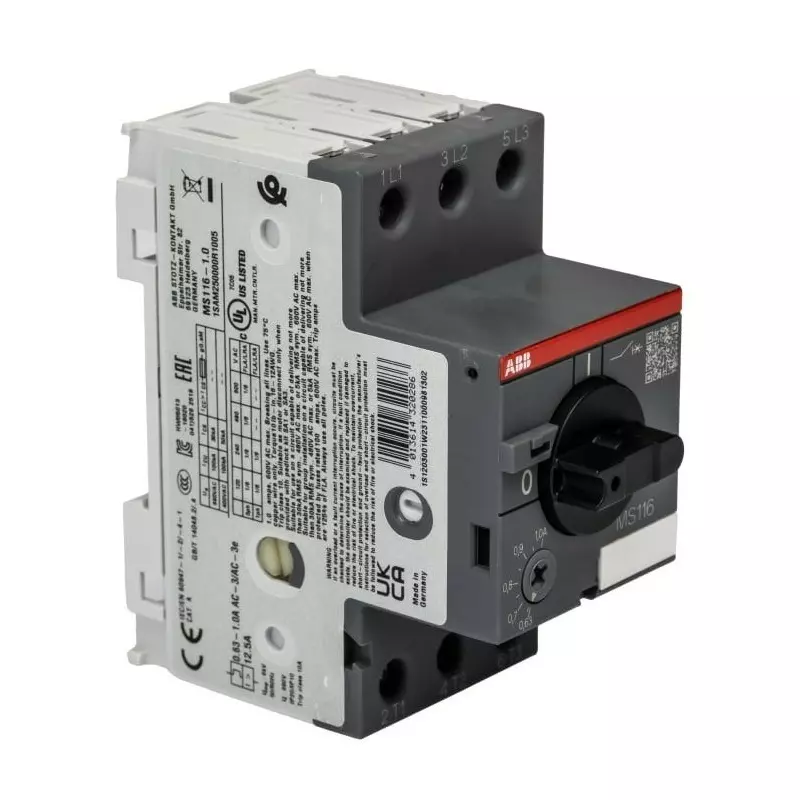

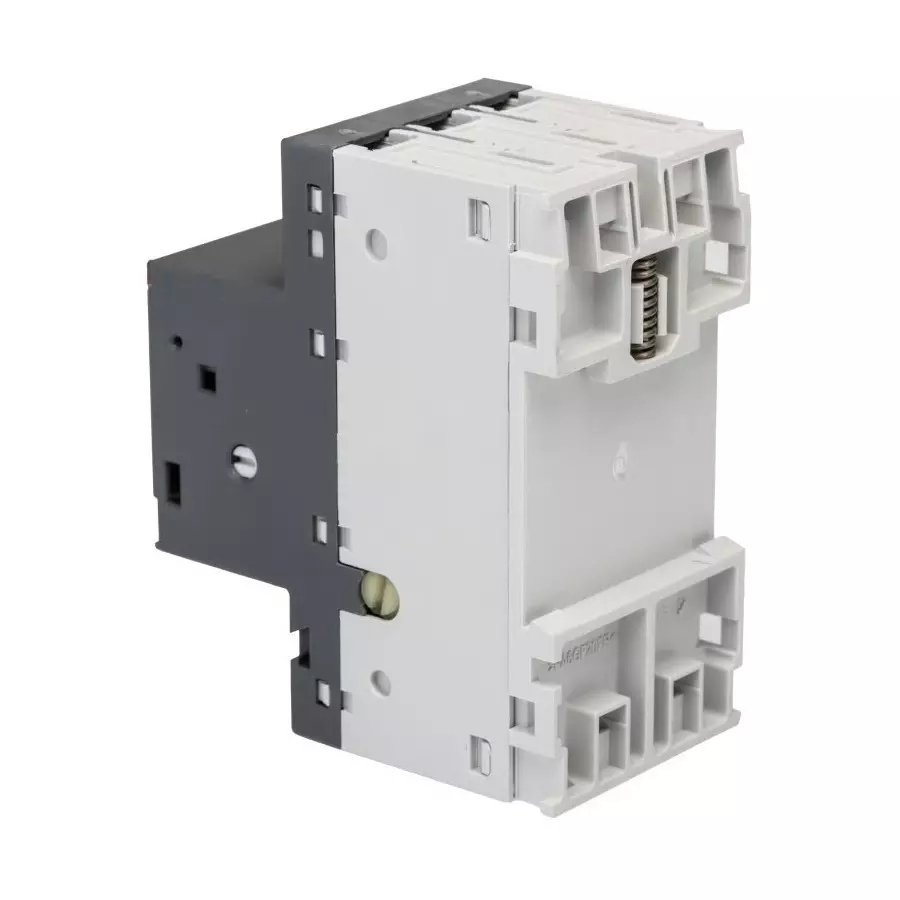

| Type of Product | 1 A Motor Protection Circuit Breaker, 690 V AC |
| No. of Pole | 3 |
| Current Rating | 1 Amp |
Series |
MS116 |
Type of Product |
1 A Motor Protection Circuit Breaker, 690 V AC |
No. of Pole |
3 |
Current Rating |
1 Amp |
Breaking Capacity |
50 kA, 100 kA |
Country of Origin |
Germany |
Voltage Rating |
690 V AC |
Overall Depth |
80.1 mm |
Overall Width |
45 mm |
Overall Length |
90 mm |
Terminal Type |
Screw |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-25°C |
Name of Manufacturer/Packer/Importer |
ABB Ltd |
Supply Voltage |
690 V AC |
Motor Protection Component |
Circuit Breaker |
Manufacturer Model Number |
1SAM250000R1005MS116-1.0 |
Pack of |
Each of 1 Piece |
Horse Power |
0.5HP |
