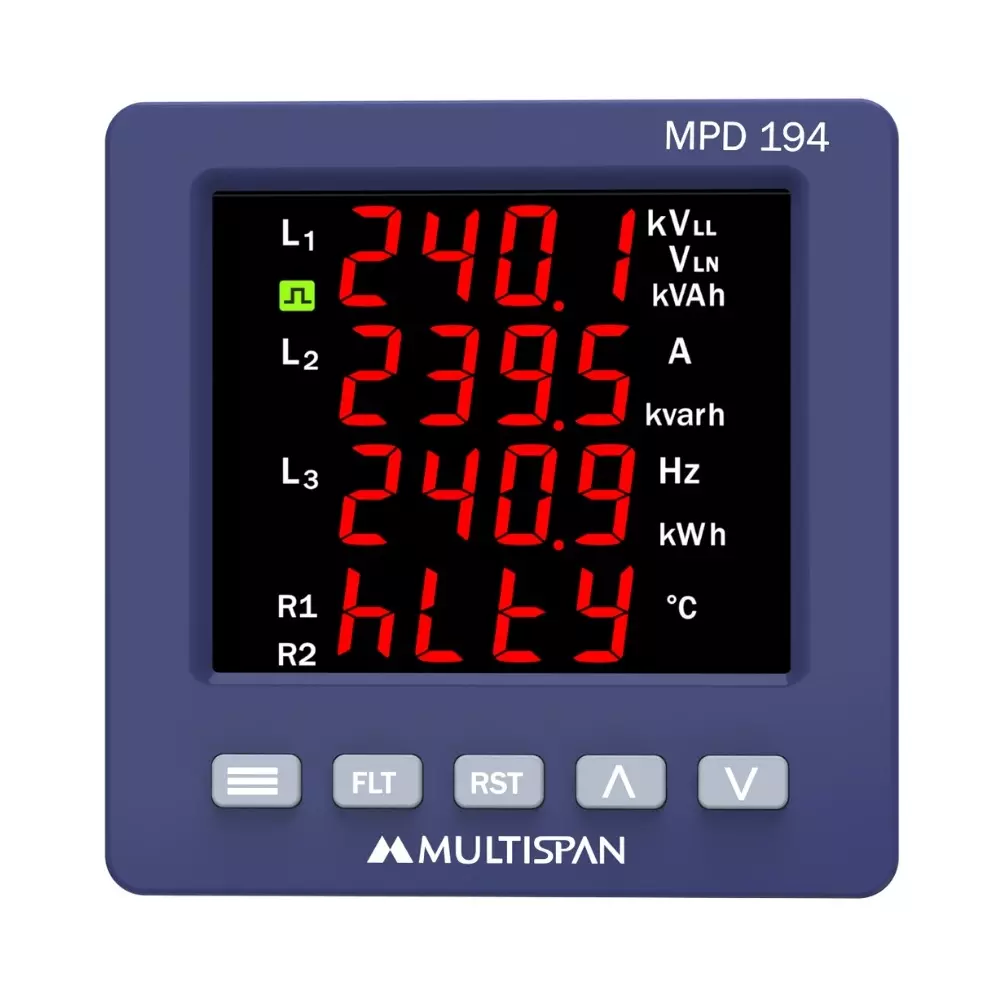

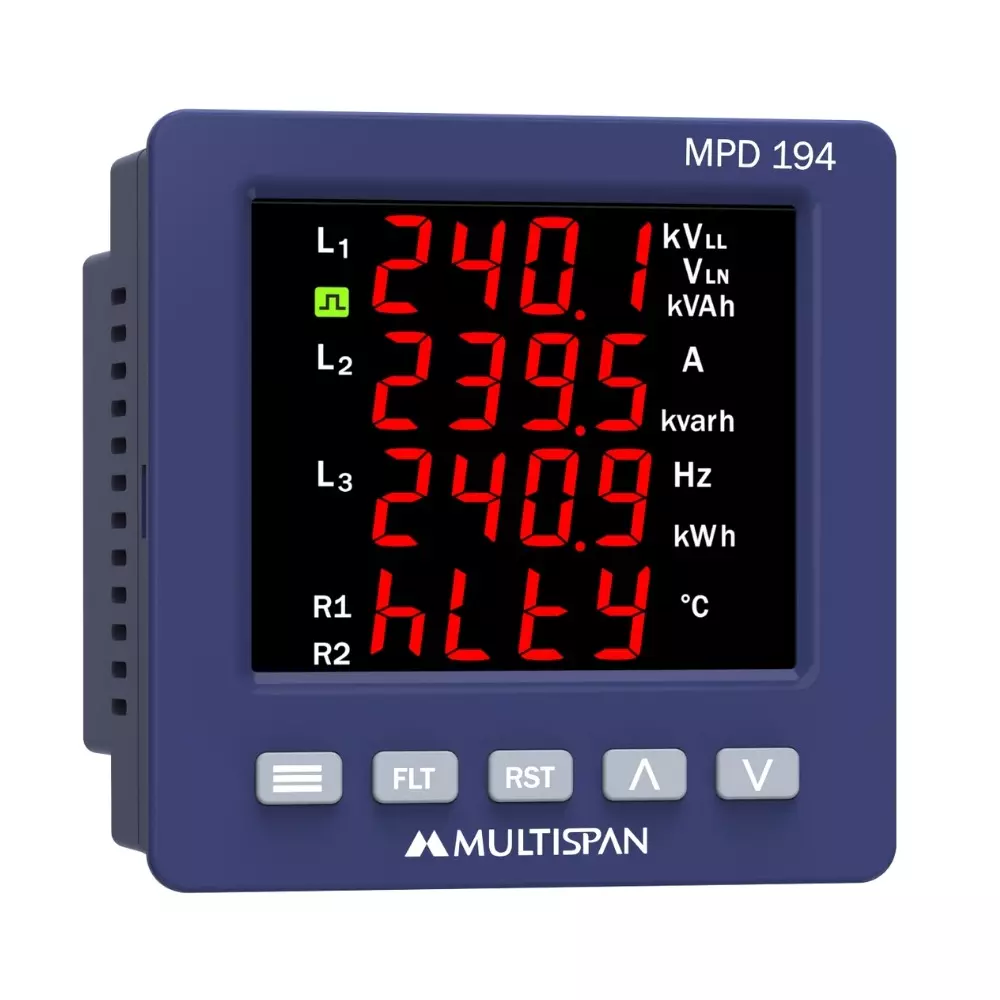

| Model No | MPD-194 |
| Type of Product | Motor Protection Device |
| Power | 0.000 - 9999 kW |
| Relative Humidity | Upto 95% RH (non-condensing) |
Model No |
MPD-194 |
Type of Product |
Motor Protection Device |
Power |
0.000 - 9999 kW |
Relative Humidity |
Upto 95% RH (non-condensing) |
Size |
96 X 96 X 62 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Supply Voltage |
50 to 550 V AC, 50/60 Hz |
Protection Level |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
Rating |
1st Relay 10 A, 250 V AC, 2nd Relay 10 A, 250 V AC |
Relay Type |
1st Relay ( NO - C - NC ), 2nd Relay ( NO - C - NC ) |
Power Consumption |
Approx 6 VA @ 230 V AC MAX |
Input Voltage (AC) |
30 to 320 V AC, 50 to 550 V AC |
Frequency Range |
45.0 to 60.0 Hz |
Load Hours Measurement |
9999.59 Hrs./Min. |
Key |
PROGRAM , FLT, RST, UP, DOWN |
Hours |
No Load: 9999.59 Hrs./Min. |
Panel Cutout |
92 (H) x 92 (W) mm |
Accuracy Class |
Class 0.5 (Standard) |
Input Current |
Up to 9999 A |
Relay |
2 |
Display |
4 Digit, 4 Line 0.50 inch (12.7 mm) RED |
Rpm |
3600 RPM @ 60 Hz & 2 pole |
Input Signal |
3Ø-3 Wire / 3Ø-4 Wire / 1Ø-2 Wire |
Operating Temperature |
0°C to 55°C |
System PF |
0.100 - 1.000 |
