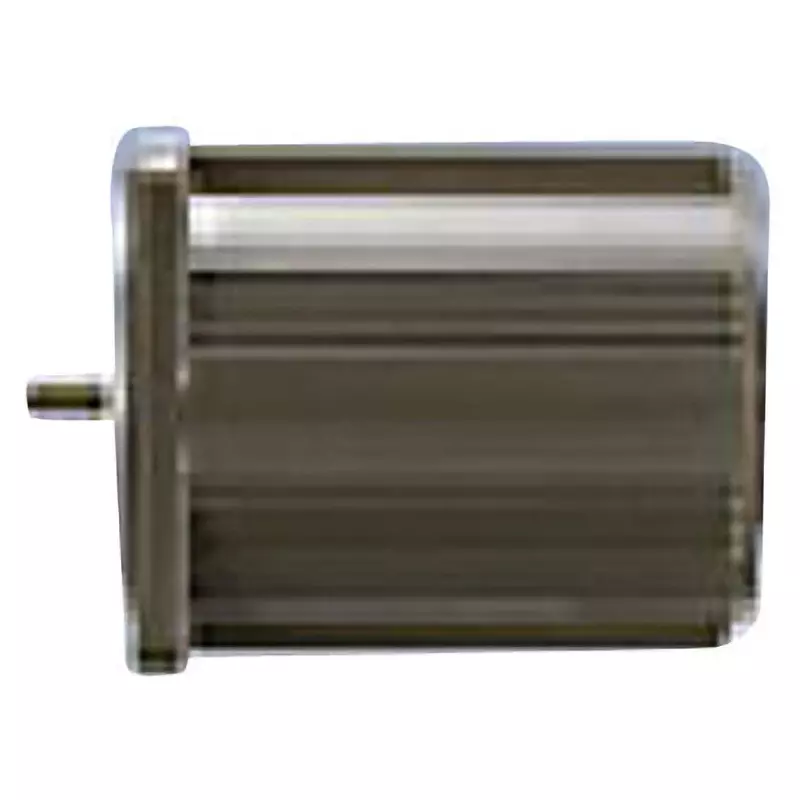

| Type | Reversible motor |
| Rated Current (A) | 0.26/0.24 |
| Type of Product | Reversible Motor |
| Model No | M8RX20G4Y |
Type |
Reversible motor |
Rated Current (A) |
0.26/0.24 |
Type of Product |
Reversible Motor |
Model No |
M8RX20G4Y |
Voltage |
200/200 V |
Monotaro ID |
8631542 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Size (mm) |
80 |
Import Country |
Direct Import from Japan |
Capacitor Capacitance (μF) |
1.8(400V)/1.8(400V) |
Specifications |
Hasuba gear |
Output (kW) |
0.02 |
Rated Time (minutes) |
30/30 |
Options |
Lead |
Frequency (Hz) |
50/60 |
Power Supply |
Alternating current |
Mass (Kg) |
1.2 |
Module |
0.5 |
No. of Pole |
4 |
Starting Current (A) |
0.37/0.36 |
Starting Torque (Nm (kgfcm)) (50/60Hz) |
0.13/0.13 |
Shank Shape |
Gear cutting axis |
No. of Teeth |
9 |
Type of Sign |
Flange mounting |

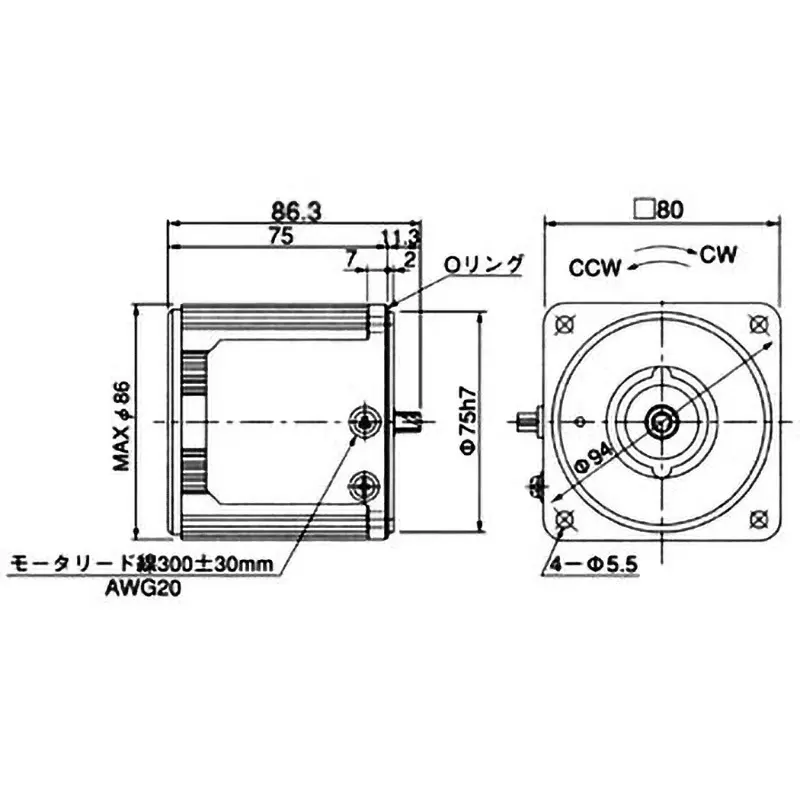

Outer Dimensions, Width W x Height H x Depth D (mm) |
80x86.3x86 |
