| Type | Reversible motor |
| Rated Current (A) | 0.37/0.38 |
| Type of Product | Reversible Motor |
| Model No | M7RX15G4L |
Type |
Reversible motor |
Rated Current (A) |
0.37/0.38 |
Type of Product |
Reversible Motor |
Model No |
M7RX15G4L |
Voltage |
100/100 V |
Monotaro ID |
8631515 |
Country of Origin |
CHINA |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Size (mm) |
70 |
Import Country |
Direct Import from Japan |
Capacitor Capacitance (μF) |
6(200V)/6(200V) |
Specifications |
Hasuba gear |
Output (kW) |
1.4999999999999999E-2 |
Rated Time (minutes) |
30/30 |
Options |
Lead |
Frequency (Hz) |
50/60 |
Power Supply |
Alternating current |
Mass (Kg) |
1.1000000000000001 |
Module |
0.5 |
No. of Pole |
4 |
Starting Current (A) |
0.59/0.57 |
Starting Torque (Nm (kgfcm)) (50/60Hz) |
0.085/0.085 |
Shank Shape |
Gear cutting axis |
No. of Teeth |
7 |
Type of Sign |
Flange mounting |

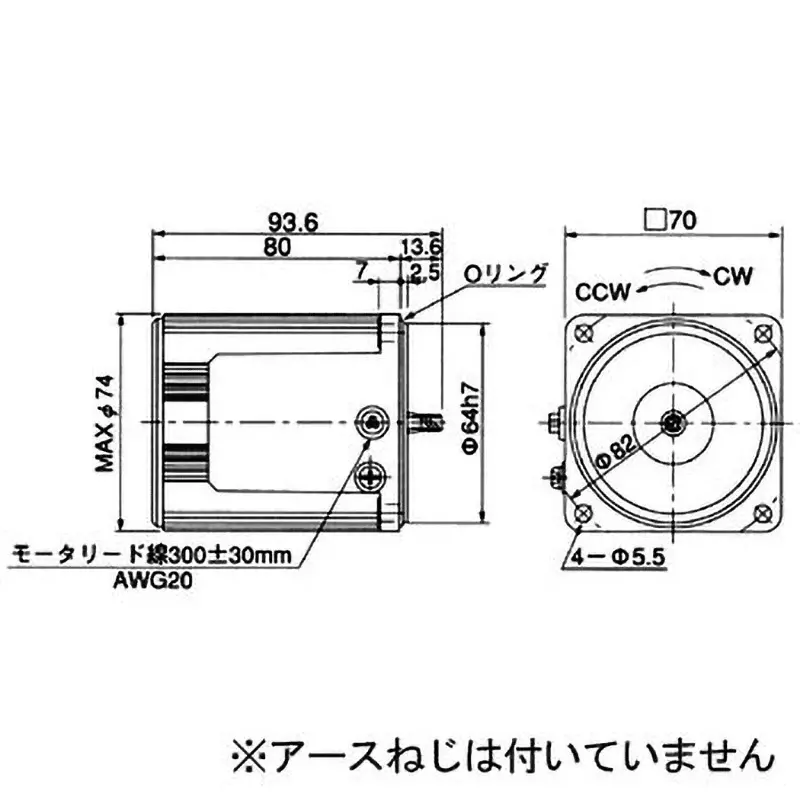

Outer Dimensions, Width W x Height H x Depth D (mm) |
70x93.6x74 |
