| Type of Product | Stepper Motor + Stepper Driver + Flexible Coupling + Threaded Rod + Brass Nut |
| Series | ISC 1205-C |

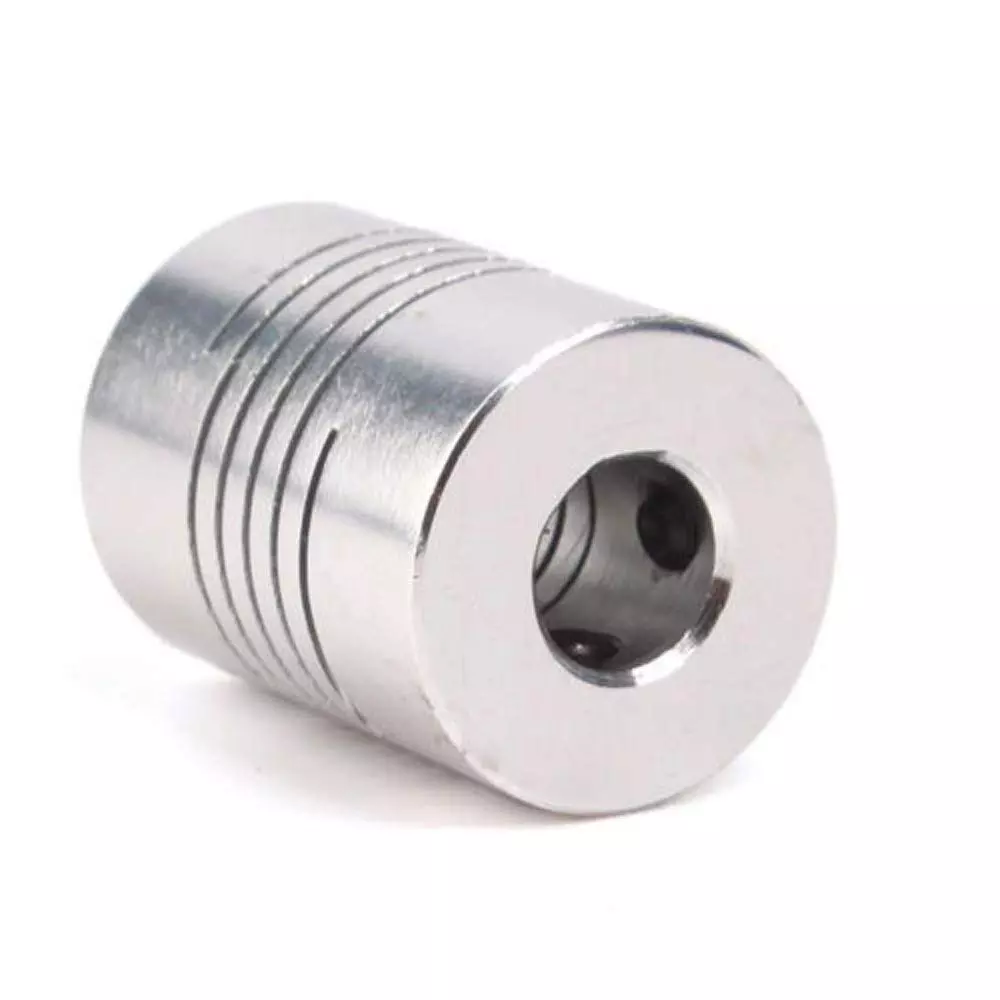

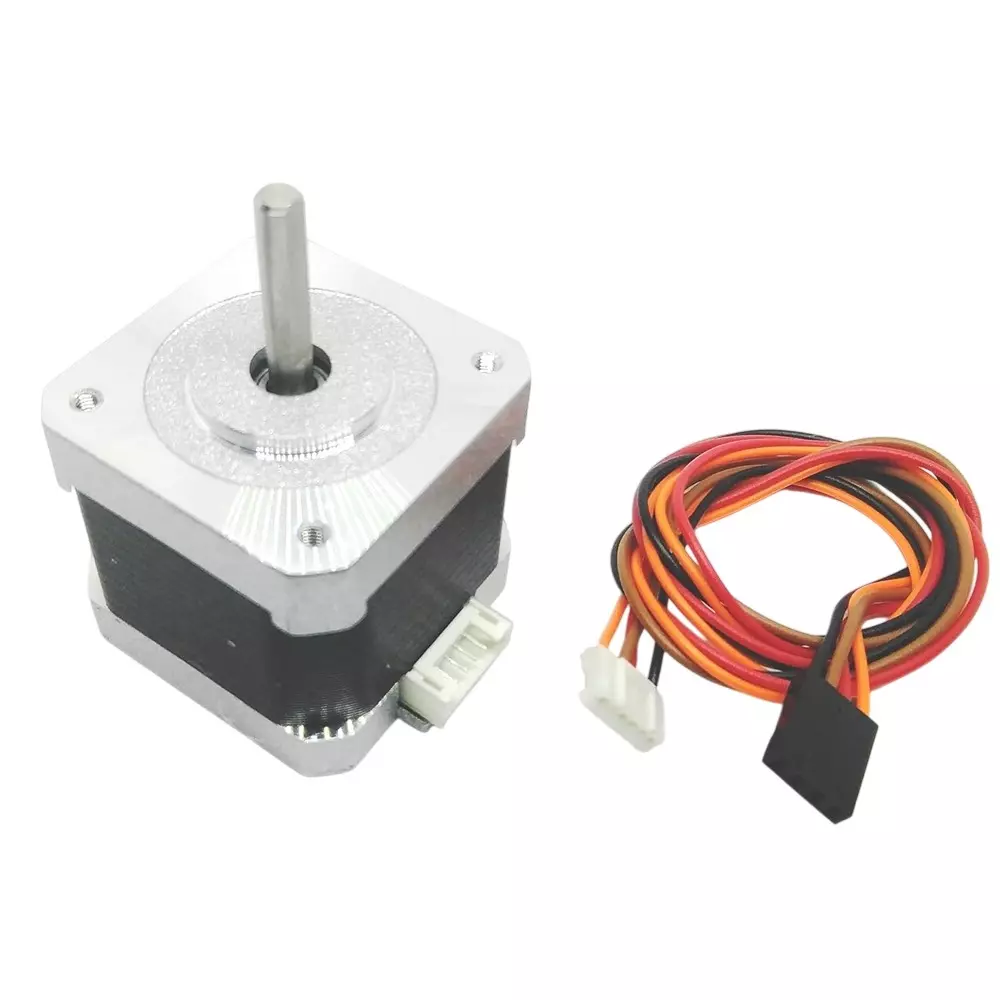

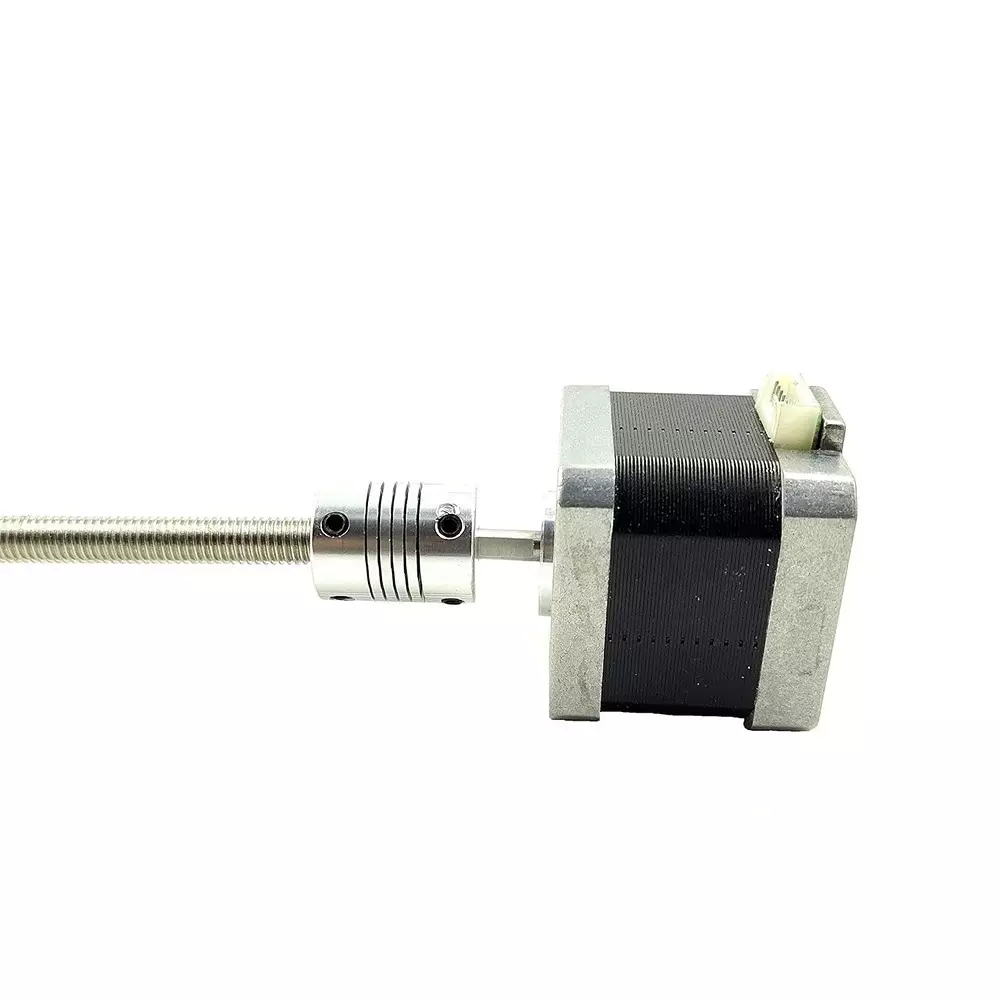

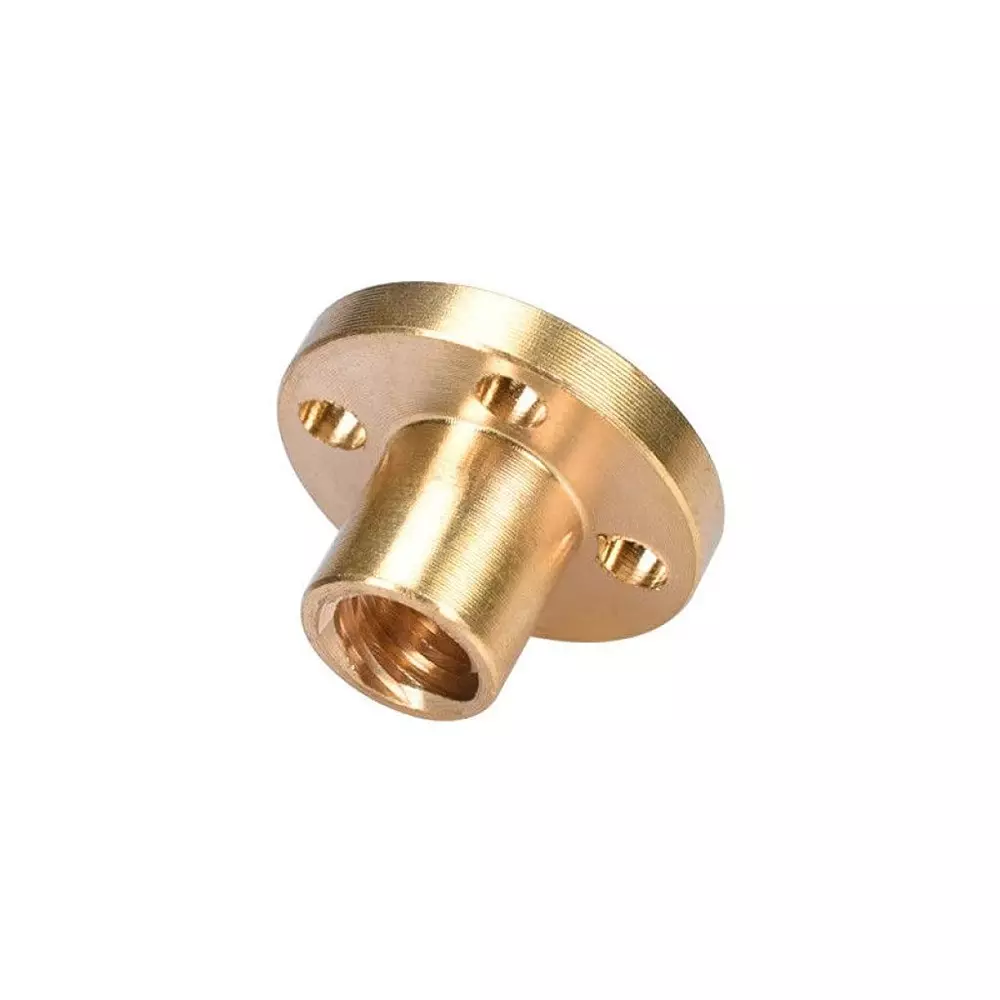

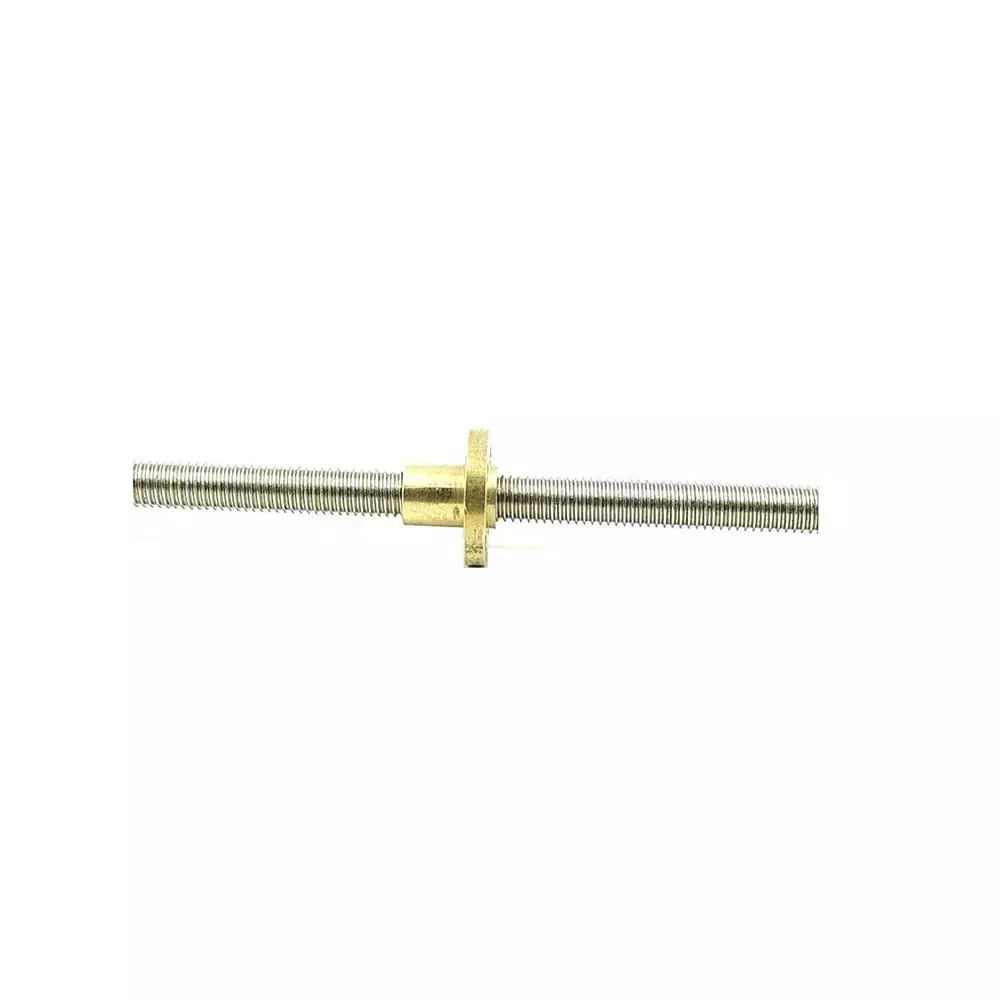

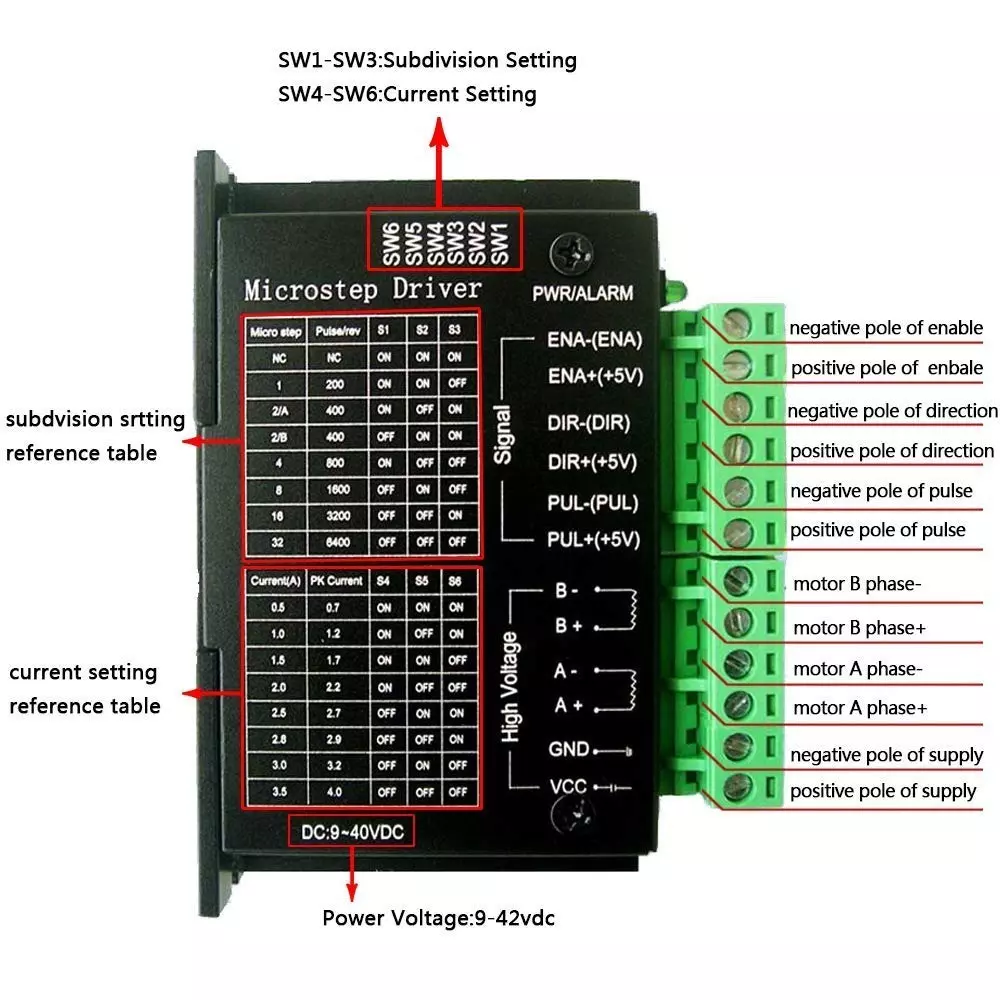

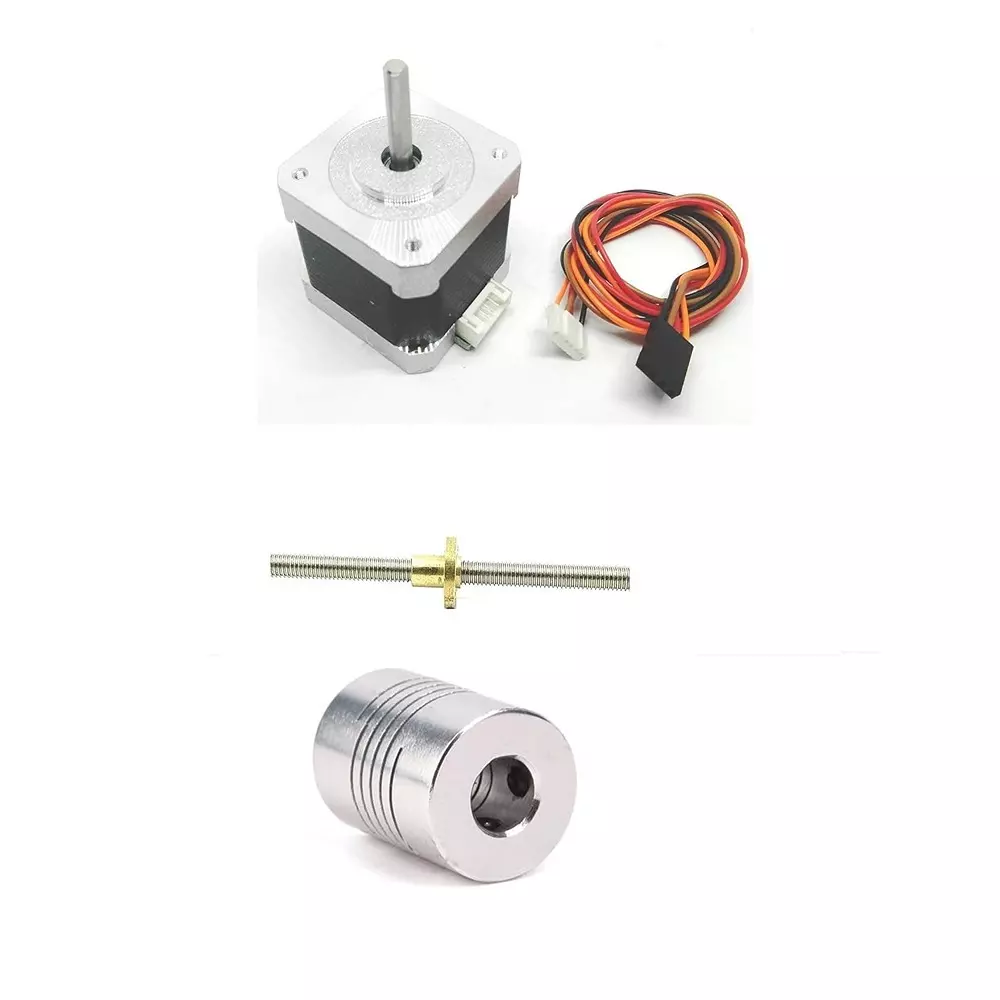

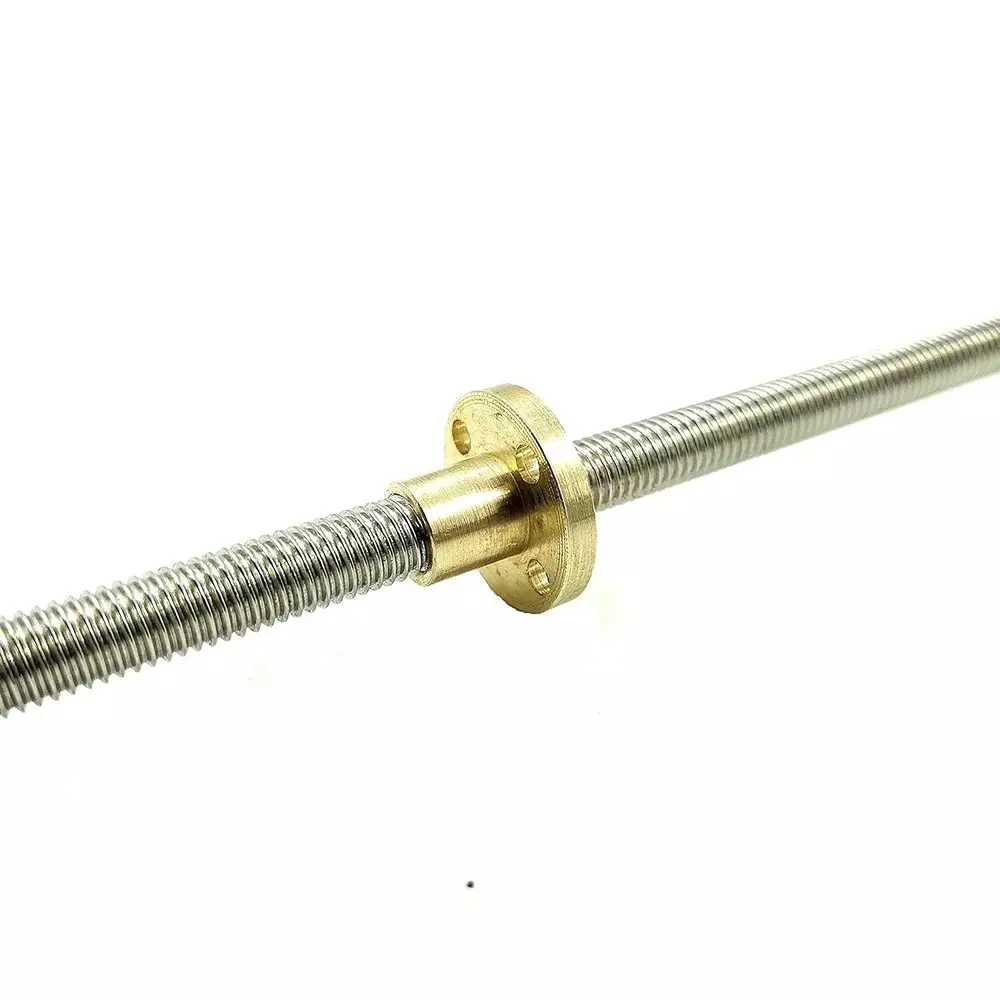

| Package Contains | 1x Nema 23 Stepper Motor, 1x TB6600 Stepper Driver, 1x Flexible coupling, 1x Threaded Rod, 1x Brass Nut |
| Rated Current | 3 A/Phase (Peak Value) |
Type of Product |
Stepper Motor + Stepper Driver + Flexible Coupling + Threaded Rod + Brass Nut |
Series |
ISC 1205-C |
Package Contains |
1x Nema 23 Stepper Motor, 1x TB6600 Stepper Driver, 1x Flexible coupling, 1x Threaded Rod, 1x Brass Nut |
Rated Current |
3 A/Phase (Peak Value) |
Material |
Alloy Steel |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
INVENTO SALES CORPORATION |
Pack of |
1 Kit |
Nut Material |
Brass |
Model Name |
Stepper Motor: Nema 23 |
Rod Length |
100 mm |
Phase Inductance |
4 mH±20% (1kHz 1V RMS) |
Phase Resistance |
1.2 Ω±10% (20°C) |
Step Angle |
1.8° |
Outside Diameter |
Rod: 10 mm |
Thread Type |
M10 |
Rod Material |
Stainless Steel 304 |
Insulation Class |
B (130°), 80K Max. |
Rated Voltage |
3.6 V DC |
Holding Torque |
25 Kg-cm |
Pitch |
1.5 mm |
