Ships within 6 days
Rod Length
View
View
View
View

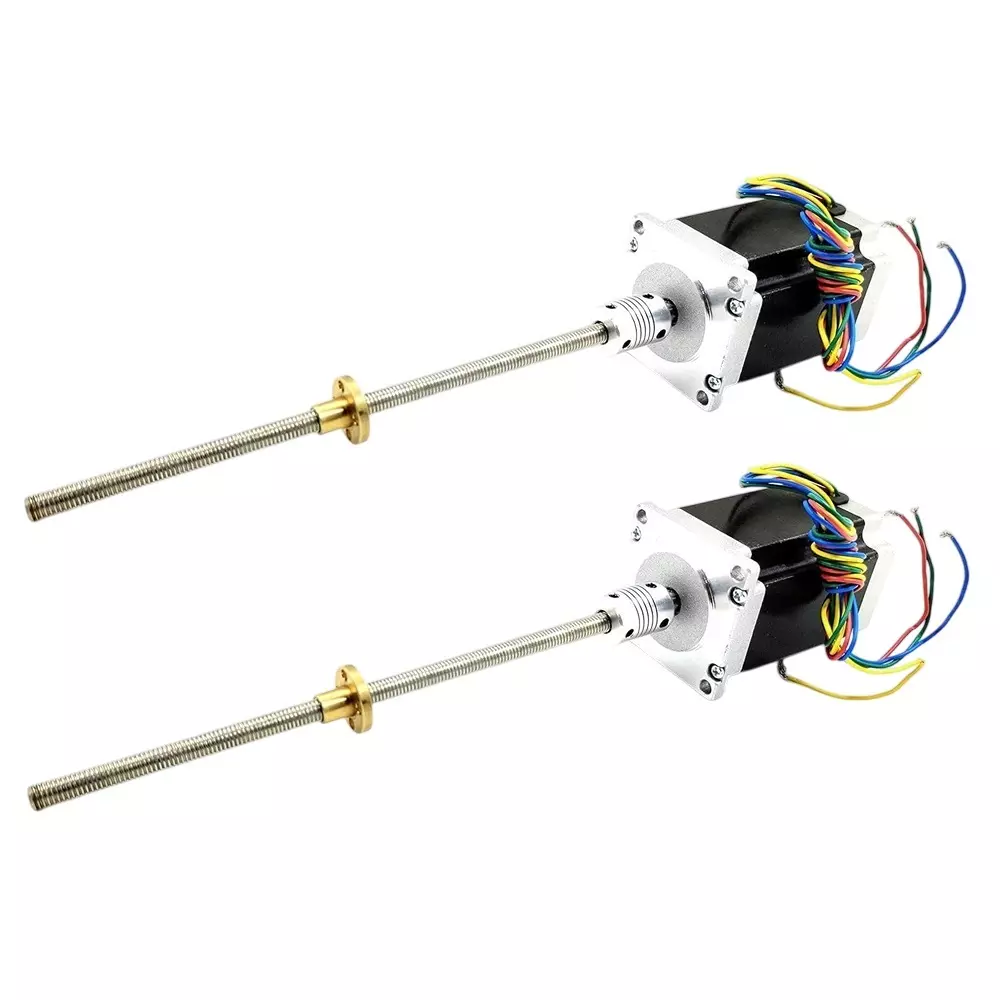

| Type of Product | Stepper Motor + Flexible Coupling + Threaded Rod + Brass Nut |
| Series | ISC 1205-A1 |
| Package Contains | 2x Nema 23 Stepper Motor, 2x Flexible Coupling, 2x M10 Threaded Rod, 2x Brass Nut |
| Rated Current | 3 A/Phase (Peak Value) |
Type of Product |
Stepper Motor + Flexible Coupling + Threaded Rod + Brass Nut |
Series |
ISC 1205-A1 |
Package Contains |
2x Nema 23 Stepper Motor, 2x Flexible Coupling, 2x M10 Threaded Rod, 2x Brass Nut |
Rated Current |
3 A/Phase (Peak Value) |
Material |
Alloy Steel |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
INVENTO SALES CORPORATION |
Phase |
2-Phase |
Pack of |
2 Kit |
Nut Material |
Brass |
Model Name |
Stepper Motor: Nema 23 |
Rod Length |
150 mm |
Phase Inductance |
4 mH±20% (1kHz 1V RMS) |
Phase Resistance |
1.2 Ω±10% (20°C) |
Step Angle |
1.8° |
Outside Diameter |
Rod: 10 mm |
Thread Type |
M10 |
Rod Material |
Stainless Steel 304 |
Coupling Size |
8-10 mm |
Insulation Class |
B (130°), 80K Max. |
Rated Voltage |
3.6 V DC |
Holding Torque |
25 Kg-cm |
Pitch |
1.5 mm |
