| Model No | B84114D0000B060 |
| Type of Product | Flange Mount EMC Filter |
| Series | B84114D |
| Country of Origin | USA |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
B84114D0000B060 |
Type of Product |
Flange Mount EMC Filter |
Series |
B84114D |
Country of Origin |
USA |

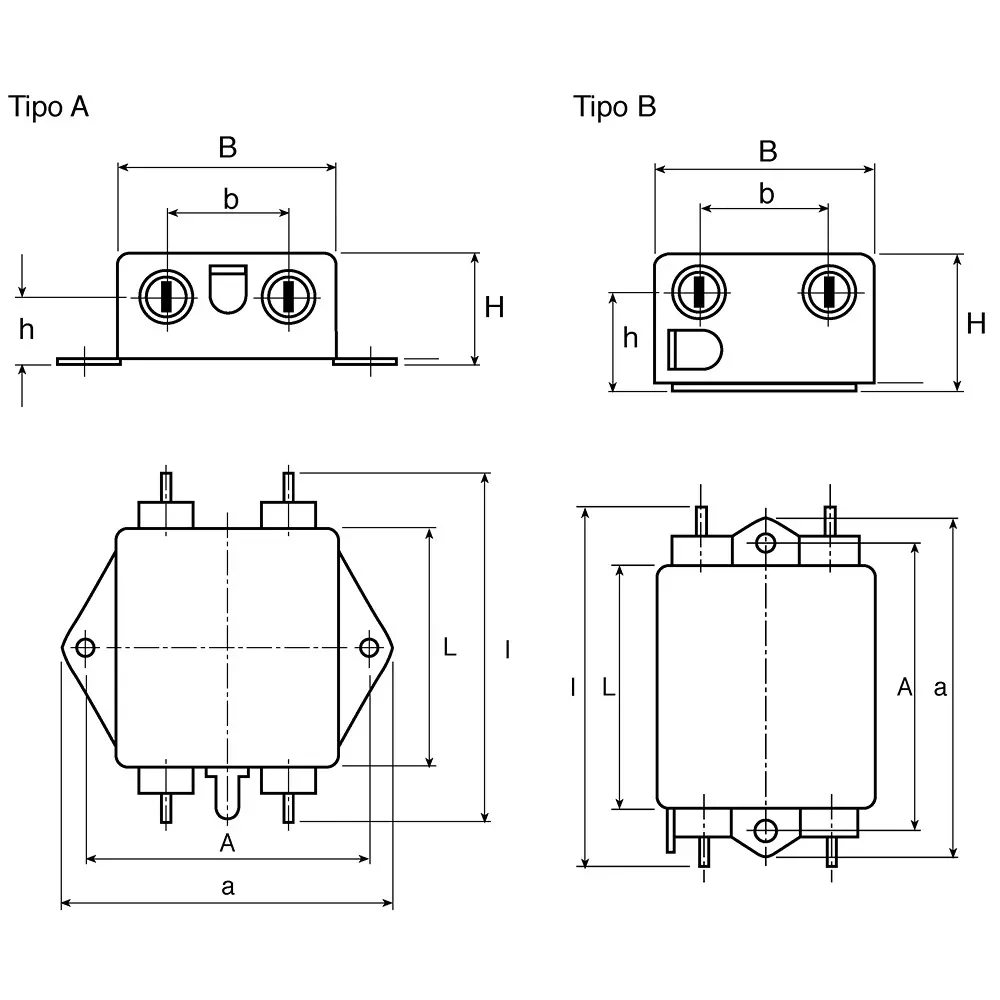

Dimension |
101.5x50.8x31.8 mm |
Mounting Type |
Flange Mount |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Voltage Rating |
250 V AC/DC |
Operating Frequency |
60Hz |
Height |
31.8 mm |
No. of Phases |
1 Phase |
Termination Style |
Tab |
Length |
101.5 mm |
Maximum Current Rating |
6 Amp |
Depth |
50.8 mm |
Maximum Operating Temperature |
+85°C |
Minimum Operating Temperature |
-25°C |
Inductance |
2 x 4.7 mH |
Capacitance |
2 x 0.47 μF, 2 x 4700 pF |
Leakage Current |
0.369 mA |
No. of Stages |
Single Stage |
