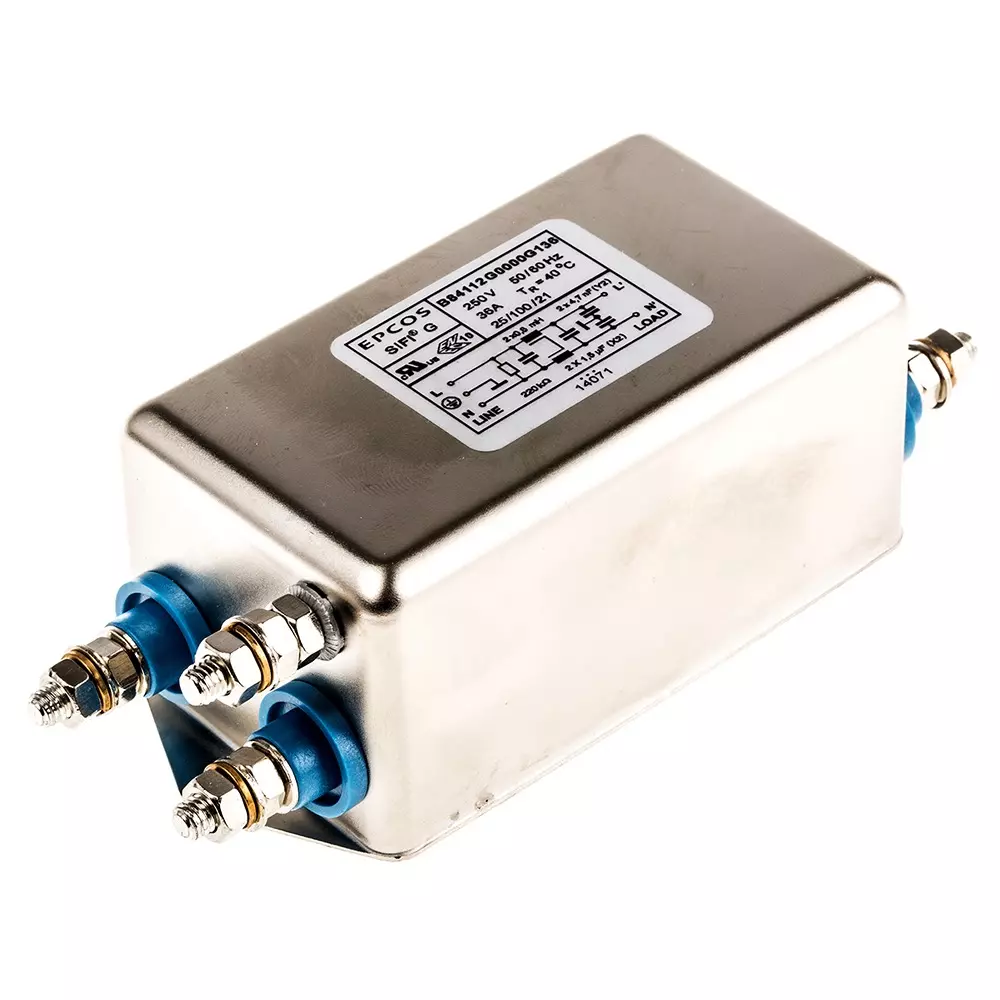

| Model No | B84112G0000G136 |
| Type of Product | Chassis Mount EMC Filter |
| Series | B84112G |
| Country of Origin | China |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
B84112G0000G136 |
Type of Product |
Chassis Mount EMC Filter |
Series |
B84112G |
Country of Origin |
China |
Dimension |
52x135x43 mm |
Mounting Type |
Chassis Mount |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Voltage Rating |
250 V AC/DC |
Operating Frequency |
50 - 60Hz |
Height |
43 mm |
No. of Phases |
1 Phase |
Termination Style |
Screw |
Length |
52 mm |
Maximum Current Rating |
36 Amp |
Depth |
135 mm |
Maximum Operating Temperature |
+100°C |
Minimum Operating Temperature |
-25°C |
Inductance |
0.8 x 2 mH |
Capacitance |
1.5 x 2 μF, 4700 x 2 pF |
Leakage Current |
0.369 mA |
Standard Met |
UL 1283 |
No. of Stages |
Single Stage |
