| Model No | B84111A0000B120 |
| Type of Product | Flange Mount RFI Filter |
| Series | B84111A |
| Country of Origin | Hungary |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
B84111A0000B120 |
Type of Product |
Flange Mount RFI Filter |
Series |
B84111A |
Country of Origin |
Hungary |

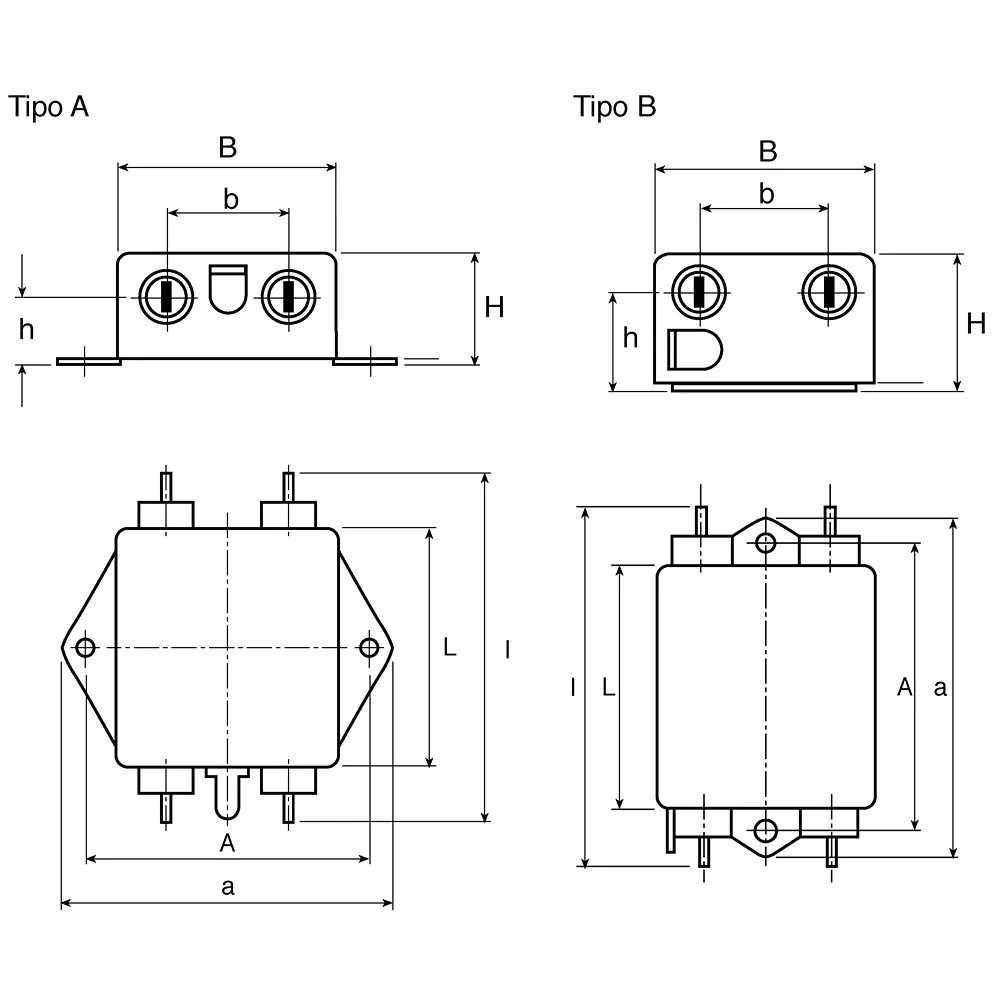

Dimension |
77x63.5x38 |
Mounting Type |
Flange Mount |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Voltage Rating |
250 V AC |
Operating Frequency |
60Hz |
Height |
38 mm |
No. of Phases |
1 Phase |
Termination Style |
Tab |
Length |
77 mm |
Maximum Current Rating |
20 Amp |
Depth |
63.5 mm |
Maximum Operating Temperature |
+85°C |
Minimum Operating Temperature |
-25°C |
Inductance |
0.47 x 2 mH |
Capacitance |
0.1 x 2 μF, 4700 x 2 pF |
Leakage Current |
0.369 mA |
No. of Stages |
Single Stage |
