| Model No | B84114D0000B030 |
| Type of Product | Flange Mount RFI Filter |
| Series | B84114D |
| Country of Origin | USA |
Model No |
B84114D0000B030 |
Type of Product |
Flange Mount RFI Filter |
Series |
B84114D |
Country of Origin |
USA |

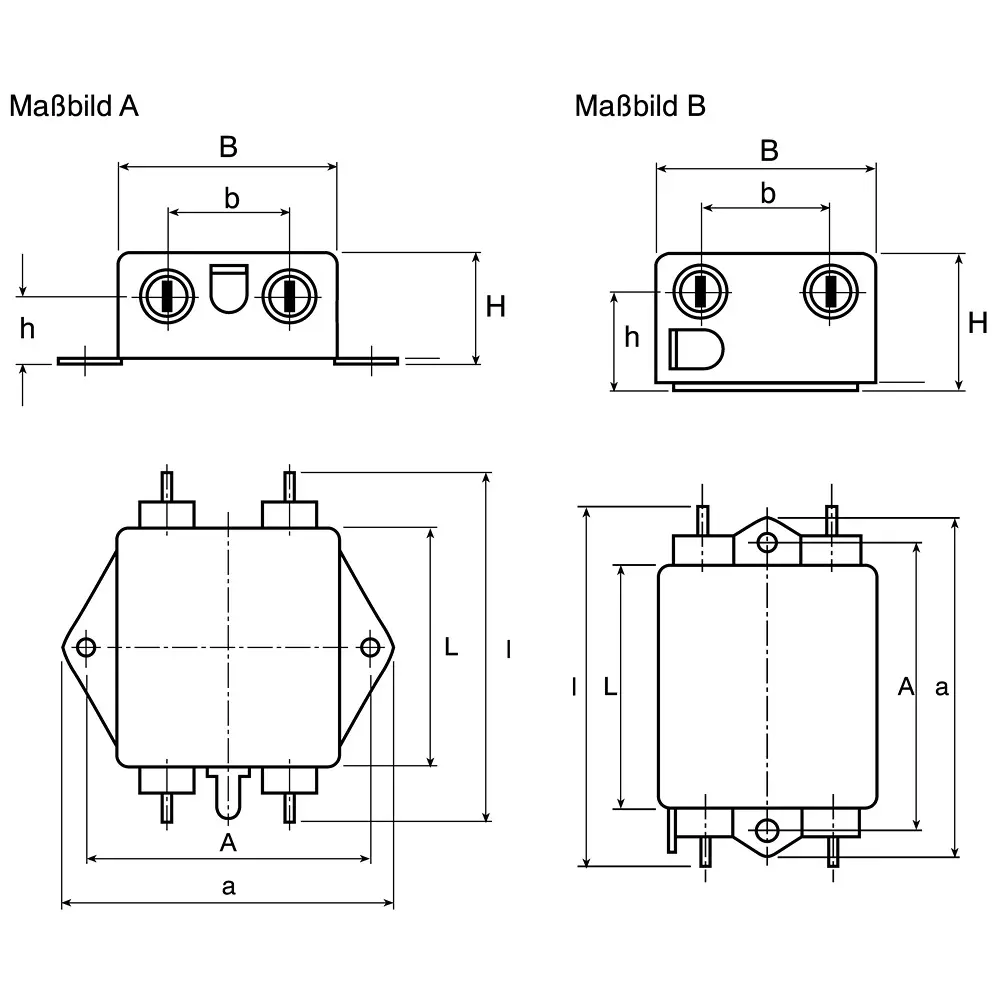

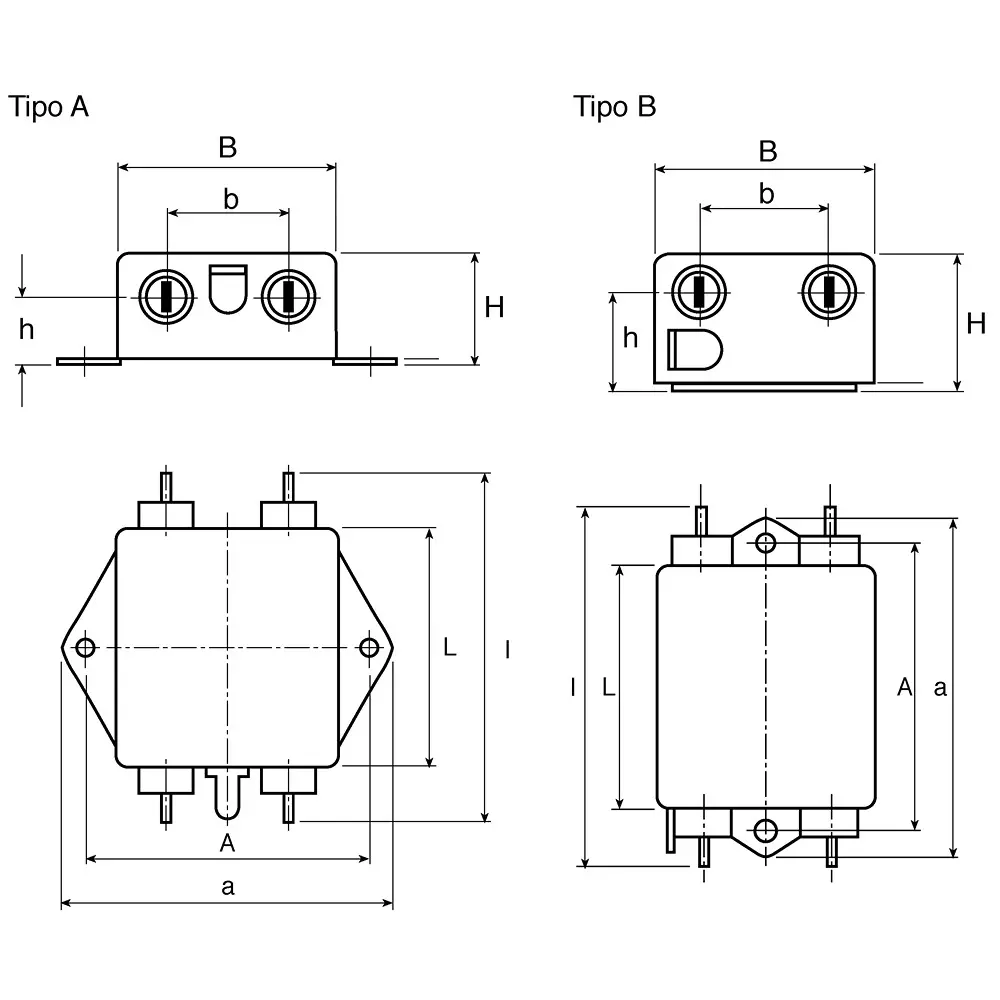

Dimension |
89.5x50.8x28.6 mm |
Mounting Type |
Flange Mount |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Voltage Rating |
250 V AC |
Operating Frequency |
50/60Hz |
Height |
28.6 mm |
No. of Phases |
1 Phase |
Termination Style |
Tab |
Length |
89.5 mm |
Maximum Current Rating |
3 Amp |
Depth |
50.8 mm |
Maximum Operating Temperature |
+85°C |
Minimum Operating Temperature |
-25°C |
Inductance |
5.6 x 2 mH |
Capacitance |
0.47 x 2 μF, 4700 x 2 pF |
Leakage Current |
0.369 mA |
No. of Stages |
Single Stage |
