| Model No | B84131M0001G135 |

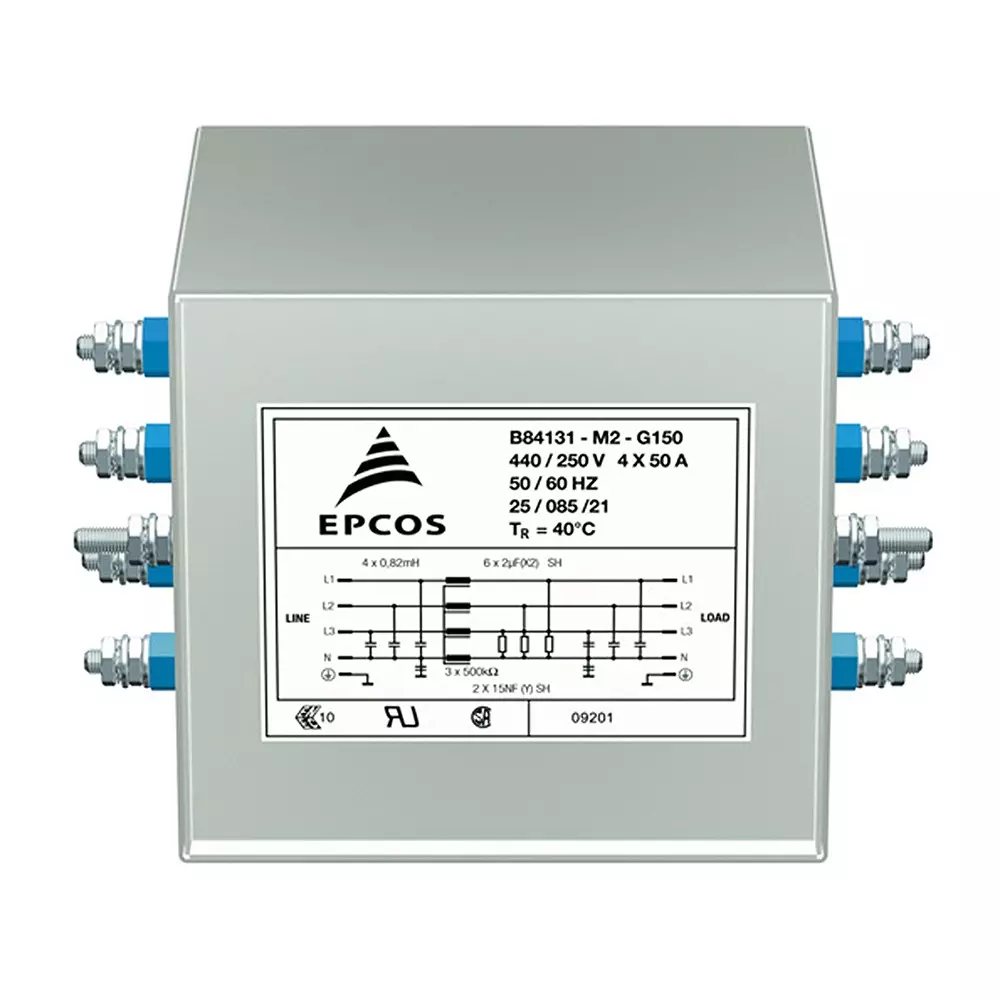

| Type of Product | Flange Mount EMC Filter |
| Series | B84131 |
| Country of Origin | USA |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
B84131M0001G135 |
Type of Product |
Flange Mount EMC Filter |
Series |
B84131 |
Country of Origin |
USA |
Dimension |
104x195x80 mm |
Mounting Type |
Flange Mount |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Voltage Rating |
250/440 V AC |
Operating Frequency |
50/60Hz |
Height |
80 mm |
No. of Phases |
3 Phase |
Termination Style |
Screw |
Length |
104 mm |
Maximum Current Rating |
35 Amp |
Depth |
195 mm |
Maximum Operating Temperature |
+85°C |
Minimum Operating Temperature |
-25°C |
Leakage Current |
0.064 mA |
Standard Met |
UL 1283 |
No. of Stages |
Single Stage |
