| Type of Product | Multi-MPPT String Inverter |
| Model No | SG20.0RT |
| Protection Degree | IP65 |
| Display | LED |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Multi-MPPT String Inverter |
Model No |
SG20.0RT |
Protection Degree |
IP65 |
Display |
LED |
Weight |
22 Kg |
Voltage Range |
160 V – 1000 V |
Maximum Input Power |
30 kWp |
Phase |
3 Phase |
Dimension |
370 mm x 480 mm x 195 mm |

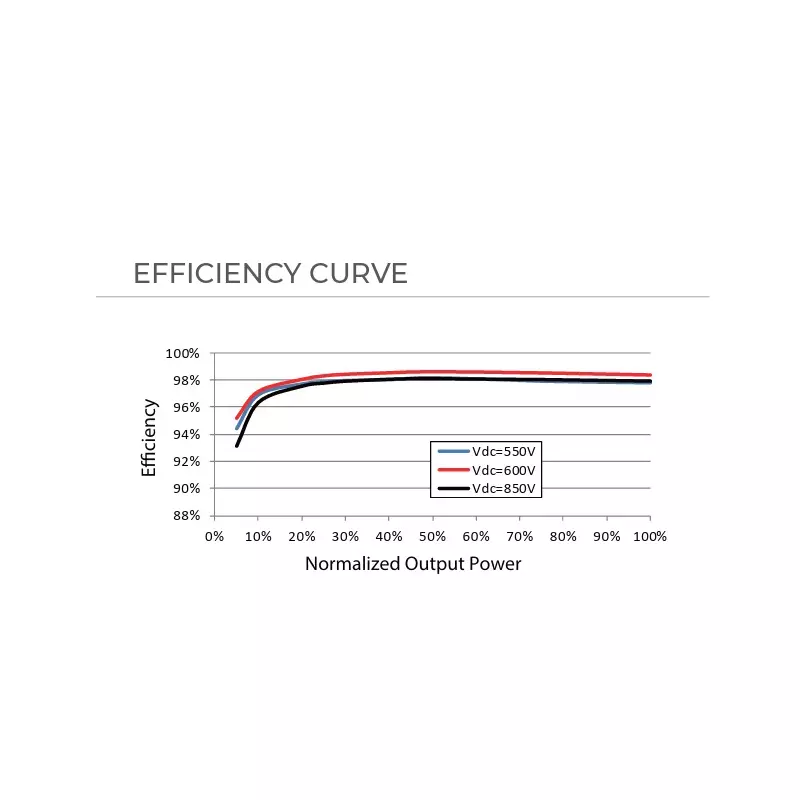

Maximum Efficiency |
0.98299999999999998 |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Sungrow India (HQ) 304,3rd Floor, Picasso Centre, Golf Course Extension Road Sector-61, Gurugram Haryana-122102 |
Surge Protection |
DC type II / AC type II |
Input Voltage |
1100 V |
Rated Input Voltage |
600 V |
Ambient Temperature Range |
-25 ℃ - 60 ℃ |
Harmonics |
< 3 % (THD) |
Rated Output Current |
31.9 A |
Maximum output power |
22000 VA |
Voltage Range (AC) |
175 V – 276 V / 304 V – 478 V |
Input Current |
64 A ( 32 A / 32 A ) |
Cooling Method |
Smart forced air cooling |
Rated Output Power |
20000 W |
Operating Altitude |
4000 m |
Mounting Method |
Wall-Mounting Bracket |

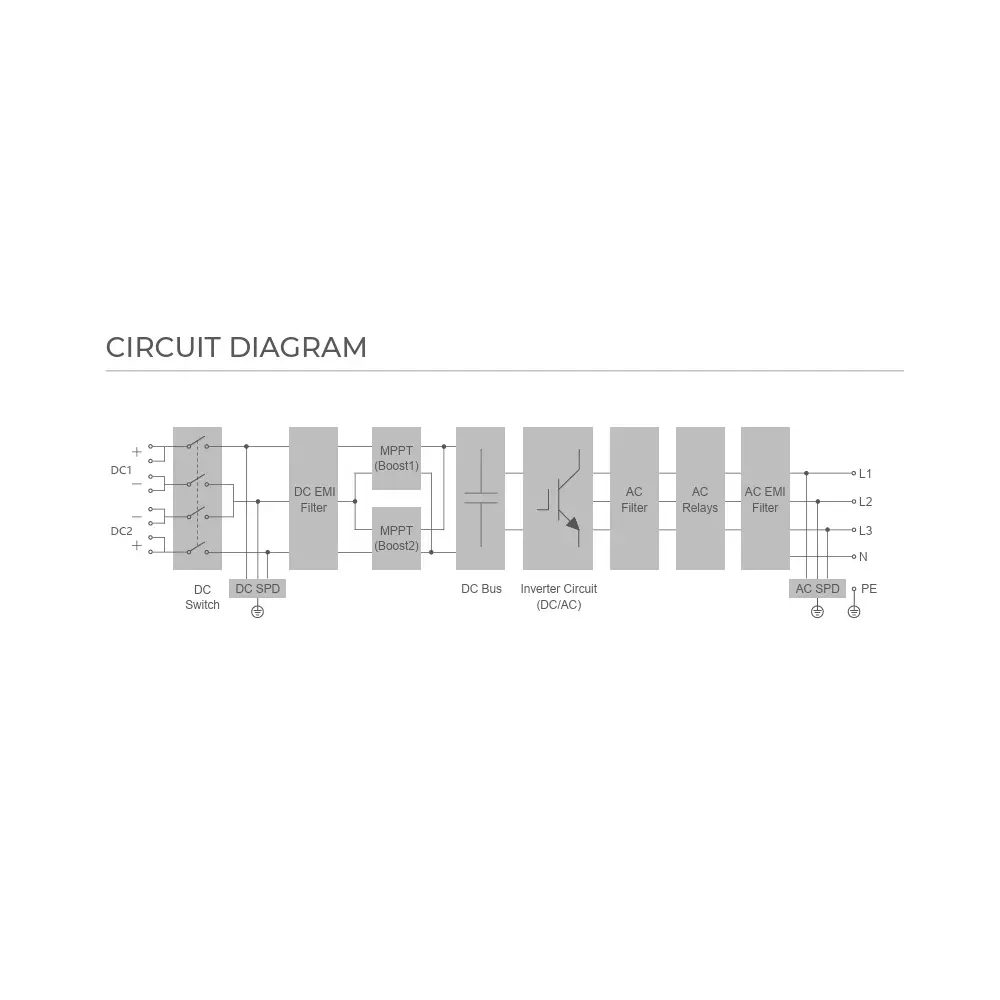

Topology |
Transformerless |
Grid Type |
Grid monitoring |
Humidity Range |
0 - 100 % |
Power Factor |
Adjustable 0.8 leading - 0.8 lagging |
Communication Function |
WLAN / Ethernet / RS485 / DI / DO |
AC Connection Type |
3-PE |
Power Consumption |
< 1 W |
