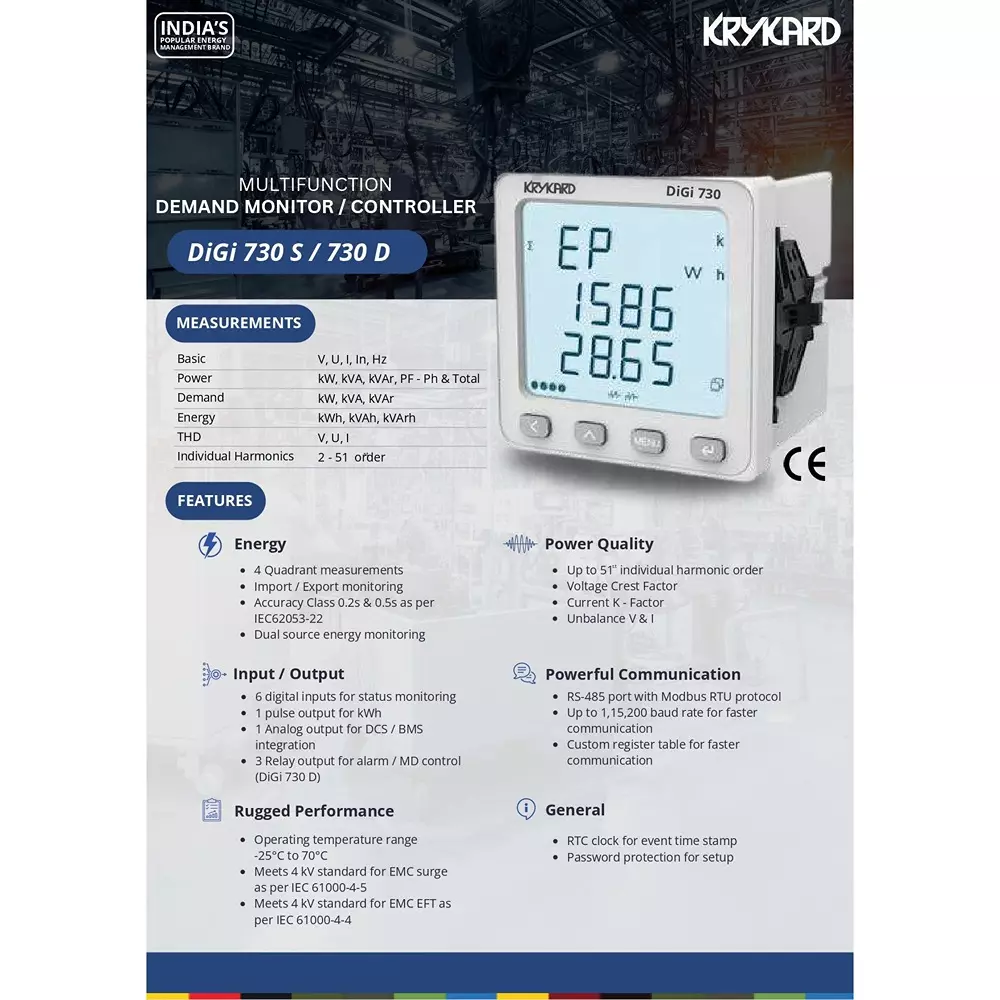

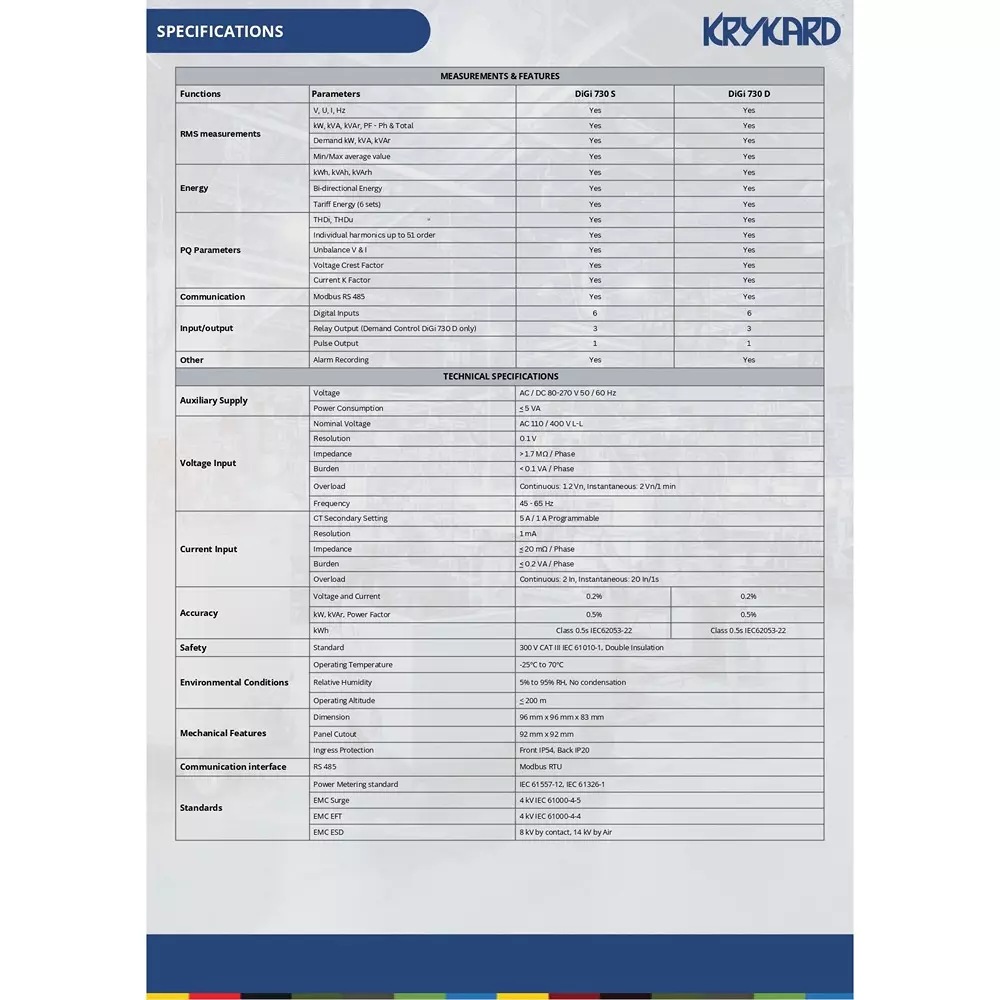

| Type of Product | Multi Function Power Meter |
| Model No | DIGI 730 D |
| Operating Temperature | -25°C to +70°C |
| Features | Individual Harmonics up to 51st order |
Type of Product |
Multi Function Power Meter |
Model No |
DIGI 730 D |
Operating Temperature |
-25°C to +70°C |
Features |
Individual Harmonics up to 51st order |
Dimension |
96 mm x 96 mm x 83 mm |
Relative Humidity |
5% to 95% RH, No condensation |
Operating Altitude |
< 200 m |
Voltage |
110/400 V LL |
Accuracy |
Class 0.5s |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Atandra Energy Private Limited |
Item Code |
DIGI 730 D Panel Meter |
Input/Output |
6 DI, 1 Pulse Output, 3 Relay Outputs, 1 Analog Output |
Ingress Protection |
Front IP54, Back IP20 |
Safety Standard |
300 V CAT III IEC 61010-1, Double Insulation |
Safety Rating |
CAT III 480V |
