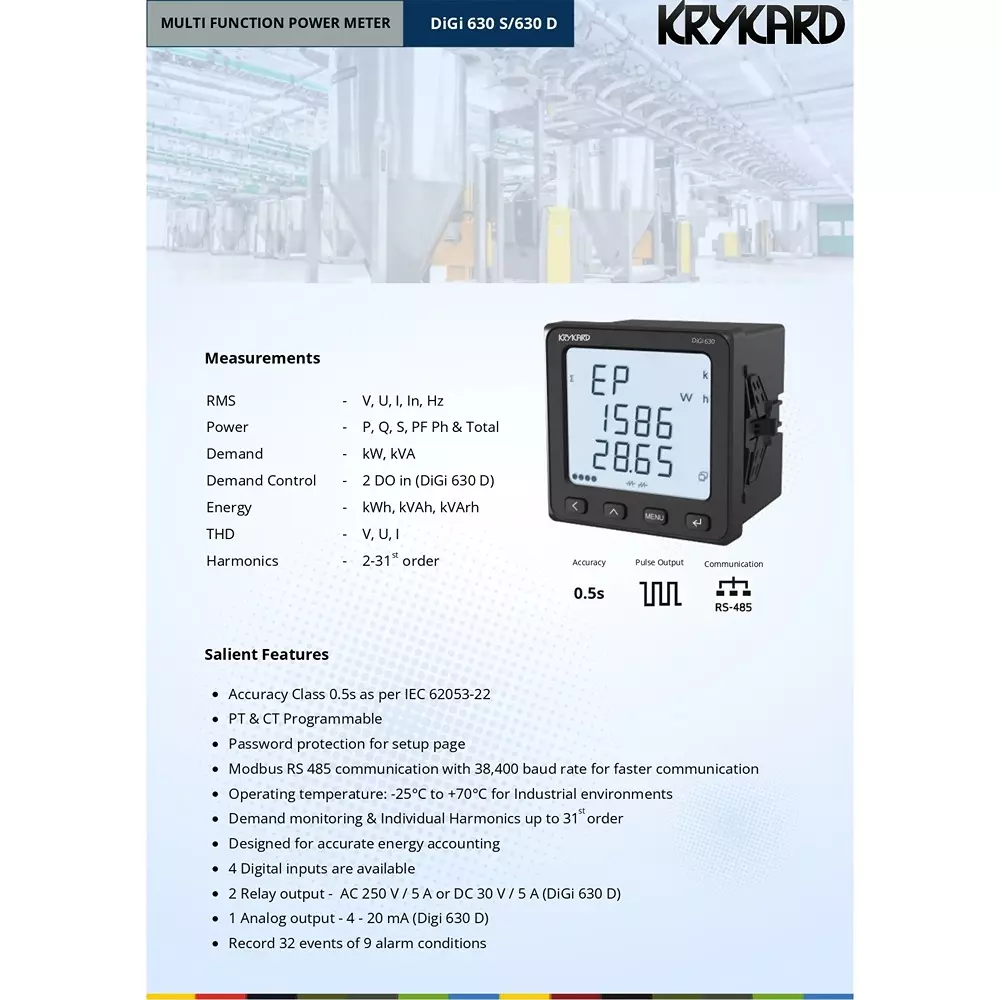

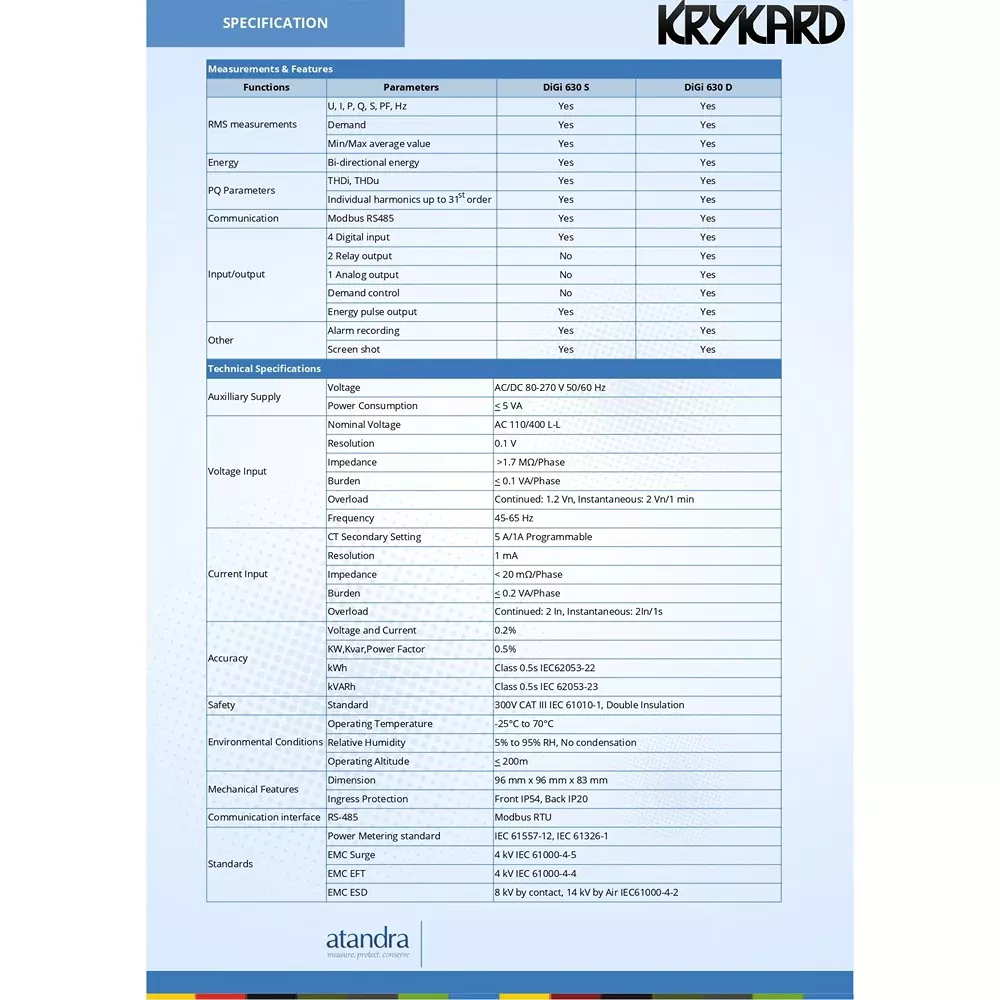

| Type of Product | Multi Function Power Meter |
| Model No | DIGI 630 S |
| Operating Temperature | -25°C to +70°C |
| Features | Record 32 events of 9 alarm conditions |
Type of Product |
Multi Function Power Meter |
Model No |
DIGI 630 S |
Operating Temperature |
-25°C to +70°C |
Features |
Record 32 events of 9 alarm conditions |
Dimension |
96 mm x 96 mm x 83 mm |
Display |
3-Line Bright LCD Display |
Power Consumption |
< 5 VA |
Voltage |
AC/DC 80-270 V |
Accuracy |
Class 0.2s |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Atandra Energy Private Limited |
Item Code |
DIGI 630 S Panel Meter |
Input/Output |
4 Digital Input: Yes; 2 Relay Output: No; 1 Analog Output: No; Demand Control: No; Energy Pulse Output: Yes |
Cut Out Size |
90 x 90 mm |
RMS Measurement |
U, I, P, Q, S, PF, Hz: Yes; Demand: Yes; Min/Max/ Average Values: Yes |
Harmonics |
Up to 31st order, THD |
Safety Rating |
CAT III 480V |
