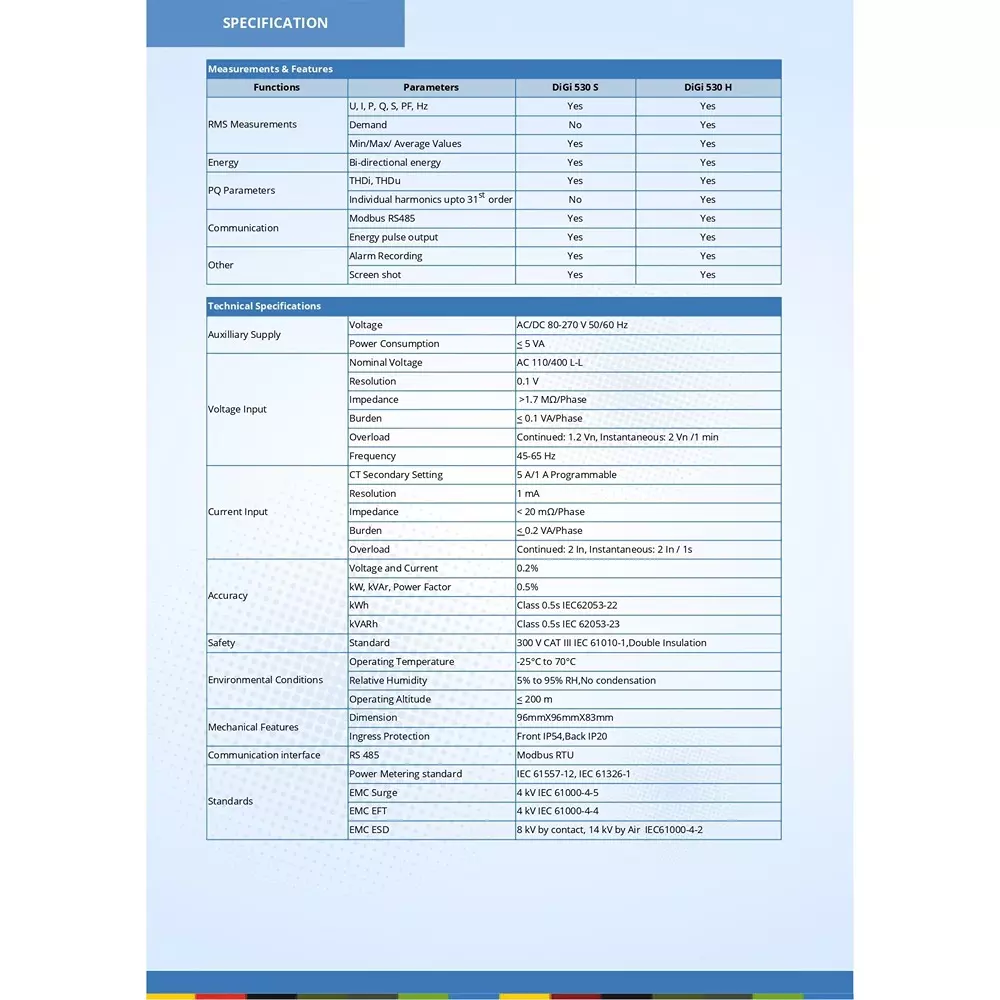

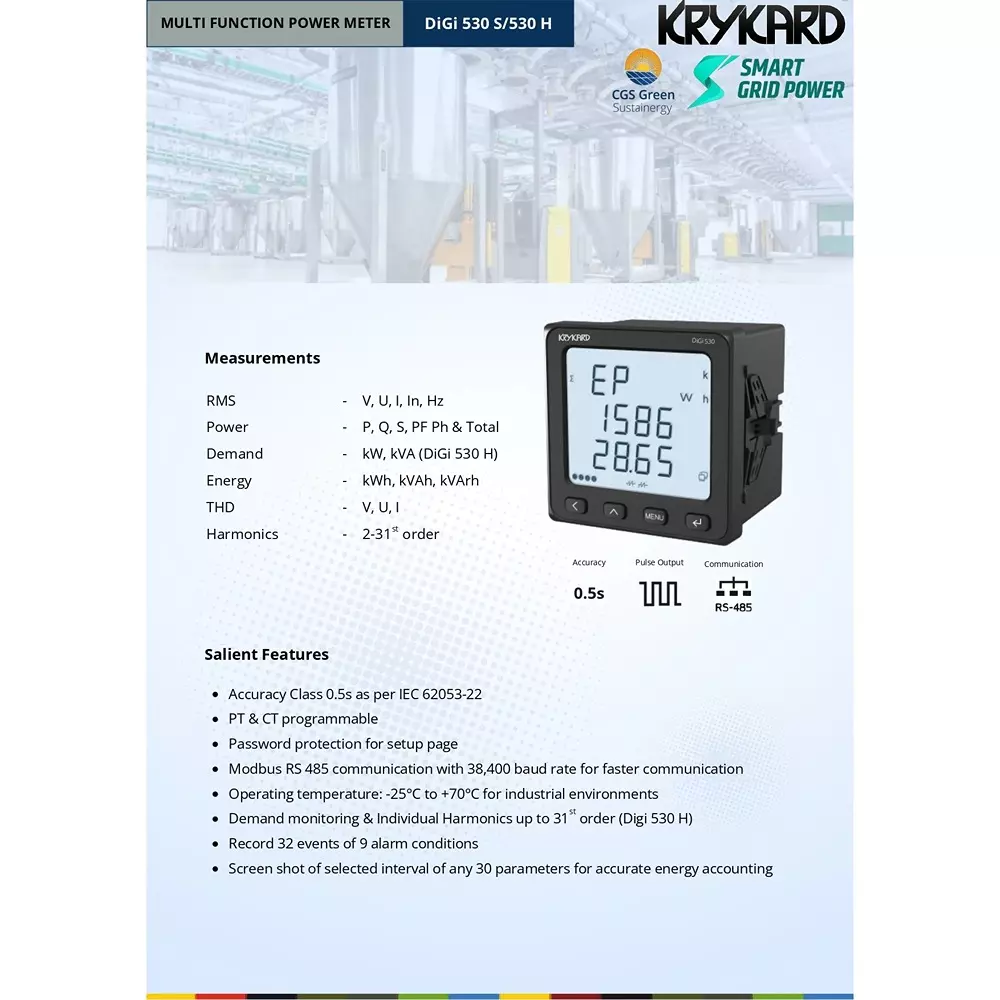

| Type of Product | Multi Function Power Meter |
| Model No | DIGI 530 S |
| Operating Temperature | -25°C to 70°C |
| Dimension | 96 mm x 96 mm x 83 mm |
Type of Product |
Multi Function Power Meter |
Model No |
DIGI 530 S |
Operating Temperature |
-25°C to 70°C |
Dimension |
96 mm x 96 mm x 83 mm |
Standard |
Power Metering standard: IEC 61557-12, IEC 61326-1; EMC Surge: 4 kV IEC 61000-4-5; EMC EFT: 4 kV IEC 61000-4-4; EMC ESD: 8 kV by contact, 14 kV by Air IEC61000-4-2 |
Relative Humidity |
5% to 95% RH,No Condensation |
Operating Altitude |
< 200 m |
Input Current |
CT Secondary Setting: 5 A/1 A Programmable; Resolution: 1 mA; Impedance: < 20 mΩ/Phase; Burden: < 0.2 VA/Phase; Overload: Continued: 2 In, Instantaneous: 2 In / 1s |
Accuracy |
Voltage and Current: 0.2%; kW, kVAr, Power Factor: 0.5%; kWh: Class 0.5s IEC62053-22; kVARh: Class 0.5s IEC 62053-23 |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Atandra Energy Private Limited |
Communication Interface |
RS 485: Modbus RTU |
Item Code |
DIGI 530 S Panel Meter |
Ingress Protection |
Front IP54, Back IP20 |
Safety Standard |
300 V CAT III IEC 61010-1,Double Insulation |
RMS Measurement |
U, I, P, Q, S, PF, Hz: Yes; Demand: No; Min/Max/ Average Values: Yes |
