| Type of Product | Digital Multifunction Meter |

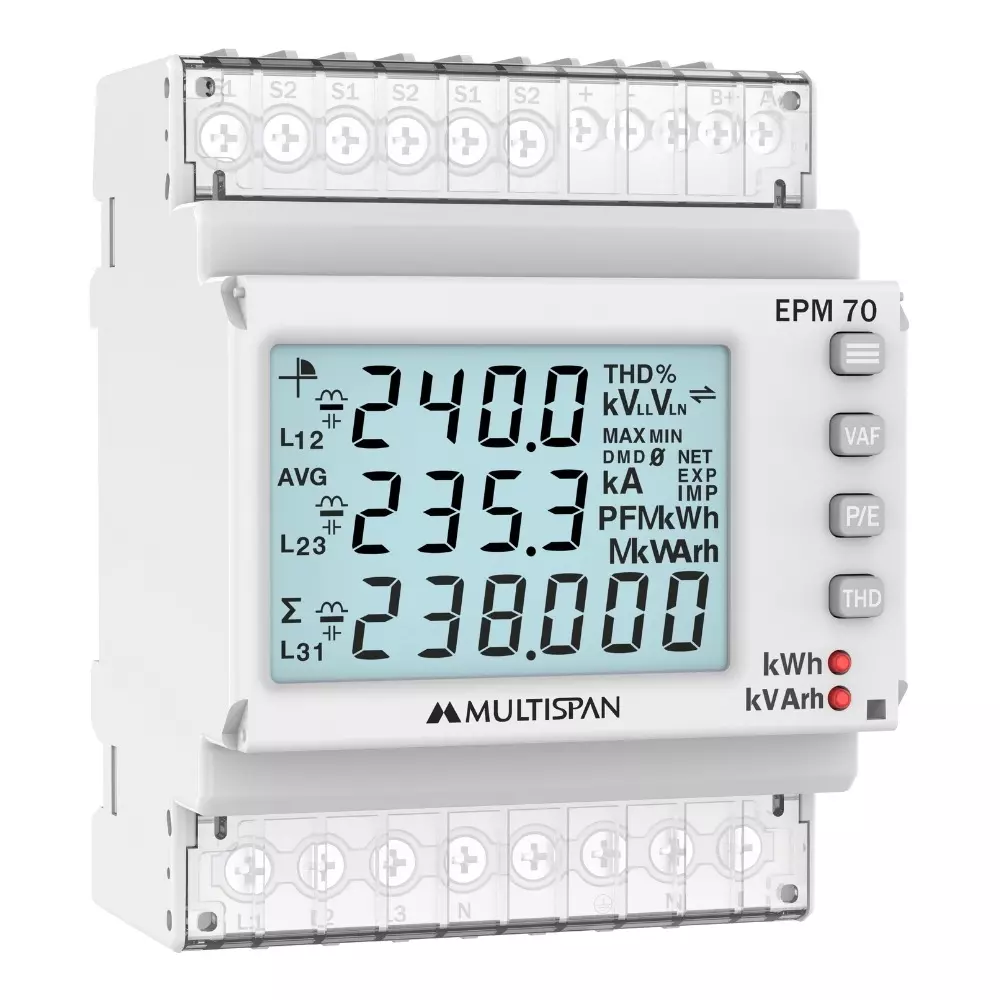

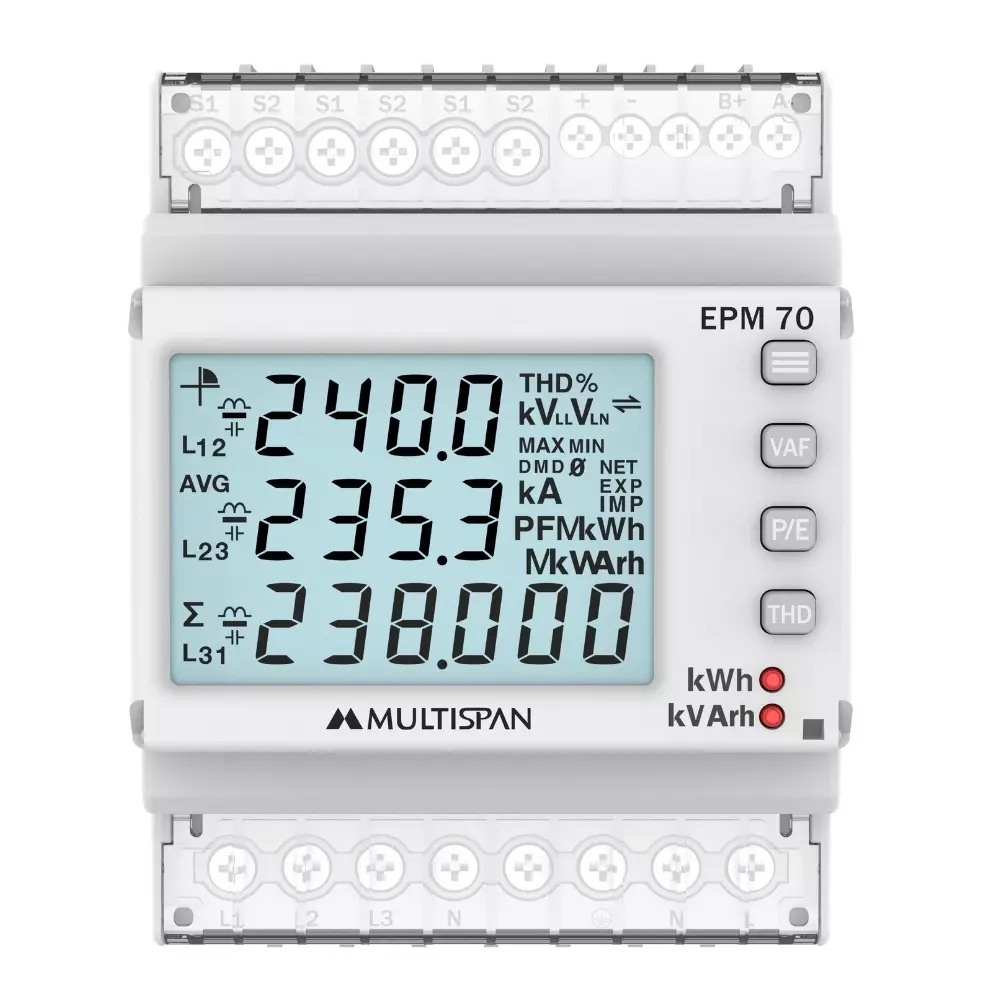

| Model No | EPM-70 |
| Accuracy Class | Class 0.5 |
| Power Supply | 100 to 300 V AC/DC, 50/60 Hz |
Type of Product |
Digital Multifunction Meter |
Model No |
EPM-70 |
Accuracy Class |
Class 0.5 |
Power Supply |
100 to 300 V AC/DC, 50/60 Hz |
Storage Temperature |
5 to 50°C |
Display |
Upper: 4 Digit 2 Line 7 seg 0.31 inch (7.87 mm) LCD, Lower: 6 Digit 1 Line 7 seg 0.31 inch (7.87 mm) LCD |
Relative Humidity |
95% RH Non-condensing |
Sampling Rate |
164 Scale / Cycle |
PT Secondary |
100 V to 520 V |
Voltage |
20 to 300 V AC ( L-N ), 35 to 520 V AC ( L-L ) |
Size |
90 X 70 X 60 mm |
Application |
Energy Management System, DG Set Panels, Power Control Center Panels, Motor Control Center Panels |
Meter Type |
1Φ2 W / 3Φ 4 W / 3Φ 3 W ( Selectable ) |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
CT Secondary |
By 5 A/1 A |
CT Primary |
Up to 9999 A |
Baud Rate |
2400, 4800, 9600, 19200, 38400 |
Pulse Width |
50 to 500 ms |
Interface |
RS-485 |
Secondary Current |
10 mA to 5 A AC |
Warm up Time |
5 Minutes |
Key |
PROG, VAF, P, E, & THD |
PT Primary |
100 V to 520 KV |
Current Thd Logging |
Up to 32 Level |
Protocol |
Modbus - RTU |
Voltage THD |
Up to 32 Level |
Transmission Distance |
500 m Maximum |
Parity Check |
None, Odd, Even |
Working Temperature |
5 to 50°C |
Current Capacity |
25 mA |
Communication Address |
1 to 125 |
