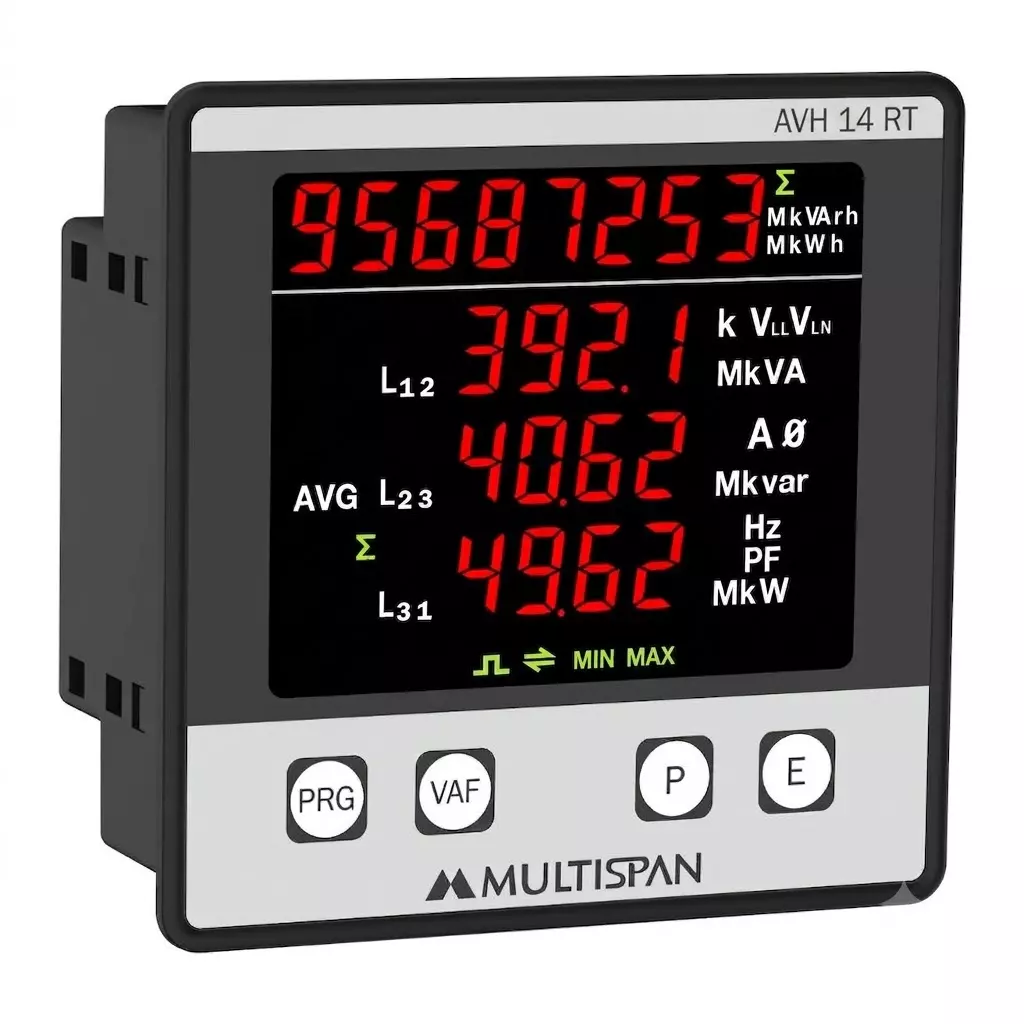

| Type of Product | Multifunction Meter |
| Model No | AVH-14-RT |
| Accuracy Class | Class 0.5 |
| Phase | 3 Phase |
Type of Product |
Multifunction Meter |
Model No |
AVH-14-RT |
Accuracy Class |
Class 0.5 |
Phase |
3 Phase |
Power Supply |
100 to 270 V AC/DC, 50/60 Hz |
Operating Temperature |
0°C to 55°C |
Storage Temperature |
0°C to 55°C |
Type |
With Retransmission |

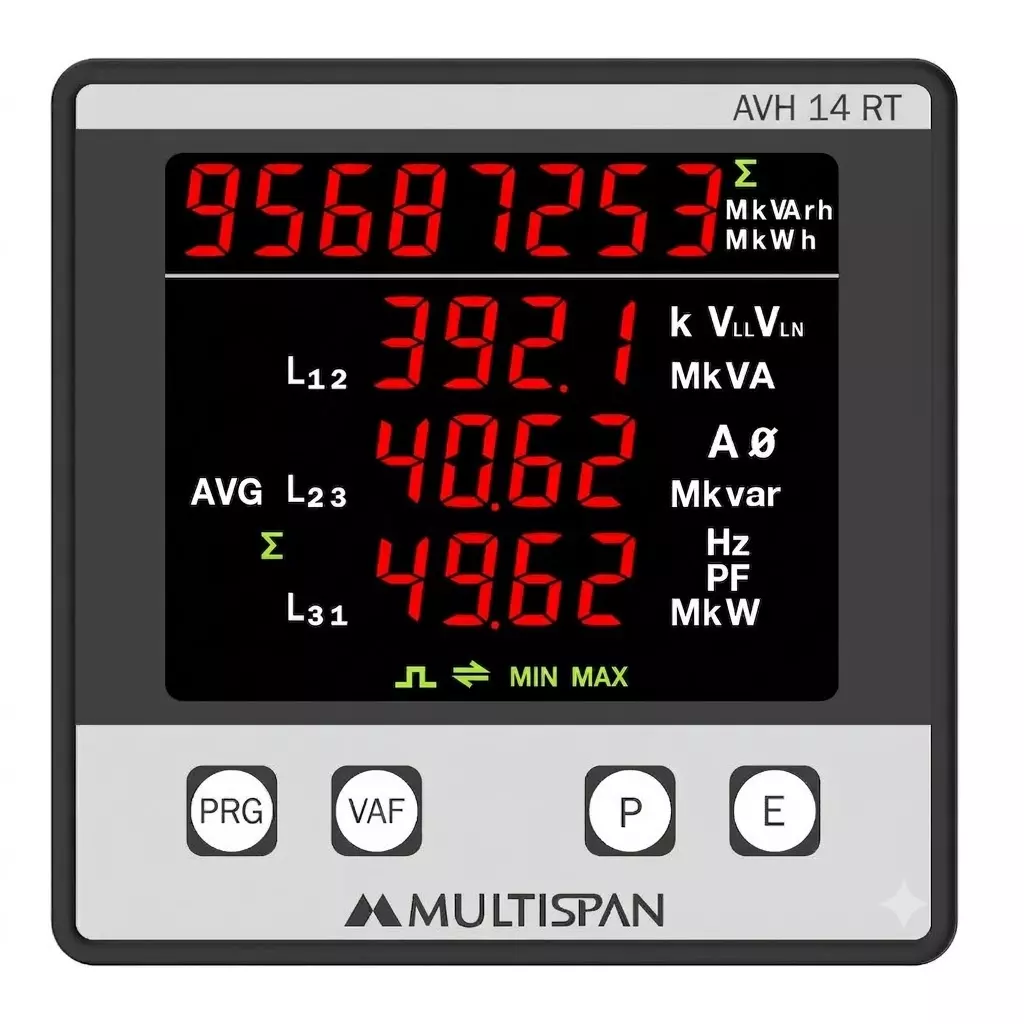

Display |
Upper 8 Digit 1 Line 7 seg 0.4 inch (10.16 mm), Lower 4 Digit 3 Line 7 seg 0.4 inch (10.16 mm) |
Relative Humidity |
UP to 95% RH (non-condensing) |
PT Secondary |
100 V to 520 V |
Size |
96 X 96 X 54 mm |
Mounting Type |
Panel Mount |
Output Current |
25 mA |
Current |
10 mA to 5A AC |
Application |
Control & Relay Panel, Original Equipment, Manufacturers (OEMs), Energy Management System, DG Set Panels, LT / HT Panel, Power Control Center Panels, Motor Control Center Panels |
Meter Type |
1Φ2 W / 3Φ 4 W / 3Φ 3 W ( Selectable ) |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
CT ratio |
Primary: Selectable upto 5/5 to 6000/5 A AC |
CT Secondary |
By 5 A/1 A |
CT Primary |
Up to 6000A |
Burden |
4 VA |
Pulse Width |
50 to 500 ms |
Parameters Measured |
P-P Voltage, P-N Voltage, Phase Current, Active Power (KW) (Per Phase & Average), Energy (KWH), Power Factor (PF) Per Phase & Average, Apparent Power (KVA), Reactive Power (KVAr), Frequency (F) |
Input Voltage (AC) |
(L-L) : 35-520 V AC, (L-N) : 20-300 V AC |
Secondary Current |
10 mA to 5 A |
Warm up Time |
5 Minutes |
Key |
PRG , VAF , P , E |
PT Primary |
100 V to 520 KV |
Output Voltage |
24 V DC |
