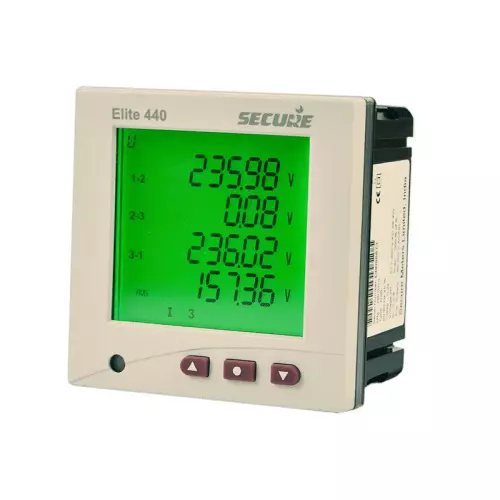

| Type of Product | Multi-Function Meter |
| Model No | Elite 440-445 |
| Accuracy Class | 0.2S, 0.5S, 1.0 |
| Auxiliary Power Supply | 80 – 300 V AC/DC or 24 – 60 V DC (variant dependent) |
120 months warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Multi-Function Meter |
Model No |
Elite 440-445 |
Accuracy Class |
0.2S, 0.5S, 1.0 |
Auxiliary Power Supply |
80 – 300 V AC/DC or 24 – 60 V DC (variant dependent) |
Operating Temperature |
-20°C to +60°C |
Storage Temperature |
-25°C to +80°C |
Dimension |
96 × 96 × 65 mm (without module); 96 × 96 × 110 mm (with module); Cut-out size: 92 × 92 mm |
Frequency |
50 / 60 Hz with ±5% |
Weight |
Approx. 500 g |
Humidity |
Up to 95% RH, non-condensing |
Terminal Type |
Combicon connector |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
SunAP Ecopower Private Limited |
Communication Interface |
RS485 Modbus, half duplex (default); data in IEEE 754 floating-point format |
CT Primary |
Field configurable through keypad |
Warranty Duration |
120 months |
Insulation |
4 kV RMS, 50 Hz for 1 minute |
Short Time Over Current |
20 × Imax for 1 sec; 10 × Imax for 3 sec; 7 × Imax for 10 sec |
Maximum Conductor Size |
2.5 mm² |
Impulse Withstand Voltage |
6 kV |
Pulse Output |
Normally open; 230 V AC @ 100 mA or 48 V DC @ 100 mA; pulse width: 80 ms or 240 ms |
Burden |
Aux: 3.5 VA (8 VA with all modules); Current circuit: 0.05 VA/phase @ 1 A, 0.25 VA/phase @ 5 A; Voltage circuit: 0.15 VA/phase |
Pulse Input |
8–40 V DC; pulse duration: 5 ms (Input 1), 40 ms (Input 2) |
Connection Type |
Common product for HT3 / HT4 / LT4 applications |
Analogue Outputs |
4 × non-isolated 4–20 mA outputs; loop impedance 750 O; auxiliary supply 20–40 V DC @ 100 mA |
Current Range |
1–2 A and 5–10 A available in a single variant (field configurable) |
Digital Pulse I/O |
2 digital pulse inputs & outputs (single module) |
Standards Compliance |
IS 13779, IS 14697, IEC 62052-11, IEC 62053-21, IEC 62053-23, IEC 62053-22, IEC 61010, IEC 62053-31 |
Baud Rate |
1200 – 38400 bps (default 9600 bps) |
Ingress Protection |
IP54 (front fascia); IP20 (terminals) |
Ethernet Interface |
10/100 Base-T for Modbus TCP/IP communication |
Load Survey |
40 days for 6 parameters @ 30-minute integration; optional 15 or 60-minute intervals |
measurement Voltage |
57.7 V (100 V) – 240 V (415 V) AC, 3 Phase 4 Wire / 3 Phase 3 Wire; Tolerance: -30% to +20% of V |
Enclosure Material |
FRPC |
