| Type of Product | Multi-Function Panel Meter |

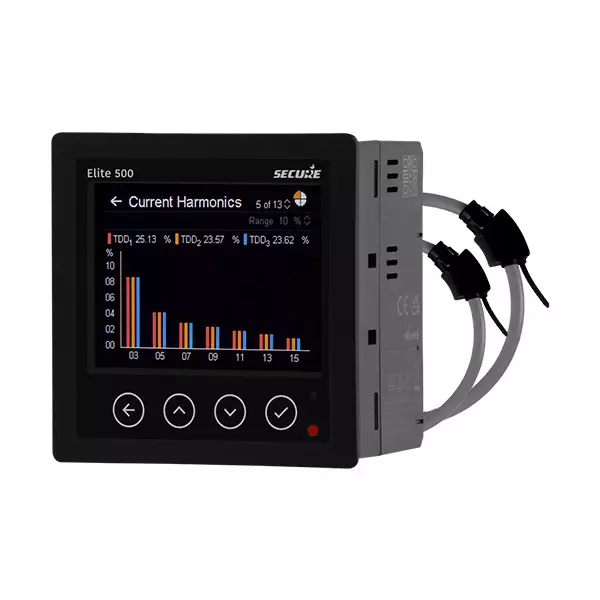

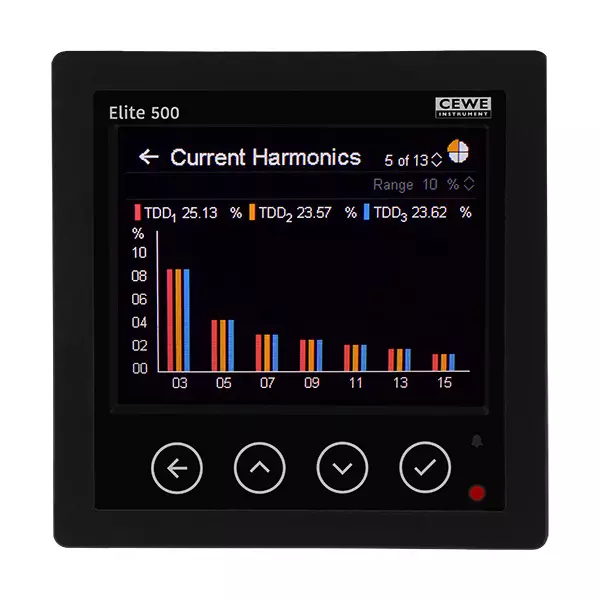

| Model No | Elite 500 |
| Power Supply | 48–300 V DC / 85–300 V AC |
| Operating Temperature | -10°C to +60°C |
120 months warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Multi-Function Panel Meter |
Model No |
Elite 500 |
Power Supply |
48–300 V DC / 85–300 V AC |
Operating Temperature |
-10°C to +60°C |
Storage Temperature |
-25°C to +70°C |
Features |
8 TOU tariffs, 8 seasons, 8 day types, DST, 6 billing history, 90-day daily snapshots, alarms & event logs |
Dimension |
96 × 96 × 57.6 mm (±0.5 mm); 96 × 96 × 111.5 mm (±0.5 mm) with module |
Frequency |
50 / 60 Hz |
Power Consumption |
Base: <3 W, <6.5 VA @ 240 V AC; With modules: <6.5 W, <16 VA |
Display Resolution |
320 × 240 pixels |
Sampling Rate |
156 samples / cycle / channel |
Weight |
365 g |
Accuracy |
Class 0.5S |
Display Type |
3.5 inch (88.9 mm) TFT graphical display |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
SunAP Ecopower Private Limited |
Battery |
RTC backup battery |
Warranty Duration |
120 months |
Overload |
1.5 × Ib, up to 7.5 A (measurement only) |
Insulation |
3.5 kV RMS, 50 Hz for 5 seconds |
Display Size |
53 × 70 mm (H × W), pixel size 0.22 mm² |
Short Time Over Current |
20 × Imax for 1 second |
Impulse Withstand Voltage |
6.4 kV |
Pulse Output |
24–230 V DC or 48–230 V AC @ 100 mA, volt-free |
Burden |
Current circuit: < 0.2 VA/phase @ 1A & 5A; Voltage circuit: < 0.2 VA/phase |
Pulse Input |
24–60 V AC/DC @ 100 mA |
Connection Type |
LV 3P4W / HV 3P4W / 1CT 3PT / LV 3CT / HV 3P3W / 3CT 2PT / 2CT 2PT / 1P 2W |
Analogue Outputs |
4 configurable AO, 0–20 mA / 4–20 mA (self-powered) |
Standards Compliance |
IEC 62052-11, IEC 62053-22, IEC 62053-24, IEC 61557-12, IEC 62053-31, IEC 60529, IEC 61010-1, IEC 61010-2-030, IEC 61326-1, IS 14697, CE, UKCA, IEC 61850-6/7-1/7-2/7-3/7-4/8-1 (Edition 1 & 2) |
Baud Rate |
1200–38400 bps, parity: none / even / odd |
Ingress Protection |
IP54 (front fascia), IP20 (terminals), IP65 with gasket (optional) |
measurement Voltage |
35 V to 500 V (L-L) max, 20 V to 300 V (L-N) max |
Indicator |
2 LEDs – Metrology (red), Alarm/Event (amber) |
Software |
Dual data loggers (16 MB): Primary—up to 20 energy channels, 5–60 min intervals, ~12,500 parameter-days; Secondary—up to 20 instantaneous values, 1–30 min intervals, ~40,000 parameter-days |
Frequency Accuracy |
±0.05 Hz |
Starting Current |
1 mA |
Maximum Withstand Voltage |
2 × nominal voltage for 1 second, repeated 10 times at 10-second intervals |
Active Energy Accuracy |
Class 0.2S / Class 0.5S |
Optional Communication |
Modbus TCP/IP, Modbus Gateway, BACnet IP, ProfiNET, IEC 61850 |
Time Synchronization |
SNTP protocol or pulse input |
Maximum Withstand Current |
1.2 × Ib continuously |
Pulse Width |
20–300 ms (50 Hz), 16–300 ms (60 Hz) |
Software Support |
Configview; optional eWatch 100 / eWatch Online |
Power Factor Accuracy |
±0.005 (0.5 lag to 0.5 lead) |
Ethernet Port Rate |
RJ-45, 10/100 Mbps, SNTP time synchronization |
Temperature coefficient |
0.02% / °C |
Communication Protocol |
Modbus RTU |
Connector Type |
Ring type (current), Combicon (voltage, aux & Modbus RTU) |
Alarm Output |
3 × volt-free, 230 V AC / 30 V DC @ 2 A |
Power Accuracy |
±0.2% of measurement range |
Measurement Current |
10 mA – 6 A (configurable) |
Input Output |
2 configurable pulse I/O, 1 fixed pulse output, 1 alarm output |
