Ships within 25 days
View
View
View
View
| Material | High Carbon Steel |
| Type | Without inner ring |
| Country of Origin | Japan |

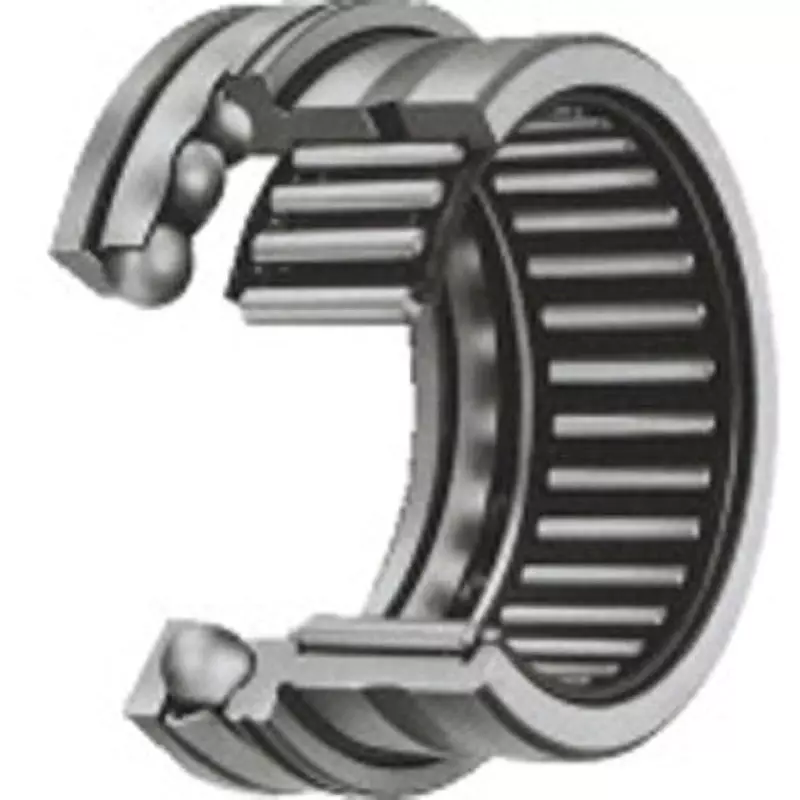

| Type of Product | Needle Bearing With Thrust Ball Bearing Nax |
Material |
High Carbon Steel |
Type |
Without inner ring |
Country of Origin |
Japan |
Type of Product |
Needle Bearing With Thrust Ball Bearing Nax |
Model No |
NAX5035 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Race ring shape |
Needle Roller Bearing |
Monotaro ID |
38312775 |
Inscribed Circle Diameter Fw (Φmm) |
50 |
Import Country |
Direct Import from Japan |
JIS grade |
0 |
Mass (g) |
287 |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Basic Dynamic Load Rating (N) |
(Radial) 42200 (Axial) 28800 |
Cover |
Without dust cover |
Basic Static Load Rating (N) |
(Radial) 83400 (Axial) 60100 |
Outer Diameter D (Φmm) |
62 |
Allowable Rotation Speed (min-1 [rpm]) |
4500 |

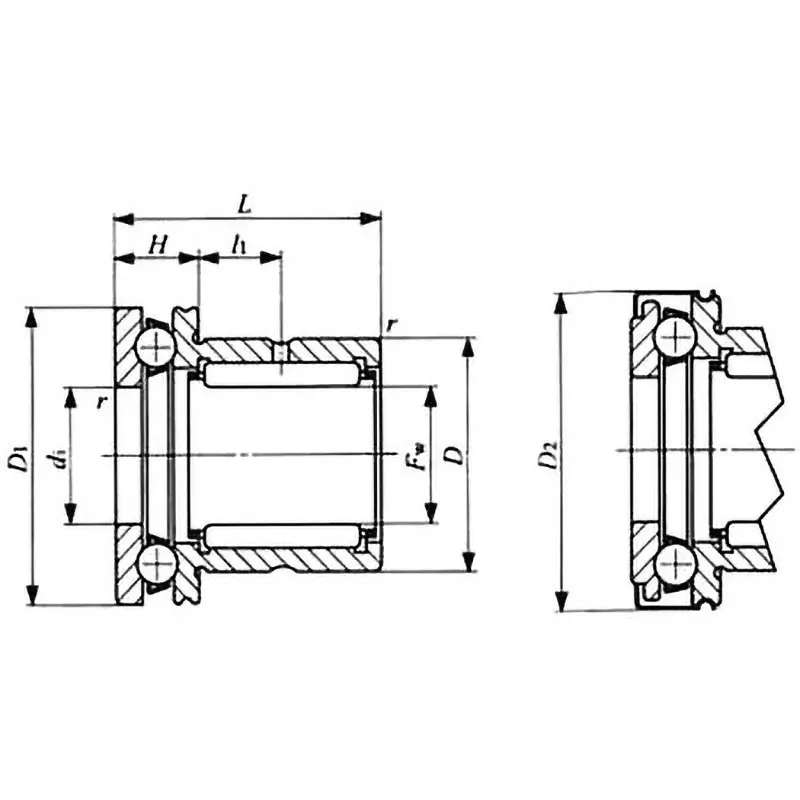

Dimension L (mm) |
35 |
Dimensions H (mm) |
14 |
Dimension d1 (Φmm) |
70 |
