| Material | High Carbon Steel |
| Country of Origin | Japan |
| Type of Product | Needle Bearing With Three-Point Contact Ball Bearing Natb |
| Model No | NATB5902 |
Material |
High Carbon Steel |
Country of Origin |
Japan |
Type of Product |
Needle Bearing With Three-Point Contact Ball Bearing Natb |
Model No |
NATB5902 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Load direction |
Radial |
Race ring shape |
Needle Roller Bearing |
Monotaro ID |
38313667 |

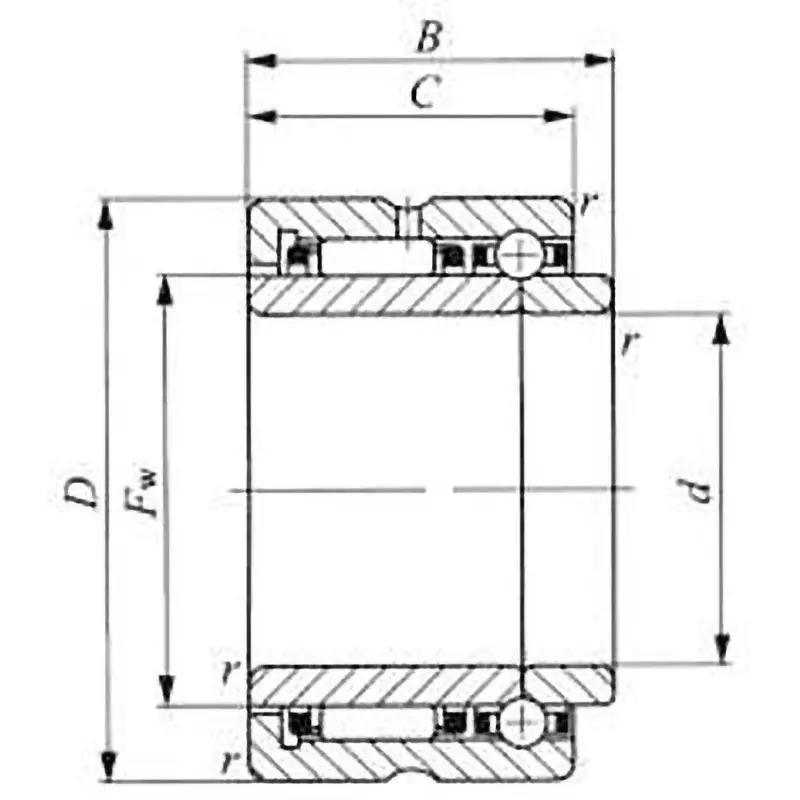

Inscribed Circle Diameter Fw (Φmm) |
20 |
Import Country |
Direct Import from Japan |
Outer ring type |
Flat |
JIS grade |
0 |
Shield Shape |
Open type |
Mass (g) |
53 |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Basic Dynamic Load Rating (N) |
(Radial) 7710 (Axial) 1900 |
Basic Static Load Rating (N) |
(Radial) 10200 (Axial) 2920 |
Outer Diameter D (Φmm) |
28 |
Allowable Rotation Speed (min-1 [rpm]) |
20000 |
Width B (mm) |
20 |
Inner Diameter (mm) |
15 |
Width C (mm) |
18 |
Dimension R |
0.3 mm |
