| Material | High Carbon Steel |
| Type | With inner ring |
| Country of Origin | Japan |
| Type of Product | Needle Bearing With Thrust Ball Bearing Naxi |
Material |
High Carbon Steel |
Type |
With inner ring |
Country of Origin |
Japan |
Type of Product |
Needle Bearing With Thrust Ball Bearing Naxi |
Model No |
NAXI2530 |
Inner ring |
LRT253020 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Race ring shape |
Needle Roller Bearing |
Monotaro ID |
38312976 |
Inscribed Circle Diameter Fw (Φmm) |
30 |
Import Country |
Direct Import from Japan |
JIS grade |
0 |
Mass (g) |
179 |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Basic Dynamic Load Rating (N) |
(Radial) 25100 (Axial) 20400 |
Cover |
Without dust cover |
Basic Static Load Rating (N) |
(Radial) 40100 (Axial) 33600 |

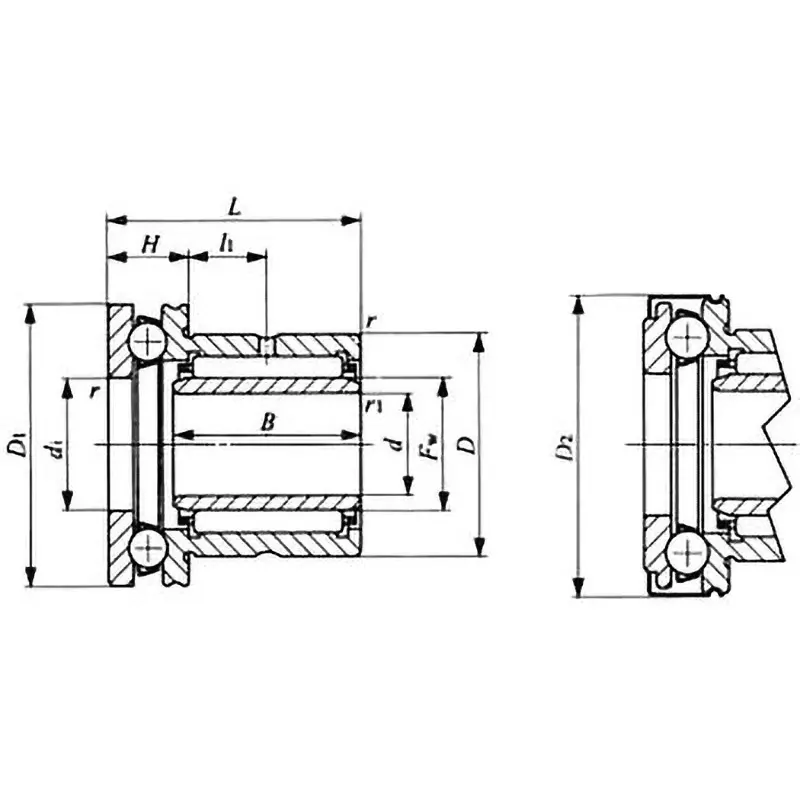

Outer Diameter D (Φmm) |
42 |
Allowable Rotation Speed (min-1 [rpm]) |
6500 |
Dimension L (mm) |
30 |
Dimensions H (mm) |
11 |
Dimension d1 (Φmm) |
47 |
Width B (mm) |
20.5 |
Inner Diameter (mm) |
25 |
